Profile CNC Machining Centre CNC Copy Router for Steel profile

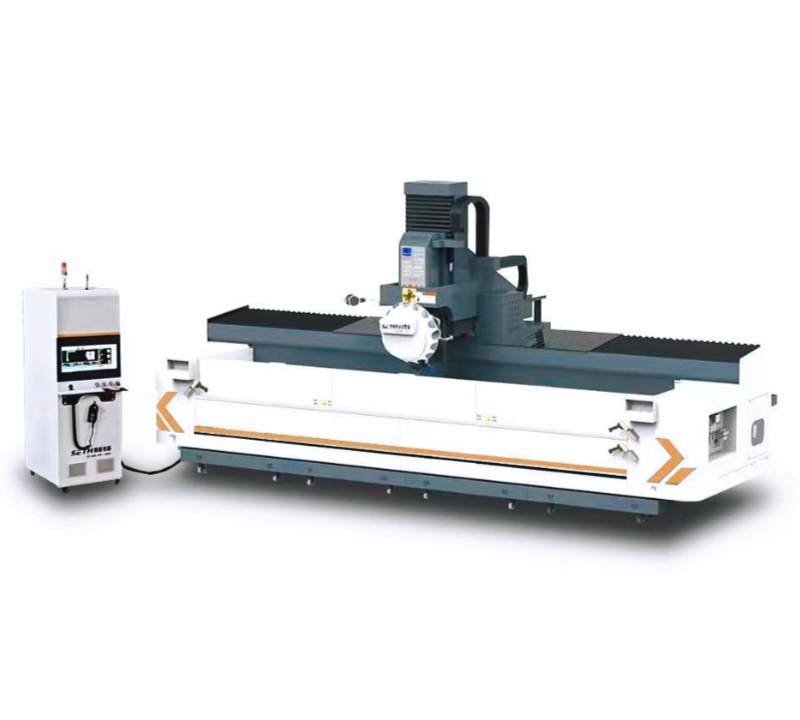

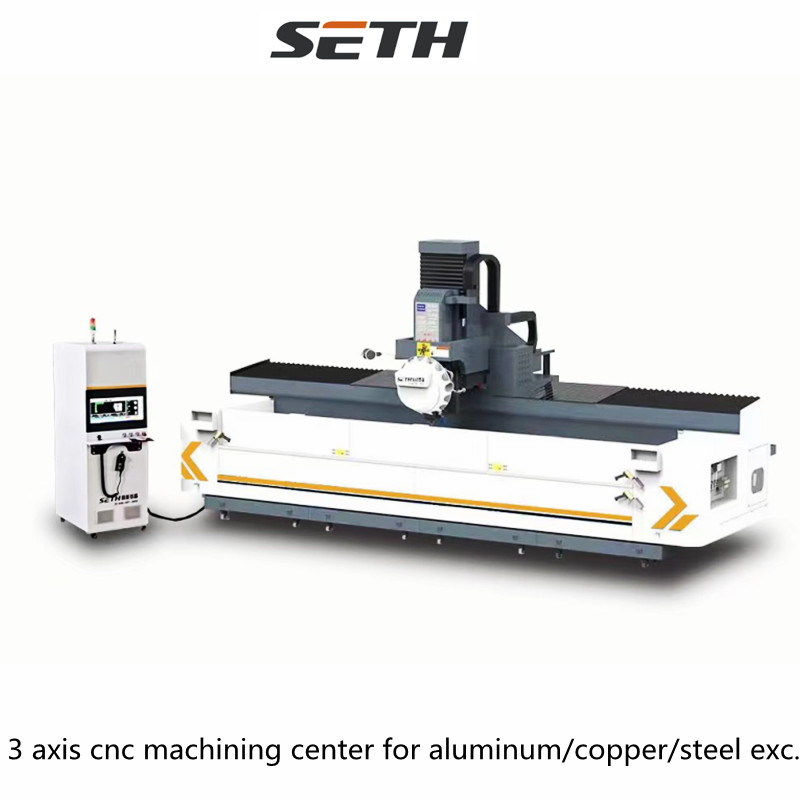

• 3-Axis 6500 Profile Machine with FANUC System

• This CNC profile machining center integrates drilling, tapping, milling, and chamfering capabilities.




• Equipped with the FANUC Oi-MF system, it delivers high-speed, high-precision machining capabilities.

• A dedicated chip collection system ensures user-friendly operation and maintains a clean working environment. Suitable for processing lightweight aluminum frames, copper frames, and non-metallic frames, it offers flexible customization options to meet diverse client specifications.




• Technical Parameters:

• | Parameter Category | Specific Value |

• | 3-Axis Travel | 6500x500x500mm|

• | Table Dimensions | 6500x450mm|

• | Spindle Speed | 12000rpm|

• | Spindle Power | 7.5/11kw|

• | Spindle Taper | BT40|

• | Tool Magazine Capacity | 24 tools |

• | Overall Dimensions | 7500x2750x2600mm|

• STANDARD XMT - 6500x650

• Product Description: This machine is a moving column CNC milling machine equipped with the Fanuc Oi-MF system. The moving column design allows the column to drive the spindle and tool along the X-axis, while the worktable handles Y and Z-axis movements. Compared to fixed-column models, it can process larger and longer workpieces with superior stability and rigidity. It enables multiple operations—such as drilling, tapping, and milling—to be completed in a single setup, significantly boosting machining efficiency. The cast iron bed further enhances operational stability.

• Technical Specifications:

• | Parameter Category | Specific Value |

• | ---- | ---- |

• | Table Dimensions | 6520x650mm |

• | Maximum Table Load Capacity | 1600kg/m² |

• | Three-Axis Travel (X/Y/Z) | 6500mm/650mm/700mm |

• | Spindle Power (Rated / Max) | 13kW / 27kW |

• | Spindle Speed | Max 10000rpm |

• | Spindle Taper | BT40 |

• | Tool Magazine Type & Capacity | Disk-type, 24 tools |

• | Tool Change Time | 2 seconds |

• | Rapid traverse speed (X/Y/Z) | 60m/min, 28m/min, 28m/min |

• | Cutting feed rate | 15m/min |

• | Positioning Accuracy (X/Y/Z) | 0.01mm |

• | Machine Weight | 17000kg |

• | Overall Dimensions | 10900x3200mm |

• | Lubrication & Cooling System | Automatic lubrication, water-cooled |

•


High-Speed Operation and Rapid Tool Change: Rapid traverse speeds reach up to 60 m/min (X-axis) and 28 m/min (Y/Z-axes), with cutting feed rates of 15 m/min. Paired with a 24-tool disc magazine (tool change time as low as 2 seconds), this significantly reduces non-cutting time, making it particularly suitable for batch production scenarios.

High Automation Adaptability: Supports integration with loading/unloading robots, conveyor lines, and chip removal systems to build semi-automated/fully automated production lines. This reduces manual intervention, lowers labor costs, and minimizes scrap rates caused by human operational errors.

IV. User-Friendly Operation & Maintenance: Lowering Barriers to Use, Minimizing Downtime Losses

Intuitive Operation, Quick Mastery: Equipped with visual CNC systems like FANUC and a large touchscreen, it supports graphical programming and parameter settings. Operators can complete machining by importing drawings or calling preset programs without complex programming knowledge. Features like fault alarms and parameter backup facilitate rapid troubleshooting.

Low Maintenance Costs, Minimal Downtime:

Core components (spindle, guideways, ball screws) feature extended design lifespans with clear maintenance schedules. Routine upkeep involves simple cleaning, lubrication, and tightening, ensuring low maintenance complexity.

Comprehensive after-sales support (e.g., FANUC's 24-hour response, ample spare parts supply) combined with dedicated manufacturer maintenance services enables rapid fault resolution, minimizing production losses from equipment downtime.

V. High Cost-Effectiveness: Balancing Output and Investment for Diverse Applications

Compared to 4-axis/5-axis profile machines, the 3-axis 6500 model offers lower acquisition costs while covering over 80% of standard profile machining needs (e.g., linear processing, planar hole drilling, simple slot milling), eliminating redundant feature costs.

For small-to-medium batch manufacturers, its efficient processing capabilities enable rapid return on investment. For high-volume producers, linked operation or automation upgrades further boost output, delivering significant cost-effectiveness.

In summary, the core competitiveness of the 3-axis 6500 profile machine lies in its “long-material adaptability + high precision + high efficiency + low entry barrier.” It not only meets the standard profile machining needs of industries like construction, furniture, and machinery but also handles certain precision profile processing scenarios. This makes it a versatile and cost-effective core equipment for profile machining.
