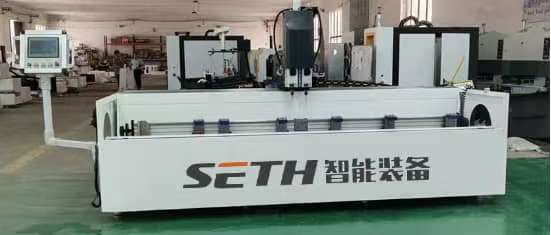

Aluminum Profile CNC Drilling and Milling Machine Introduction
In the field of aluminum profile processing, the Aluminum Profile CNC Drilling and Milling Machine stands out as a highly efficient and precise equipment. It integrates drilling and milling functions, bringing a new level of automation and accuracy to the processing of aluminum profiles, and is widely favored by manufacturing enterprises.
1. Functions
1.1 Multi - functional Drilling
This machine is capable of performing various drilling operations. It can drill holes of different diameters, from small - sized holes with a diameter of just a few millimeters to relatively large - sized holes. Thanks to the advanced CNC system, the drilling position can be accurately controlled. Whether it is a single hole or a group of holes arranged in a regular pattern, the machine can complete the drilling work with high precision. Moreover, it can also handle special drilling requirements such as countersinking and counterboring, meeting the diverse needs of different workpieces.
1.2 Efficient Milling
The milling function of the Aluminum Profile CNC Drilling and Milling Machine is equally impressive. It can carry out plane milling, contour milling and groove milling on aluminum profiles. For plane milling, it can make the surface of the aluminum profile smooth and flat with high flatness. In contour milling, it can accurately mill out complex shapes according to the preset patterns, which is very important for the production of special - shaped aluminum profile parts. When it comes to groove milling, it can mill grooves of different widths, depths and shapes, ensuring that the grooves meet the design requirements. 1.3 Automatic Processing
Equipped with a powerful CNC system, the machine can realize automatic processing. Operators only need to input the processing program into the system according to the processing requirements of the aluminum profile. The system will then control the movement of the machine tool, the rotation of the spindle and the feeding of the tool automatically. During the processing, the machine can automatically switch tools, which saves the time of manual tool change and improves the processing efficiency. In addition, it can also automatically detect the processing status. If there is an abnormal situation, it will send an alarm in time to ensure the safety of the processing process.
1.4 High - precision Positioning
The machine adopts high - precision guide rails and ball screws, which can ensure the accuracy of the movement of the worktable and the spindle. The positioning accuracy can reach within ±0.01mm, and the repeat positioning accuracy is also very high. This high - precision positioning ability enables the machine to process aluminum profiles with strict size requirements, ensuring that each processed part has consistent quality.
2. Parameters
2.1 Processing Range
Maximum Processing Length: Generally, it can process aluminum profiles with a length of up to 6000mm, and some models can even reach 8000mm, which can meet the processing needs of most long aluminum profiles.
2.2 Spindle - related Parameters
2.3 Tool Magazine Capacity
The tool magazine is an important part of the machine. Its capacity varies according to different models, generally ranging from 8 to 24 tools. A sufficient number of tools in the tool magazine allows the machine to complete multiple processing procedures continuously without frequent manual tool changes, greatly improving the processing efficiency.
2.4 Positioning Accuracy
As mentioned earlier, the positioning accuracy of the machine is very high. The X, Y and Z axes all have excellent positioning performance. The positioning accuracy of each axis is usually within ±0.01mm, and the repeat positioning accuracy is within ±0.005mm, which provides a strong guarantee for high - precision processing.
3. Applications
3.1 Construction Industry
In the construction industry, aluminum profiles are widely used in the production of curtain walls, doors and windows, and handrails. The Aluminum Profile CNC Drilling and Milling Machine can process the connection holes, installation grooves and other structures on these aluminum profiles. For example, when processing curtain wall aluminum profiles, it can accurately drill the holes used to fix the curtain wall panels, ensuring the stability and safety of the curtain wall installation.
3.2 Transportation Industry
In the transportation industry, especially in the production of automobiles and rail transit vehicles, aluminum profiles are used in a large number of components. The machine can process the aluminum profile parts such as car frames and interior brackets. It can mill the mounting surfaces and drill the fixing holes of these parts, ensuring that they can be accurately assembled with other components, improving the overall performance and safety of the vehicles.
3.3 Machinery Manufacturing Industry
In the machinery manufacturing industry, aluminum profiles are often used to make machine frames, protective covers and other parts. The Aluminum Profile CNC Drilling and Milling Machine can process these parts with high precision. It can mill the guide rail surfaces on the machine frames to ensure the smooth movement of the machine components, and drill the holes for installing various accessories, meeting the functional requirements of the machinery.
