CNC Industrial Aluminum Profile Drilling Milling Machine

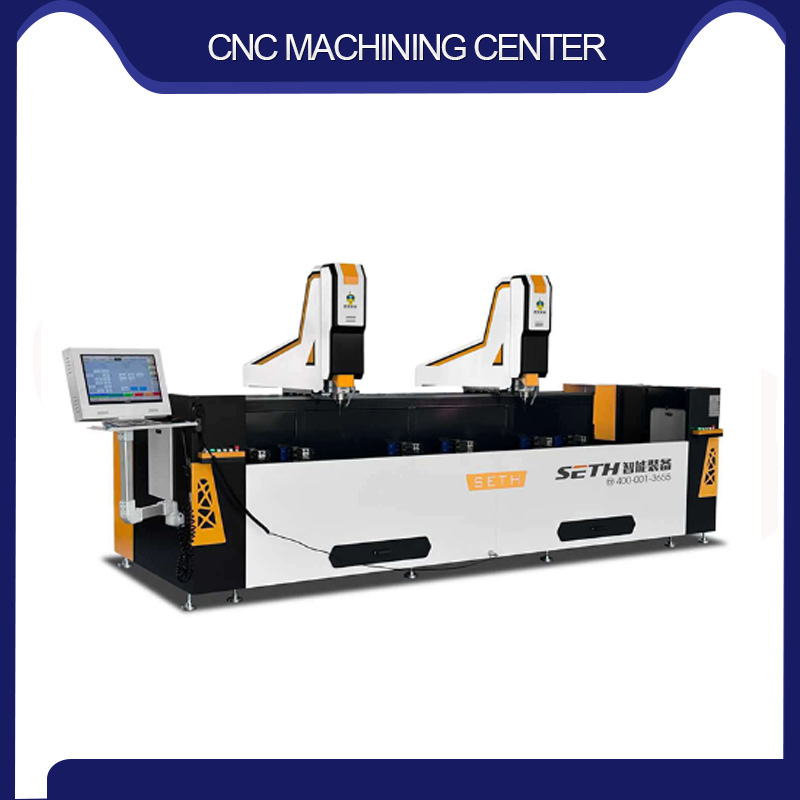

CNC Industrial Aluminum Profile Drilling Milling Machine SKX3+2-CNC-3000

☆CNC Industrial Aluminum Profile Drilling Milling Machine spindle adopts air-cooled spindle power 6.5 kw,

speed 0~18000 rpm, high precision, good safety and high reliability.

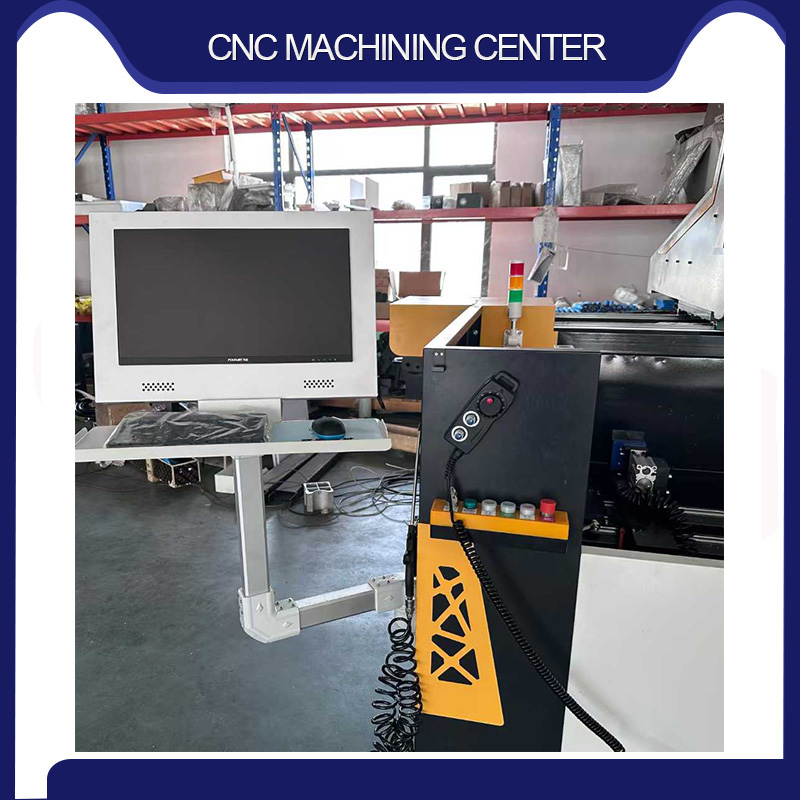

☆ adopt CNC numerical control system. Equipped with professional CAD-CAM programming software.

Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
☆ The motion pair adopts the imported guide rail, the slider, the X shaft adopts the high precision helical gear,

the helical tooth strip transmission, the Y shaft, the Z shaft adopts the high precision ball wire to carry the transmission.

Smooth transmission, effectively improve the flip accuracy of the whole machine.
☆ table 180 degrees. -90 degrees ~0 degrees ~+90 degrees, profile clamping can achieve three-sided processing

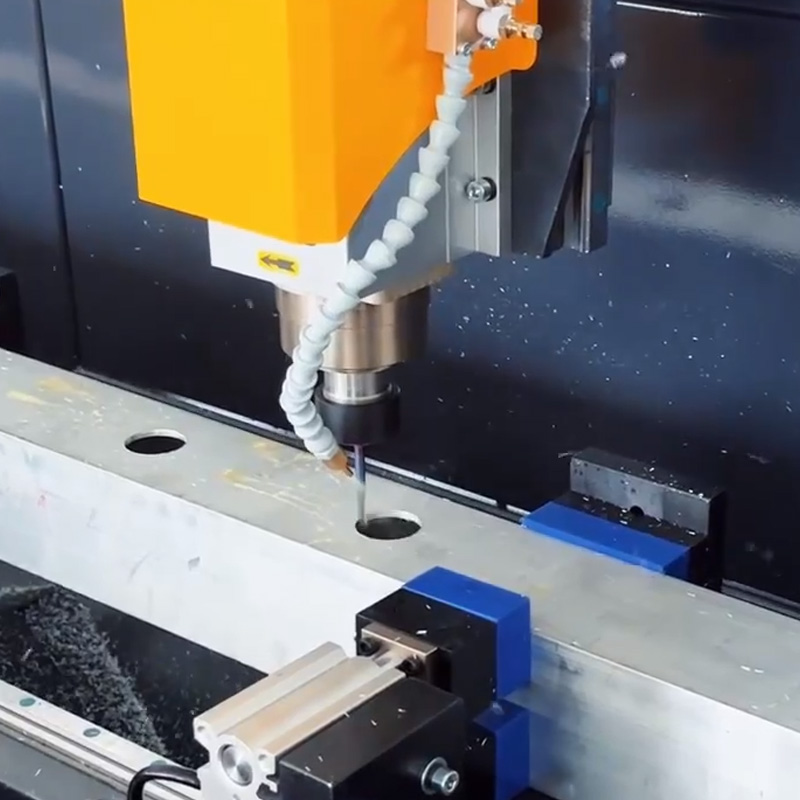

☆ processing deep hole (special hole), through the table flip to achieve deep hole processing,improve efficiency, good quality.
☆ manual pump oil supply system, tool system control spray cooling device.
☆ main electrical parts, circuit breakers, AC contactors are using French S chneider products.
☆ main parts of the machine tool adopt steel structure after aging treatment.

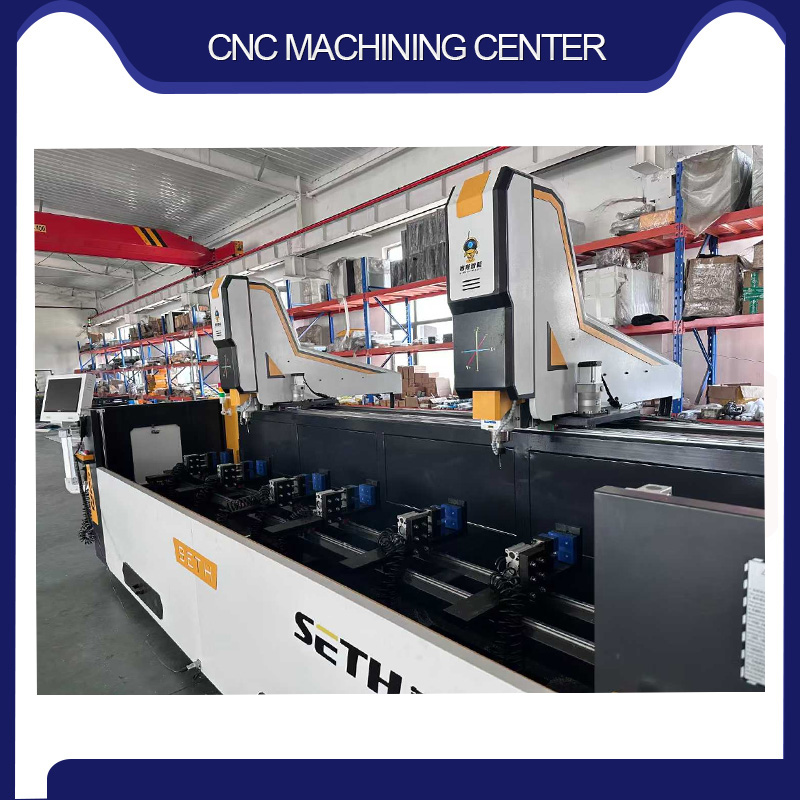

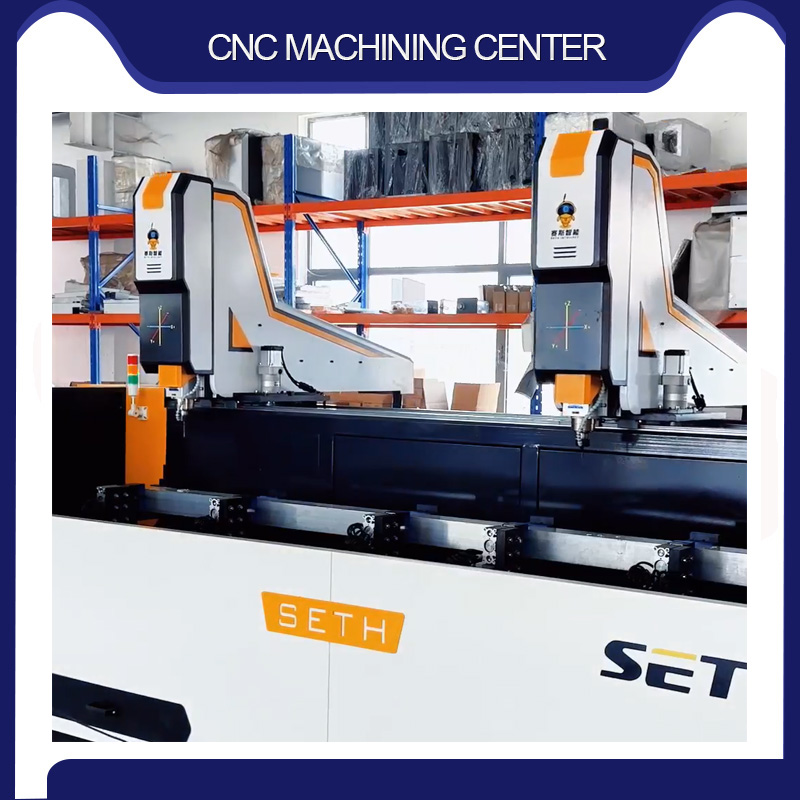

CNC Industrial Aluminum Profile Drilling Milling Machine Details

CNC Industrial Aluminum Profile Drilling Milling Machine Specification
