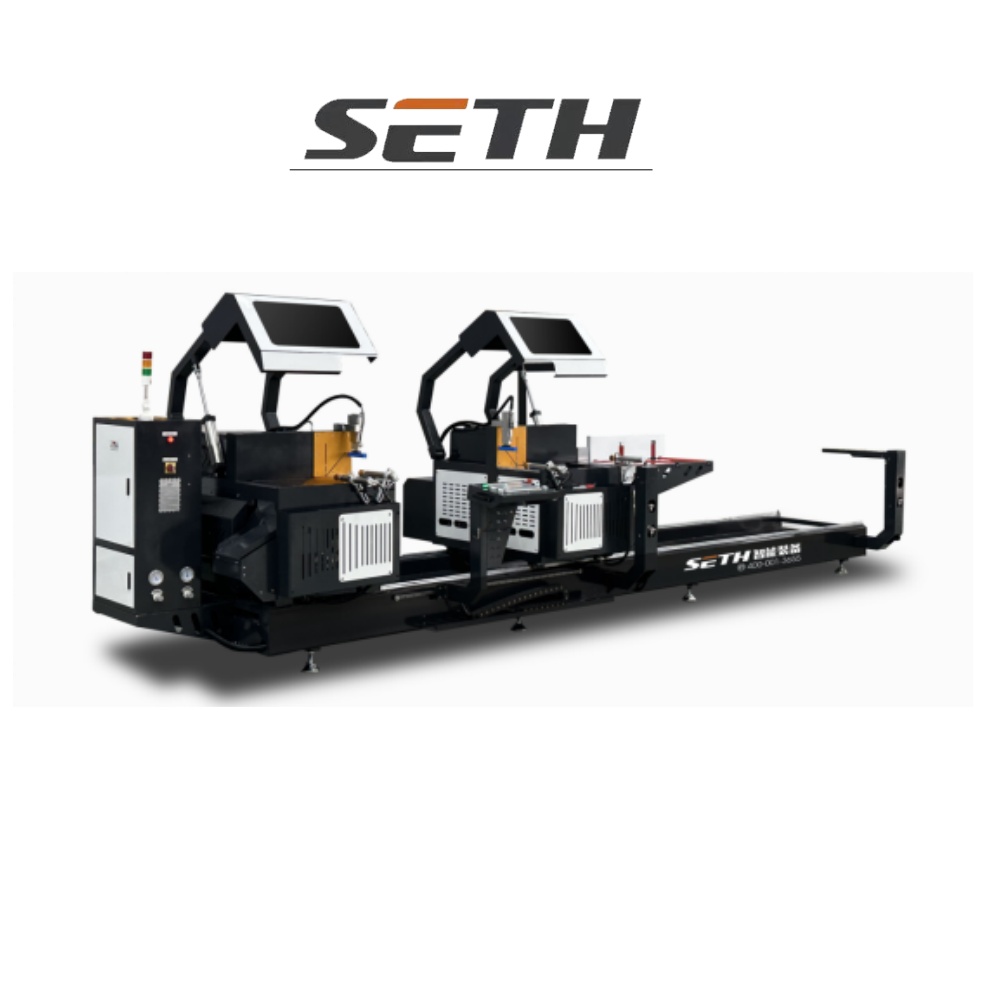

Aluminum cnc double mitre saw for window making

Aluminum CNC Double Mitre Saw for aluminum profile

Model: LJZ2-CNC-550*4300K

☆ Mainly used for the cutting of industrial aluminum profile curtain wall material, but also can be used for PVC and wood profile cutting.

☆ The machine adopts CNC technology, and can complete the automatic positioning cutting of different specifications and sizes of profiles.

☆ Select high quality aluminum alloy saw blade, the outer diameter can reach 550, high line speed, high processing accuracy.

☆ CNC transmission adopts high standard rack and gear, high transmission accuracy, accurate positioning, smooth operation.

☆ High precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the machining parts.

☆ The air-liquid damping cylinder realizes uniform feed speed and smooth motion.

☆ Use a micro spray cooling device.

☆ Automatic head rotation, two-way positioning, clamping, can work independently with a single head. Automatic opening and closing of the protective cover,make the operation safer.

☆ The saw blade is automatically set at 45° and 90° angles, and the protective cover is automatically opened and closed to make the operation safer.

☆ The saw blade is from the back to the front, which makes the profile cutting safer and more reliable, and the sawing height and width are very large.

☆ The absolute value servo upgrade memory function is not required to return to the reference when starting up.

☆ Built-in printer function, support usb disk import data function.
