aluminum cnc double head mitre saw suppliers

High-end aluminum profile digital display double-head precision cutting saw is used for cutting aluminum doors, Windows and curtain wall profiles.

Imported spindle motor directly connected saw blade, greatly reduce equipment vibration, improve stability.

45° and 90° cutting

Hydraulic damping cylinder to achieve uniform feed speed regulation, saw blade cutting uniform.

The machine tool has high motion precision and good stability, so that the precision of cutting components can be guaranteed.

Contact Now

Product Details

1. Suitable for cutting aluminum doors, Windows and curtain wall profiles;

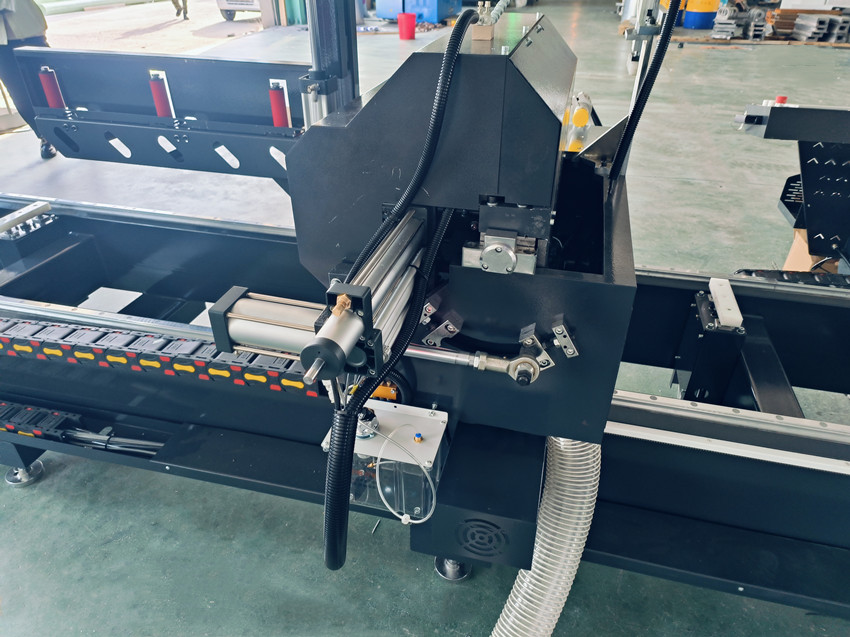

2. The right machine head feed adopts the movement mode of rack and pinion reducer, which has high transmission accuracy, fast speed, accurate positioning and stable work;

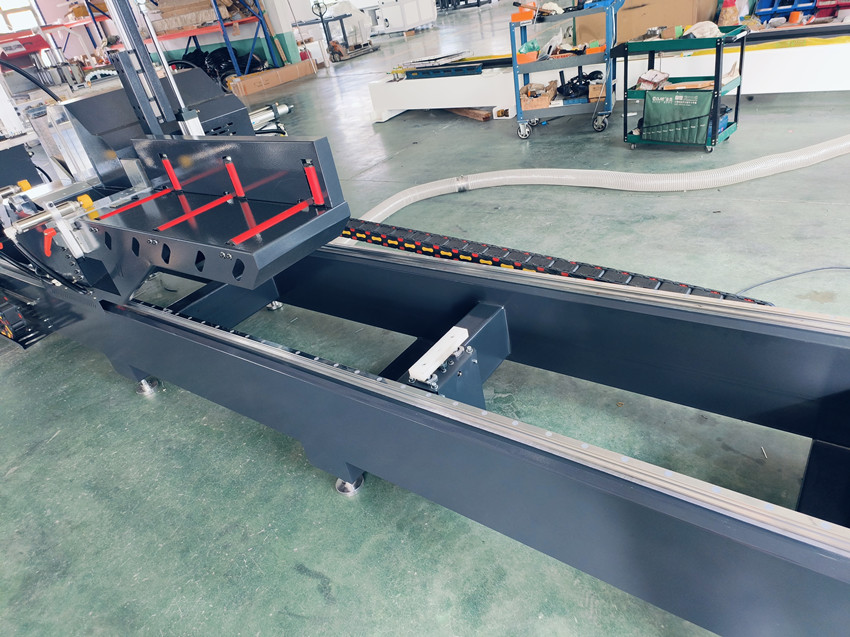

3. Equipped with middle and tail bracket to avoid cutting error caused by profile sag, the head is equipped with movable profile bracket;

4. The two saw heads can automatically convert the Angle to achieve the Angle cutting of 45° and 90° profiles;

5. High precision spindle motor straight saw blade, saw blade rotation is more stable;

6. The gas-liquid damping cylinder achieves uniform feed speed regulation, smooth movement, and automatic opening and closing protective cover makes the work safe and convenient;

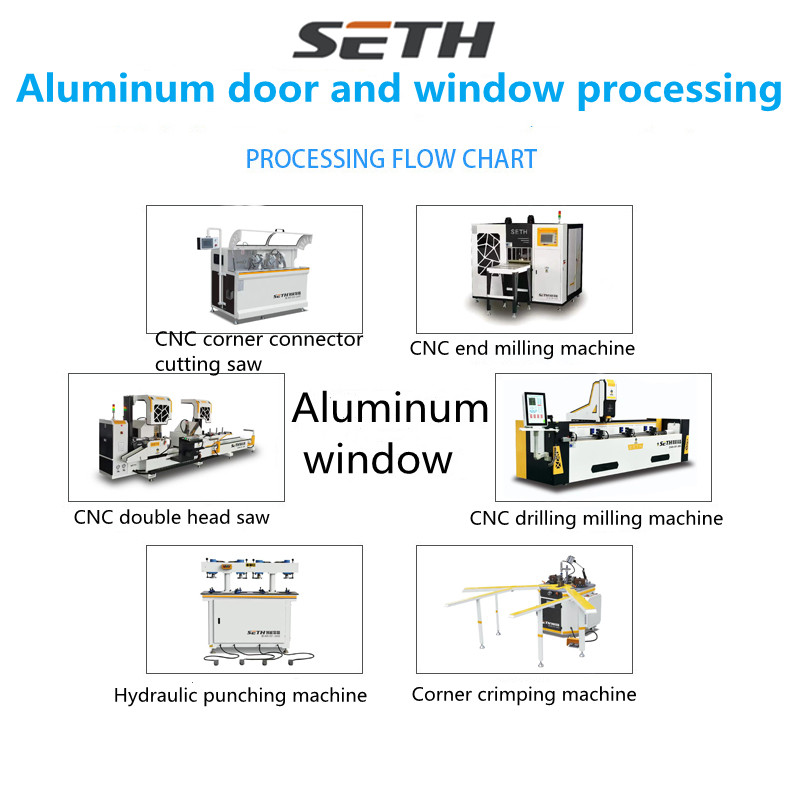

7. The integrated system can be connected to the door and window software, and the upper mechanism can determine the production plan - scan the code production and optimize the cutting order - enter the equipment processing process, and can be connected to the CNC saw milling machine and CNC face milling machine.

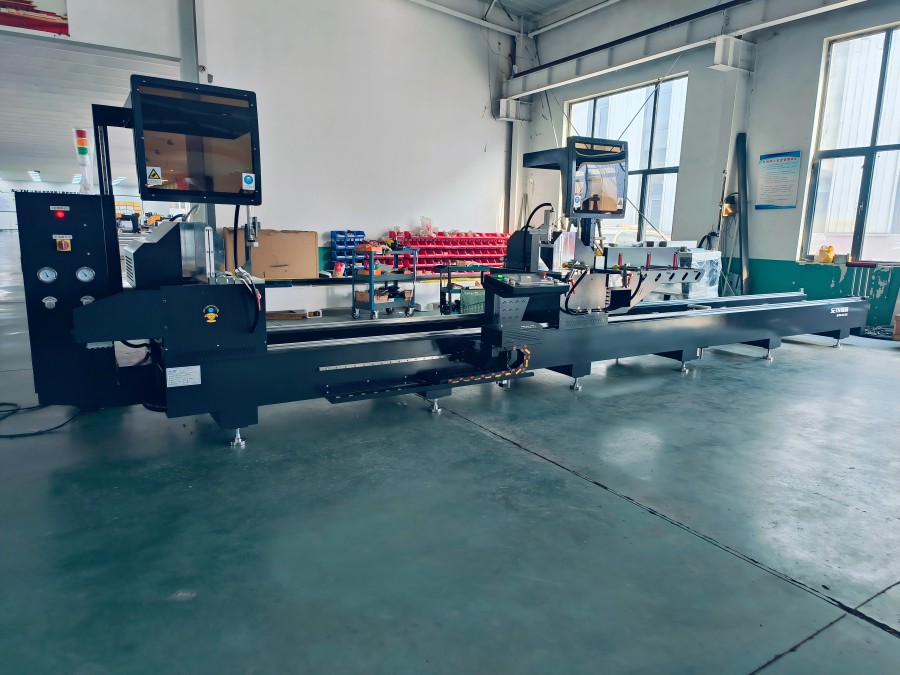

cnc double mitre saw.jpg
