wood processing machinery New high-speed four-axis CNC machining center

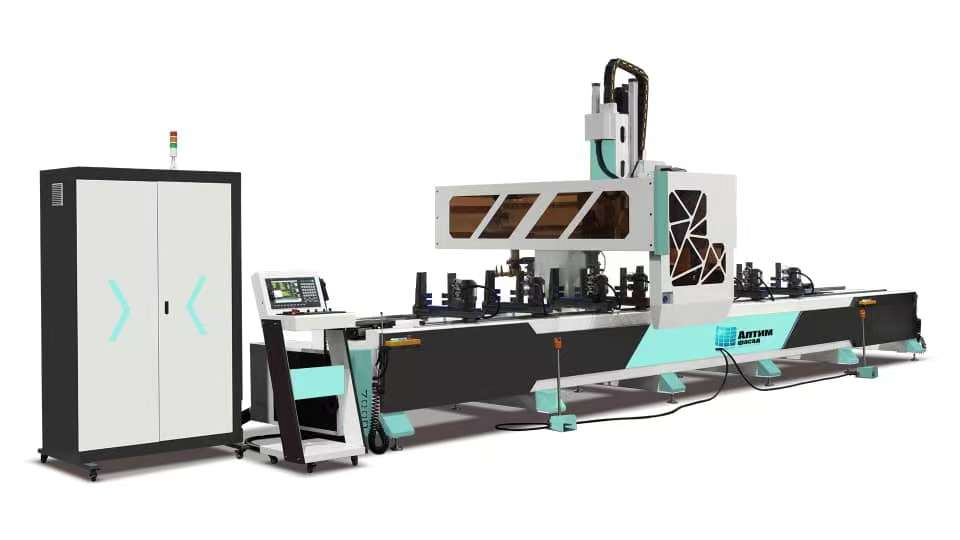

Name: 4 axis Gantry CNC Machining Center

Model: LGS-CNC-10000

Equipment features:

(1) It is suitable for the milling and carving of various holes and grooves of aluminum curtain wall and industrial aluminum profiles, combined with 3 D programming software, and the perfect realization of drilling and milling processing.

(2) (2) Using the original import control system, servo motor, with high quality ball screw, linear guide rail grinding teeth and high speed bearing and other institutions to ensure that the equipment has a high processing precision.

(3) The clamp position can automatically locate the processing area.

(4) Double bench can be two or two profiles at the same time, interactive feeding, without interference with each other.

(5) With 12 station tool library, with a pair of cutting plate, automatic tool change, self cutting processing

Contact Now

Product Details

(1) Using the high-speed electric spindle imported from Italy, it can complete the processing of any Angle in ± 90° , with high work efficiency.

(2) Frame: There is system of automatic lubrication of linear guides and ball screws.

(3) Spindle: Power 18+-. Water cooling. And definitely with an encoder that can cut the thread.

(4) add a coolant supply system to the cutting area.

(5) 12-station tool library, dual cutting inserts, automatic blade change, automatic processing.

(6) 10-Tool Clamping Station automatic move.

(7) The frequency converter should be 50% more powerful than the spindle, that's the minimum.

X-axis longitudinal itinerary / Продольный маршрут по оси X	10000mm
Y axis longitudinal itinerary / Продольный маршрут по оси Y	1300mm
Z axis longitudinal itinerary / Продольный маршрут по оси Z	550mm
X axis operation speed / Скорость работы по оси X	0-80m/min
Y axis operation speed / Скорость работы по оси Y	0-30m/min
Z axis operation speed / Скорость работы по оси Z	0-20m/min
main shaft speed / частота вращения главного вала	0-24000rpm
Spindle power / Мощность шпинделя	18.00KW water cooling spindle with Encoder

Spindle rotation range / Диапазон вращения шпинделя	-90°~0°~+90°
tool magazine / магазин для инструментов	12 t o o l s	Collects and tool holder HSK-F63
Tool maximum mounting length / Максимальная установочная длина инструмента	165mm
Total installed power / Общая установленная мощность	23KW
Clamp station / Зажимная станция	10
Processing size range / Диапазон обрабатываемых размеров	650 * 250 * 1 0 0 00mm (above) 435 * 250 * 1 0 0 00mm (side)
outline dimension / размер контура	1300023502550mm
Weight / вес	About 8 5 00.00 Kg
