CNC Double Head Cutting Mitre Saw LJZ2-CNC-550*4300
Our CNC double head cutting mitre saw numerical control technology and can complete automatic
positioning cutting of different sizes of profiles.
Selected high-quality aluminum carbide saw blade, outer diameter up to 500,high wire speed,
high processing accuracy.
CNC transmission adopts high standard rack and pinion, high transmission accuracy,accurate positioning,
stable work.
High precision spindle ensures stable rotation of saw blade and effectively improves surface quality
of workpiece.
Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
The use of micro spray cooling device.

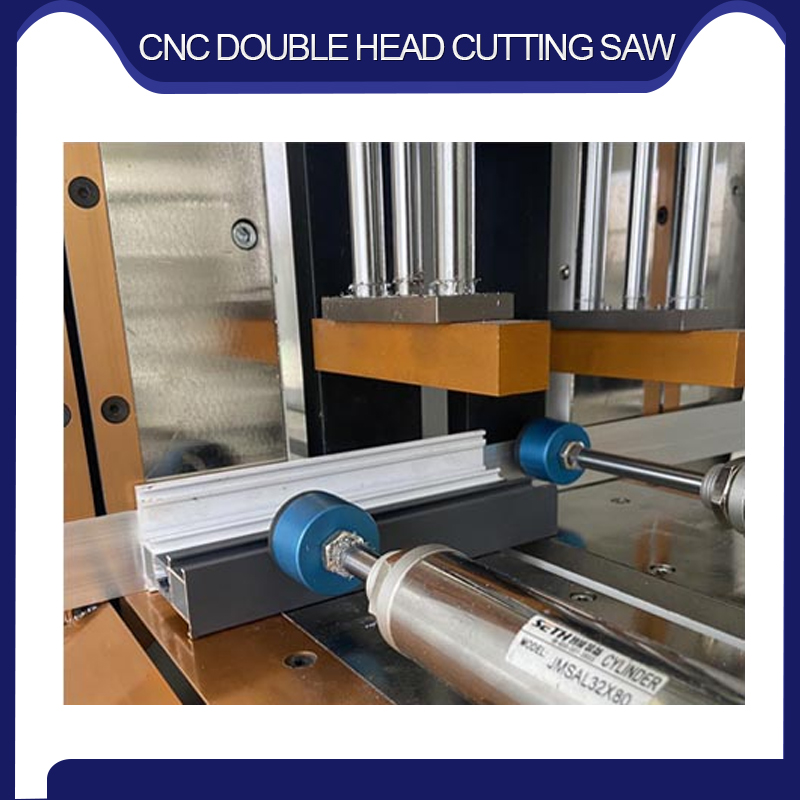

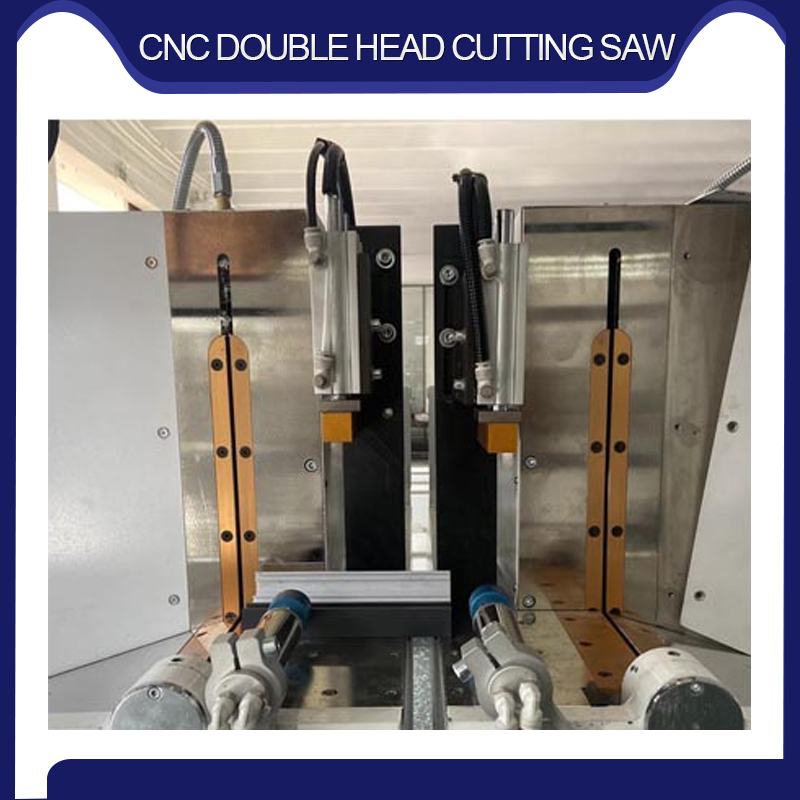

Automatic head rotation, bidirectional positioning, clamping,single head can work independently.
Automatic opening and closing protective cover make operation safer.

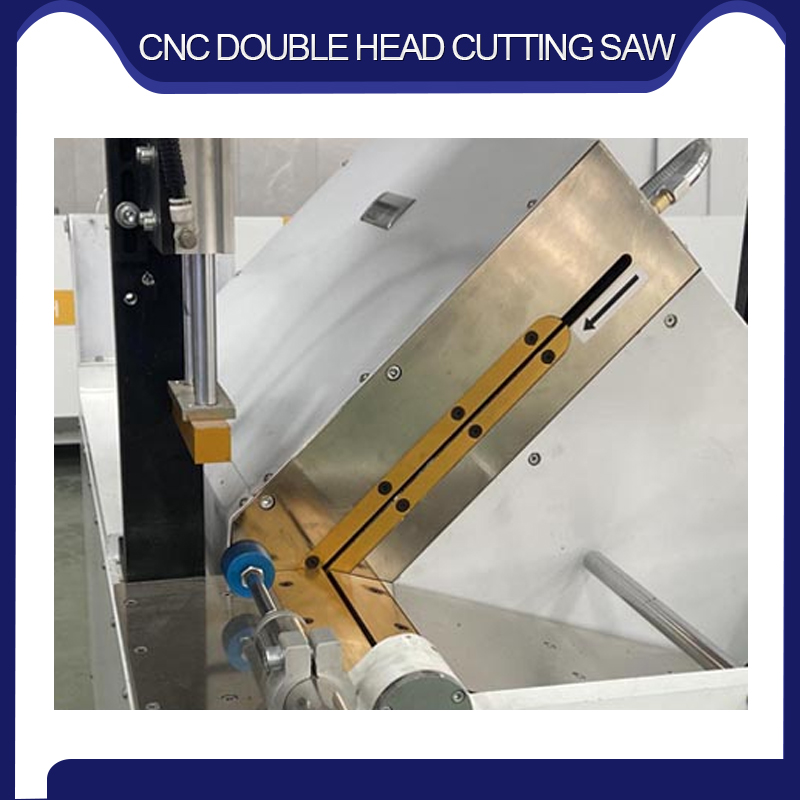

The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the
protective cover, so that the operation is safer.
Saw blade from back to front, saw cutting profile is more safe and reliable,and saw cutting height and
saw cutting width are very large.
Selection of high quality aluminum special carbide saw blade, outer diameter up to 550, high wire speed,
high processing precision.
CNC transmission adopts high standard rack and pinion, high transmission precision, accurate positioning,
smooth work.
The high precision spindle makes the saw blade rotate stably and effectively improve the surface
quality of the workpiece.
Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
Micro spray cooling device.
Head automatic rotation, bidirectional positioning, clamping, can work independently. Automatic opening
and closing shield,make the operation safer.
Saw blade automatically placed at 45° and 90° Angle, automatic opening and closing protective cover,
making the operation safer.
Saw blade from back to front, sawing profiles more safe and reliable, and sawing height and sawing
width are large.

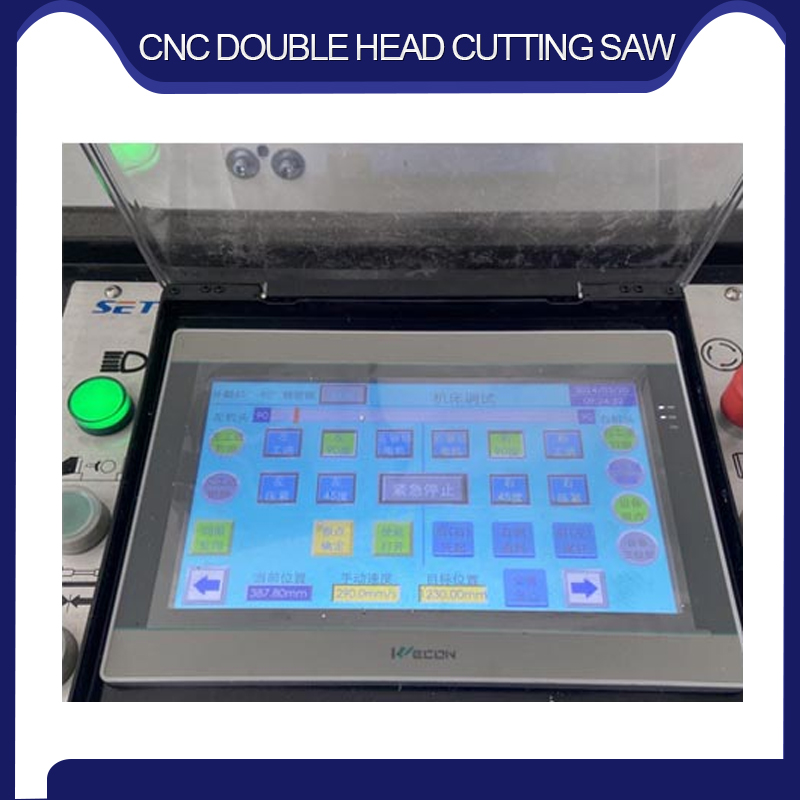

Absolute value servo upgrade memory function, boot without callback.

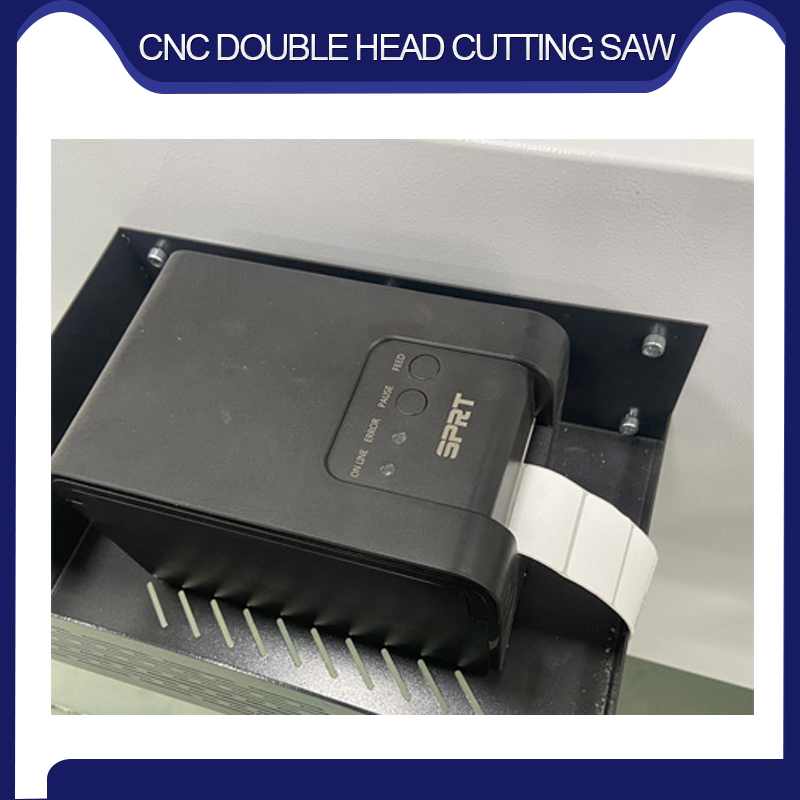

With printer function, support USB data import function.

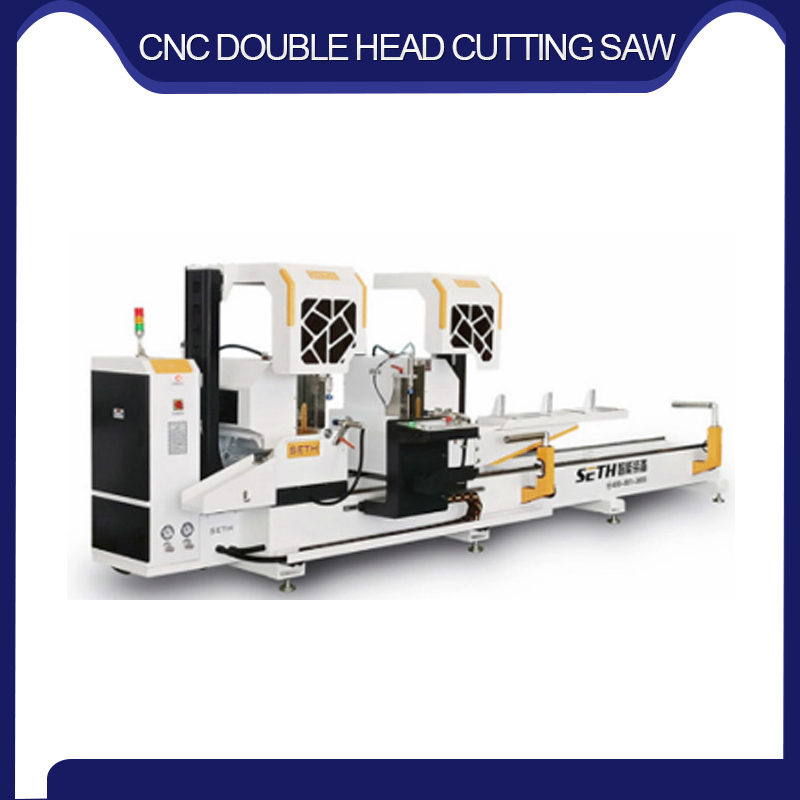

CNC Double Head Cutting Mitre Saw
CNC Double Head Cutting Mitre Saw Specification
| Power | 380V 50HZ |
| Saw head motor | 2×3KW/ 2840r/min |
| Working pressure | 0.6 ~ 0.8mpa |
| Air consumption | 60L/min |
| Saw length | Max4300mm MIN290mm |
| Saw width | Max 175mm |
| Maximum cutting slope | 45°175×245mm 90°175×280mm |
| Sawing Angle | 90°, 45° |
| Feed speed | stepless speed regulation 0-3m/min |
| Saw blade specifications | ø550 × ø30 × 4.4× Z120 |
| Dimensions | 5800×1800×1500 mm |
| Weight | 1900 kg |
| Repeat constant length accuracy | ≤ 0.05mm |
| Profile cutting Angle tolerance | ±3 ' |
| Cutting plane flatness | ≤ 0.1m |
| Roughness of cutting surface | Ra12.5μm |
CNC Double Head Cutting Mitre Saw Manufacturer
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door
machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different
clients, and can also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,
SGS,CE certifications,excellent product design and development engineers, skilled production engineers,
experienced production management team and after-sales service that providing you with a strong guarantee.
Except our aluminum CNC double head cutting saw machine,we also have products including aluminum&uPVC
profile machining center,cnc drilling milling machine,welding machine,corner cleaning machine,corner cutting
saw machine,corner crimping machine,punching machine&drilling machine.
Our CNC Double Head Cutting Mitre Saw Delivery
FAQ:
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company
in china.
Q: SETH's main products?
A: Aluminum &upvc window machines: CNC cutting center, double miter saw, end milling machine,CNC milling
machine, aluminum punching machine, end milling machine, welding machine,CNC copy router and corner connector
saw, etc;
Wood window machines: wood saw, wood window frame machine,vertical & horizontal drilling machine, dovtail making
machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy
USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
