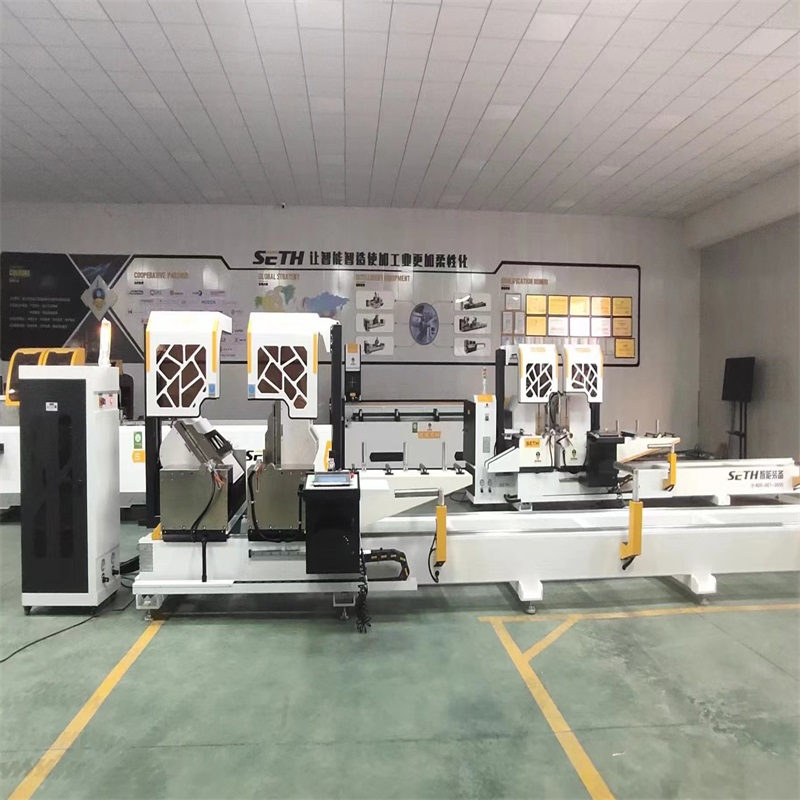

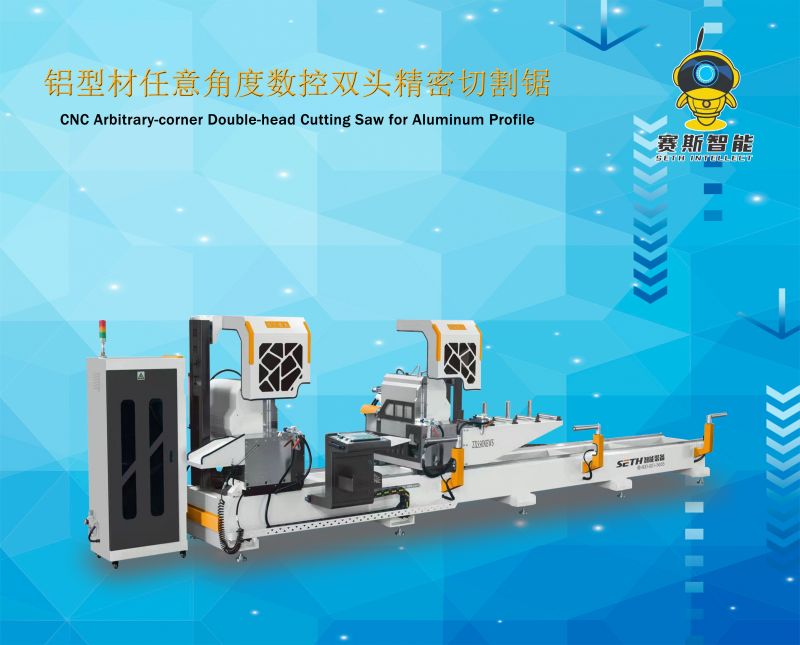

600mm saw blade arbitrary Angle CNC double mitre saw
Feature:
Mainly used for industrial aluminum profiles, aluminum doors and Windows, curtain wall material cutting.
Widely used in automotive, shipbuilding, locomotive, machine tools, molds and other mechanical equipment
manufacturing field of precision parts CNC processing, machine tools with high precision, high speed characteristics,
can achieve high-speed cutting.
The imported high-speed spindle direct connected motor is mounted with diamond saw blade. The saw blade feed is driven by gas-liquid damping cylinder,
and the cutting is stable.
High precision imported cutting saw blade, cutting section is smooth, imported servo motor drive reducer,
The cutting Angle can be adjusted between 22.5° and 157.5°.
The import control system can realize advanced functions such as profile optimization and cutting, and can be entered to cut at one time
Cut the size of several profiles, to achieve continuous cutting of different lengths, to achieve direct processing size
In, change the cutting length without returning to the reference point.

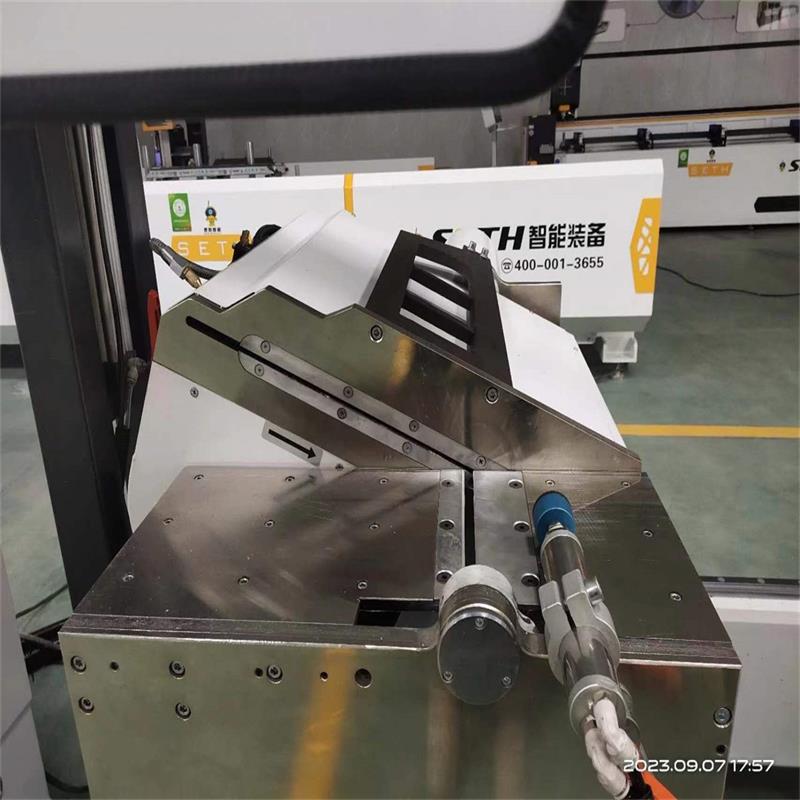

There is a saw blade sealing device under the workbench, the chip removal effect is good, with the following opening and closing saw cover, safe
All reliable, good working environment.
Two cylinders in each machine head clamp the profile, cutting safely and reliably.
| Power | 380V 50HZ |
| Saw head motor | 2×3KW/ 2840r/min |
| servo motor | 1 kw |
| Working pressure | 0.5 ~ 0.8mpa |
| Air consumption | 60L/min |
| Saw length | Max6000mm MIN420mm (8200-300) |
| Saw width | Max 180mm |
| Maximum cutting slope | 45°210×220mm 90°210×300mm |
| Sawing Angle | 22.5°-157.5° |
| Feed speed | stepless speed regulation 0-3m/min |
| Saw blade specifications | ø600 × ø30 × 4.4× Z144 550mm |
| Dimensions | 7800×1800×1500 mm |
| Weight | 2000 kg |
| Repeat constant length accuracy | ≤ 0.05mm |
| Profile cutting Angle tolerance | ±3 ' |
| Cutting plane flatness | ≤ 0.1m |
| Roughness of cutting surface | Ra12.5μm |
How to make system aluminum window door?
To make a window door need these machines including:
aluminum cnc cutting machine to cut aluminum frame
cnc corner connector cutting saw to cut corner connector material
CNC end milling machine to milling the end of face
CNC drilling milling machine to process all kinds of holes
corner crimping machine to combining
The application field is very wide. Used in doors and Windows curtain wall, new energy automobile aluminum parts,
rail transit, kitchen bathroom, all aluminum home and so on.
