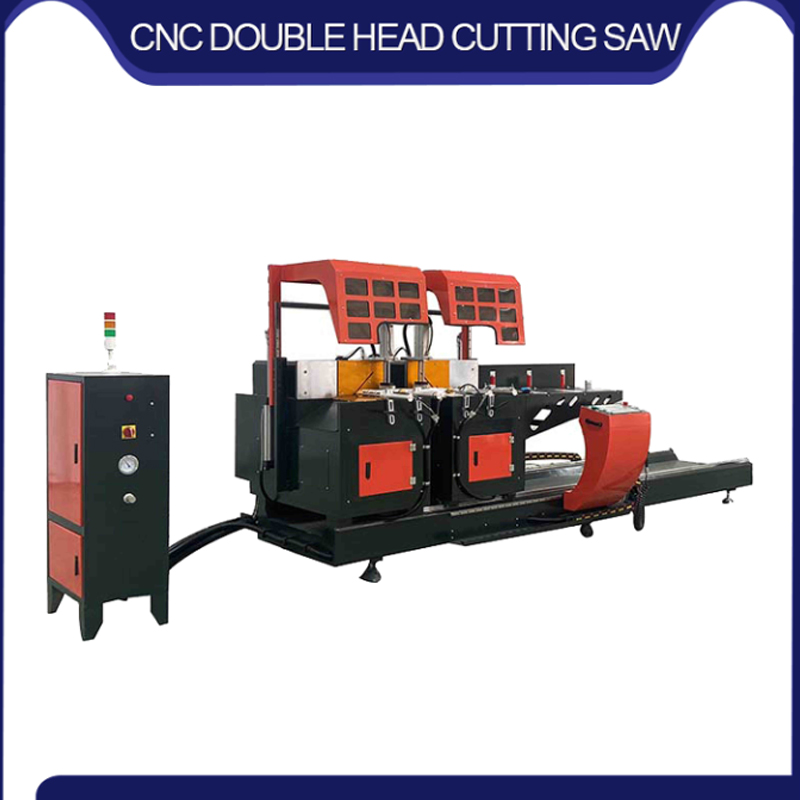

Aluminum CNC Double Head Cutting Saw
CNC Cutting Saw Machine Model:LJZ2Z-CNC-550*3500
Our aluminum CNC double head cutting saw machines mainly used for cutting and blanking system
door and window profiles at 45° angle,and can also be used for cutting and blanking plastic profiles.

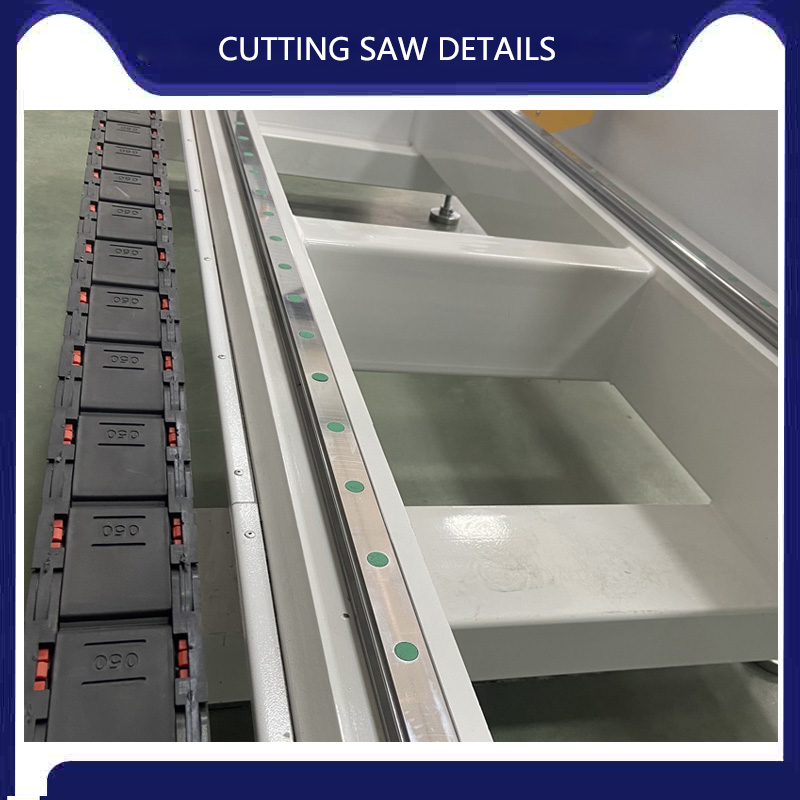

Adopt square guide rail,with high precision of repeated positioning.

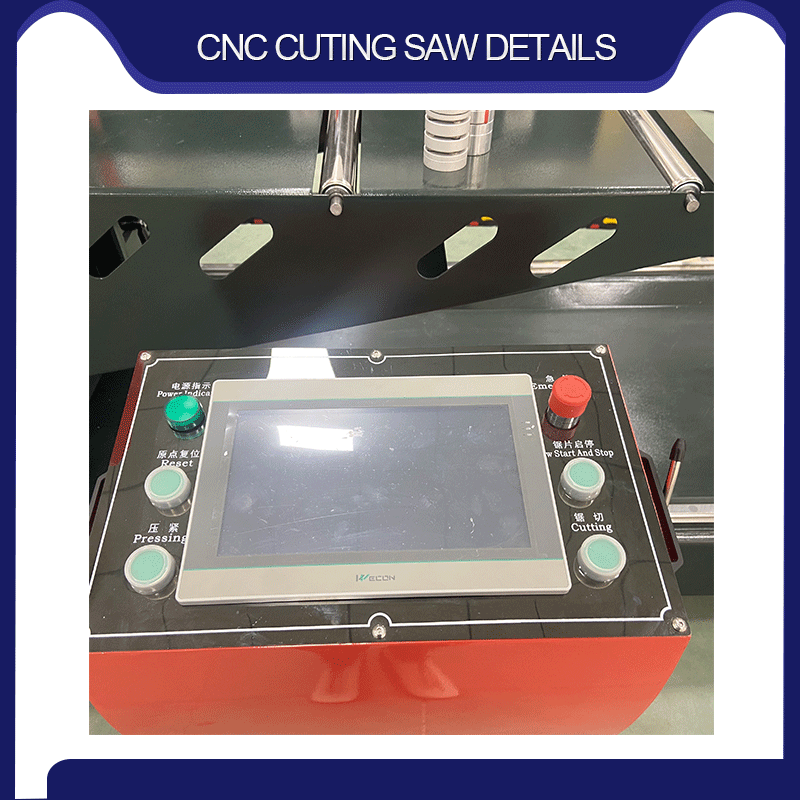

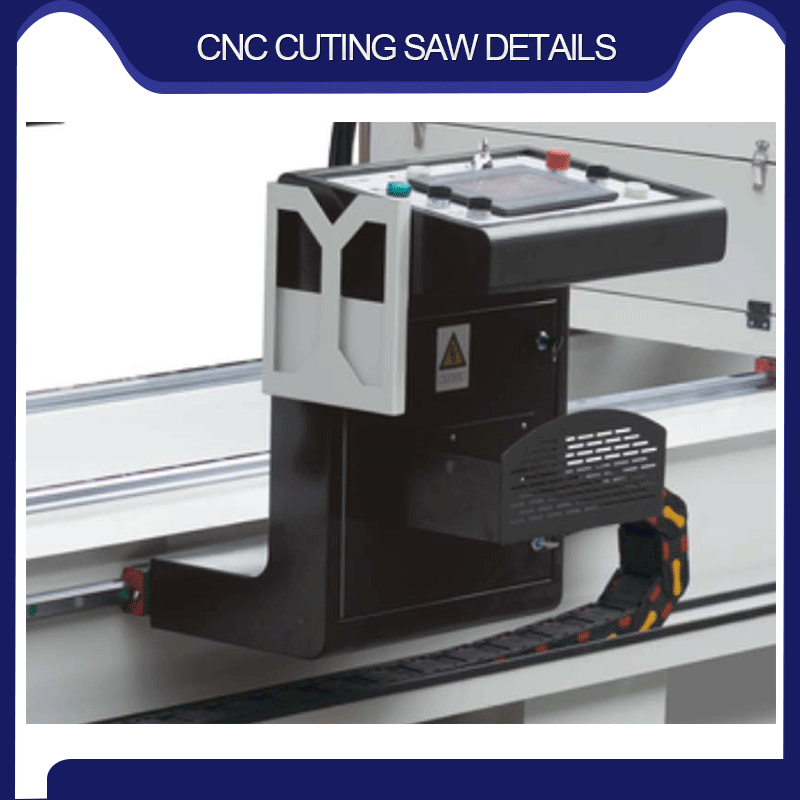

This model cutting saw machine adopts numerical control technology,and can complete automatic
positioning,cutting and blanking of profiles with different specifications and sizes.
Using cemented carbide saw blade,the outer diameter can reach 550 with high linear speed and machining
precision.
High transmission precision,accurate positioning and stable movement.
Adopt micro spray cooling device.

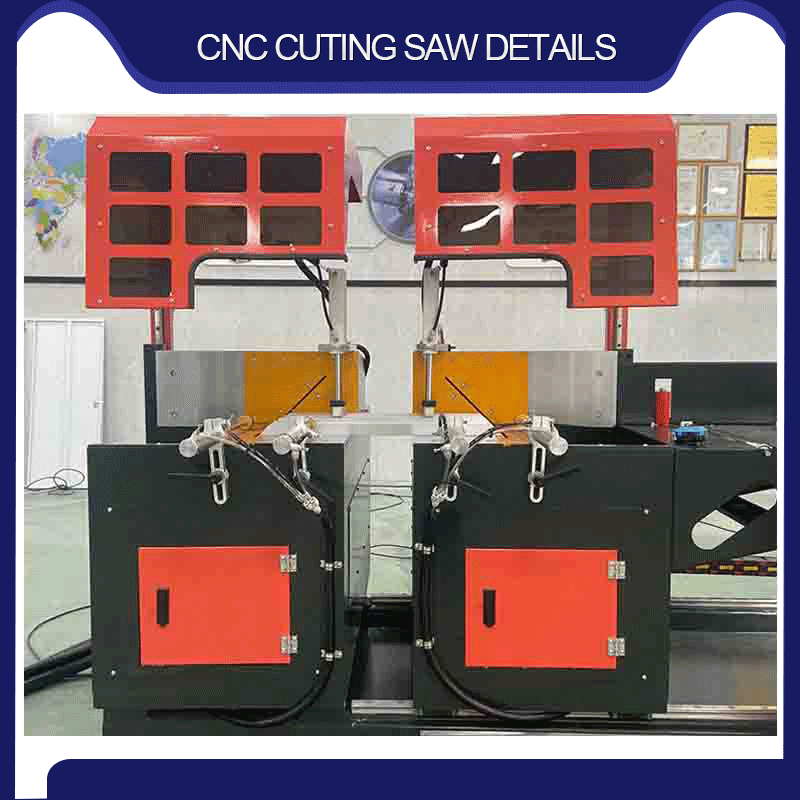

When the machine works,the saw blades with two saw heads can cut at the same time or separately.

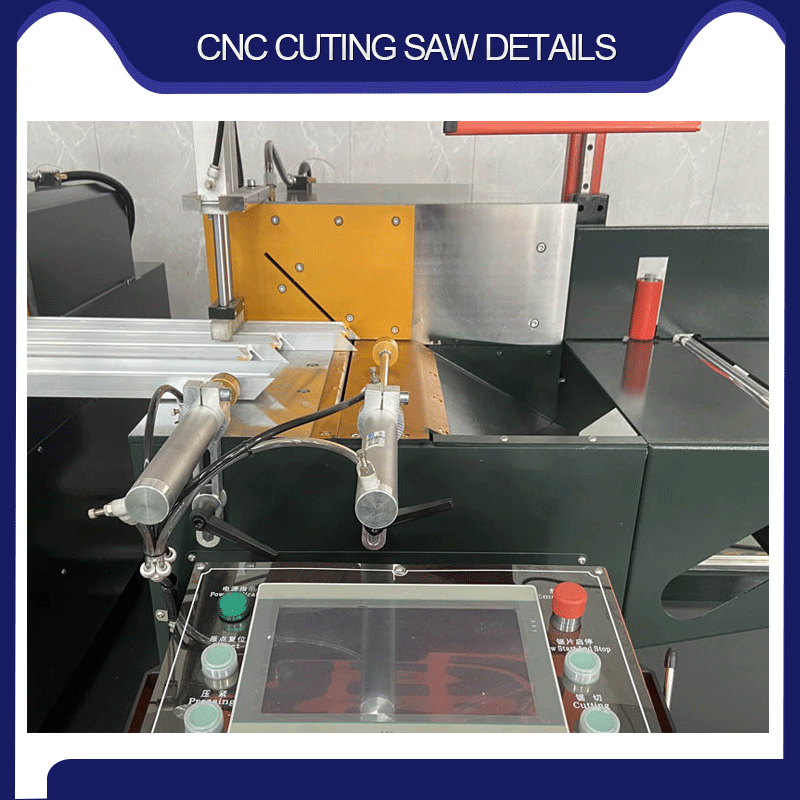

The machine head is fixed at an angle of 45° to ensure stable precision in long-term use.
With the saw blade from back to front,the sawing profile is safer and more reliable,and the sawing height
and width are very large.
CNC Double Head Cutting Saw Machine Specification
| Power | 380V 50HZ |
| Saw head motor | 2×3KW/ 2840r/min |
| Working pressure | 0.6 ~ 0.8mpa |
| Air consumption | 60L/min |
| Saw length | Max3500mm MIN290mm |
| Saw width | Max 170mm |
| Maximum cutting slope | 45°170×280mm |
| Sawing Angle | 45° |
| Feed speed | stepless speed regulation 0-3m/min |
| Saw blade specifications | ø550 × ø30 × 4.4× Z144 |
| Dimensions | 5800×1800×1500 mm |
| Weight | 1900 kg |
| Repeat constant length accuracy | ≤ 0.05mm |
| Profile cutting Angle tolerance | ±3 ' |
| Cutting plane flatness | ≤ 0.1m |
| Roughness of cutting surface | Ra12.5μm |
CNC Cutting Saw Machine Manufacturer
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door
machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different
clients, and can also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,
SGS,CE certifications,excellent product design and development engineers, skilled production engineers,
experienced production management team and after-sales service that providing you with a strong guarantee.
Except our aluminum CNC double head cutting saw machine,we also have products including aluminum&uPVC
profile machining center,cnc drilling milling machine,welding machine,corner cleaning machine,corner cutting
saw machine,corner crimping machine,punching machine&drilling machine.
Our Aluminum Cutting Saw Machine Delivery
FAQ:
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company
in china.
Q: SETH's main products?
A: Aluminum &upvc window machines: CNC cutting center, double miter saw, end milling machine,CNC milling
machine, aluminum punching machine, end milling machine, welding machine,CNC copy router and corner connector
saw, etc;
Wood window machines: wood saw, wood window frame machine,vertical & horizontal drilling machine, dovtail making
machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy
USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
