Machine Features

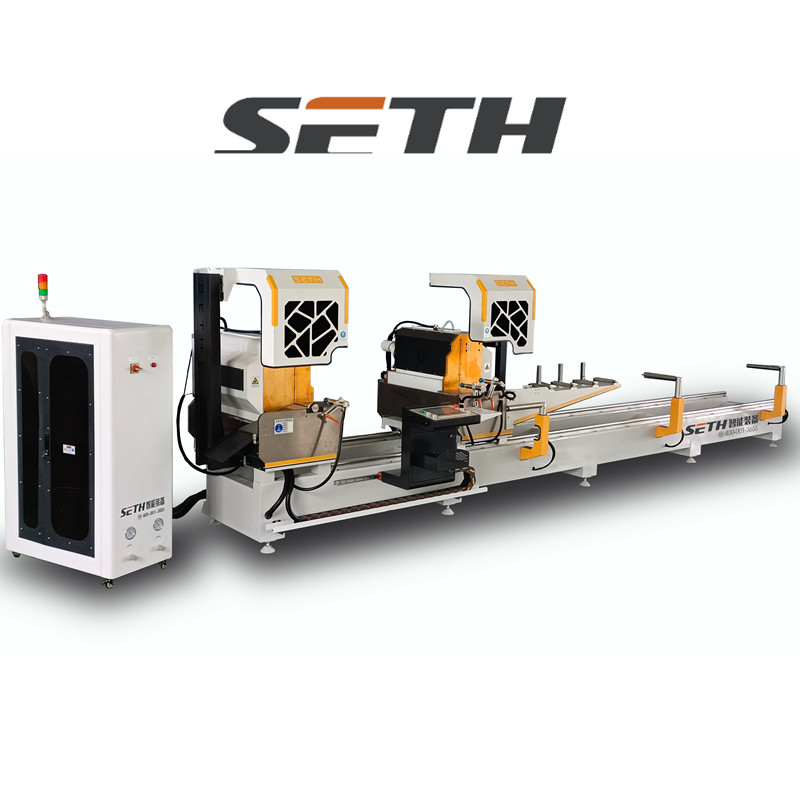

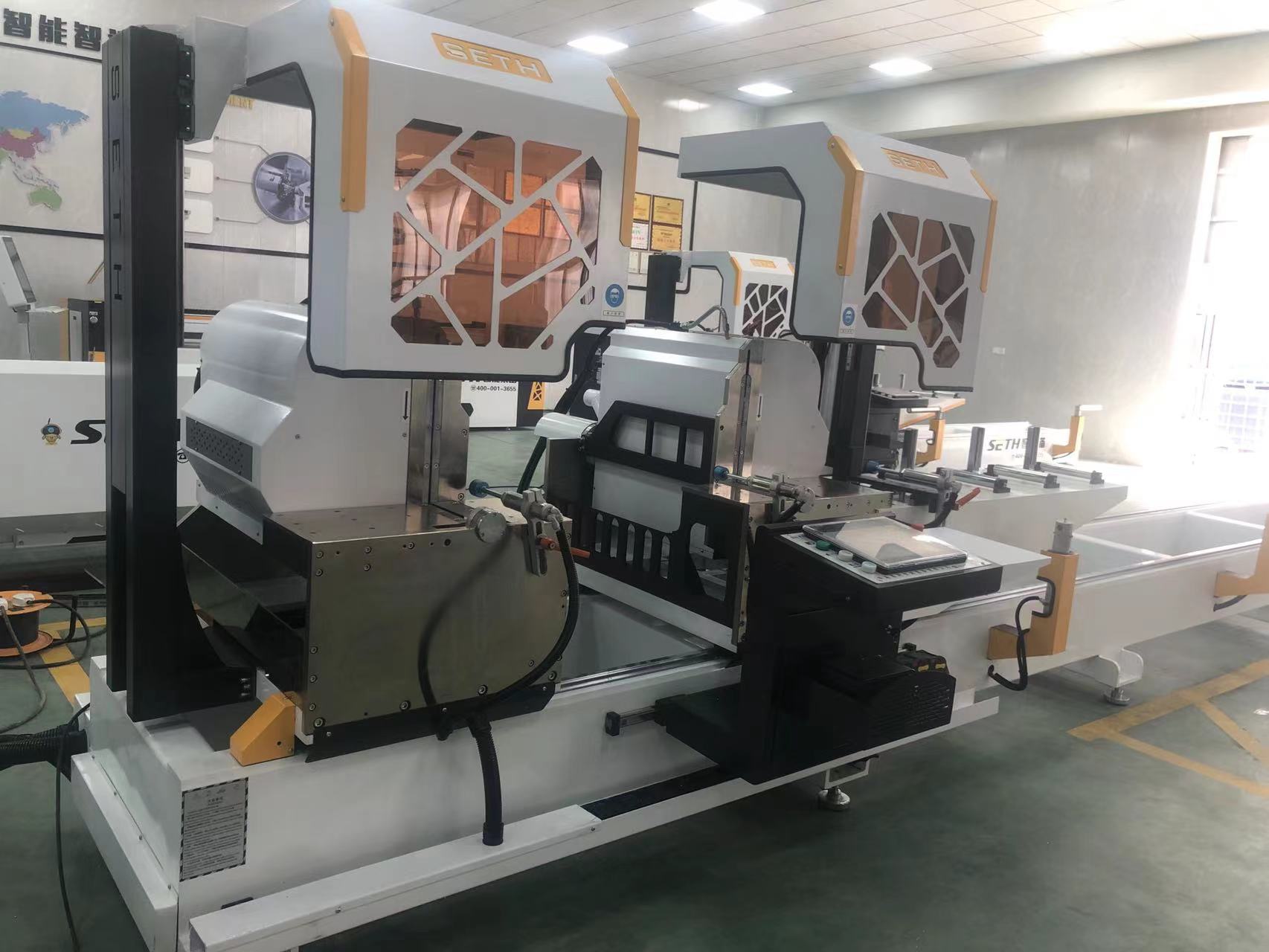

★ Applicable for arbitrary angle cutting of aluminum windows and doors, curtain wall and all industrial aluminum profile
★ Imported servo motor drives the speed reducer, realizing the arbitrary angle adjustment cutting between 45°-157.5°
★ The movable cutting head is driven by imported servo motor gear rack, moving fast, fully close-up control and high precision scaling.
★ Imported motor straightly connect to blade adopting lever-swing cutting mode.
★ Equipped with high quality industrial control computer, supporting external data direct lead-in
★ The blade adopting gas liquid damping transmission, with stable cutting performance.
★ With follow-up cover, working safely and protecting the working environment.

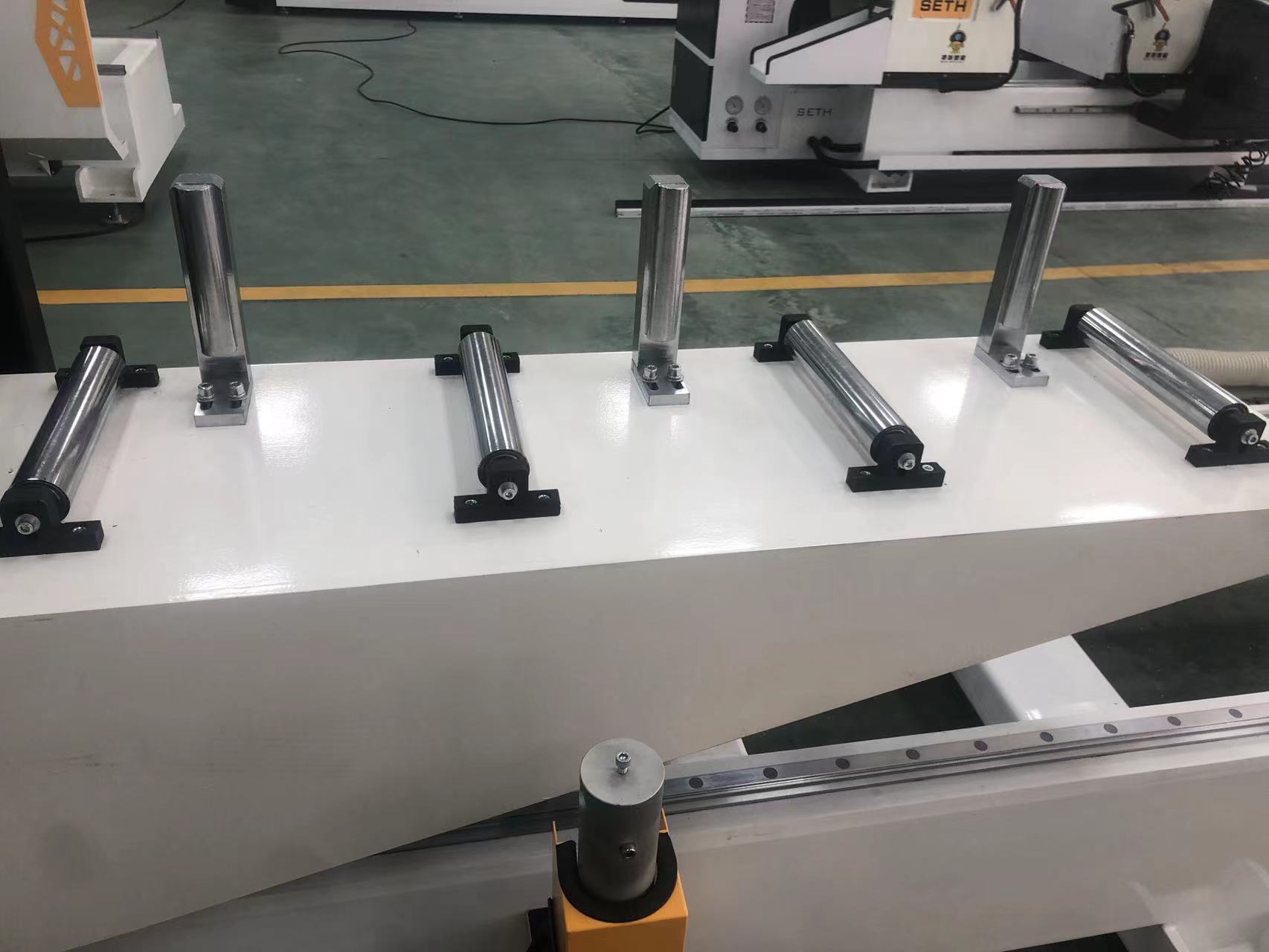

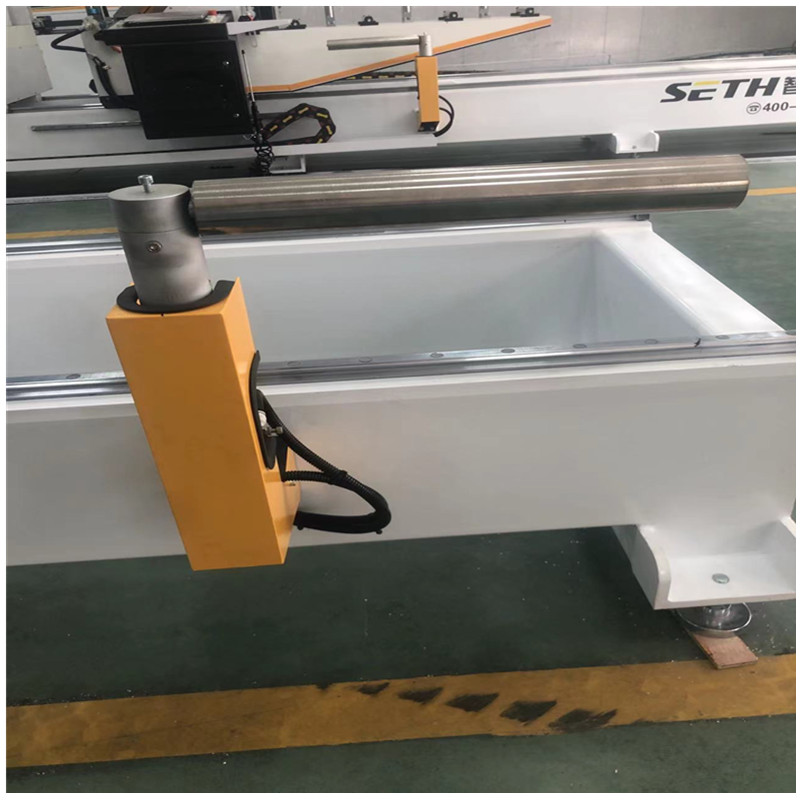

★ With follow-up profile supporter reduce occupying space

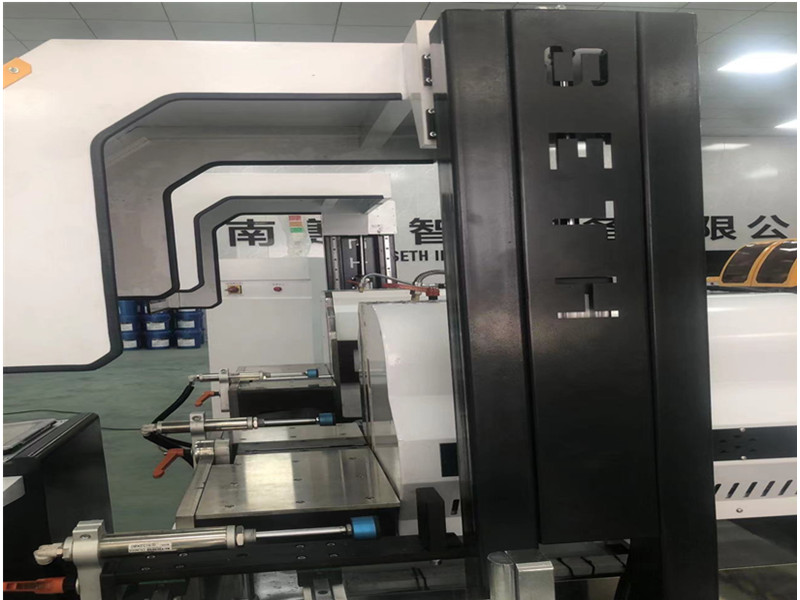

★ There are two cylinders for clamping profiles at each machine head, cutting safely and reliably.
★ Can automatically complete super long or super short cutting function
★ Optional barcode printer, forming digital factory system.
Technical Parameters
|
Item |
Specification |
|
Cutting Motor Power |
2*3.0kW 2840r/min |
|
Blade Specification |
φ500*φ30*4.4-z120 |
|
Cutter Feeding Speed |
stepless speed regulation 0~3m/min |
|
Cutter Moving Speed Range |
0~20m/min |
|
Cutting Length |
360~6000mm at 90°; |
|
Cutting Width |
135mm |
|
Cutting Height |
230mm |
|
Cutting Angle |
45°~ 157.5° Any angle in the range |
Working air pressur |
0.6~0.8Mpa |
| Gas consumption | 60L/min |
|
Contour Dimention
|
7800*1500*2040mm
|
|
Weight
|
About 2500kgs
|
