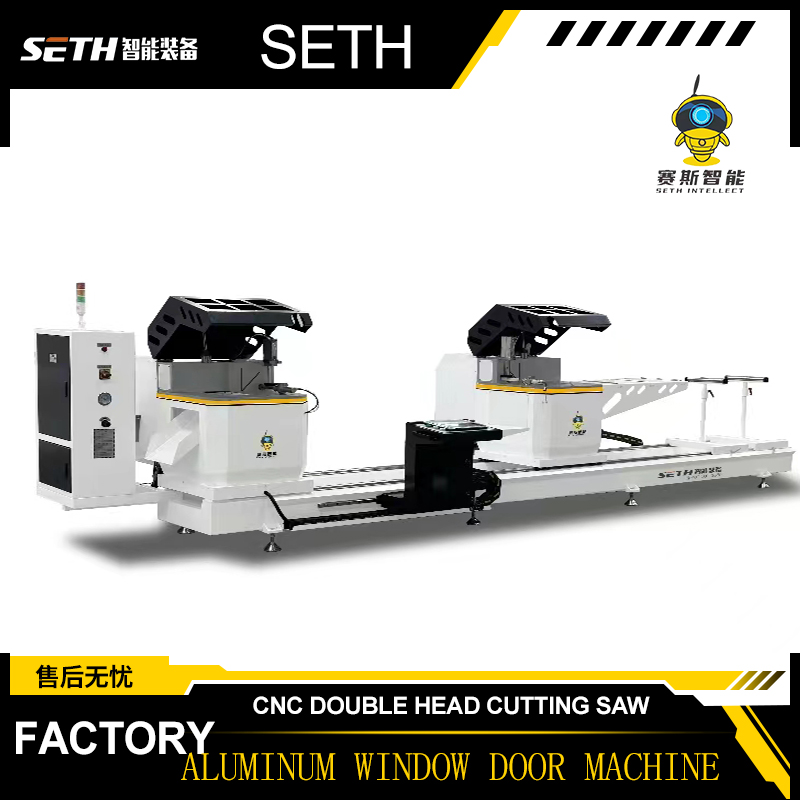

Aluminum CNC Double Head Mitre Saw Machine
Model: LJZ2-CNC-550*6000
First,
Mainly used for aluminum curtain wall material. The cutting of the window material can also be used for the cutting of plastic profiles, the use of diamond saw blade.
the outer diameter can reach 500-600mm, and the speed is high. When the machine is working, the two saw blades can be cut at the same time or cut separately.
The saw head can be placed into the required Angle of 90°45°, so it is more suitable for cutting aluminum doors and Windows and aluminum curtain wall materials.
|
Power supply |
380v 50hz |
|
Saw head motor |
2 × 3KW/3000r/min |
|
Working pressure |
0.6~ 0.8MPa |
|
Air consumption |
60L/min |
|
Cutting length |
Max5000mm min 280mm Short cutting function is the shortest 200mm |
|
Cutting width |
Max 150mm |
|
Max. Cutting slope |
45°150× 170mm 90°150×345mm |
|
Max. square tube cutting |
150×200mm |
|
Cutting angle |
45degree 90degree |
|
Feeding speed |
continuously viable 0-4m/min |
|
specification |
ø550 × ø30 × 4.4 × Z120 |
|
dimension |
6550× 1300× 1800 mm |
|
weight |
2000kgs |
|
Accuracy of repeated fixed length |
≤ 0.1mm |
|
Allowance of section cutting angle |
± 3’ |
|
Flatness of cutting profile |
≤ 0.02m |
|
Roughness of cutting profile |
Ra 12.5 μm |
