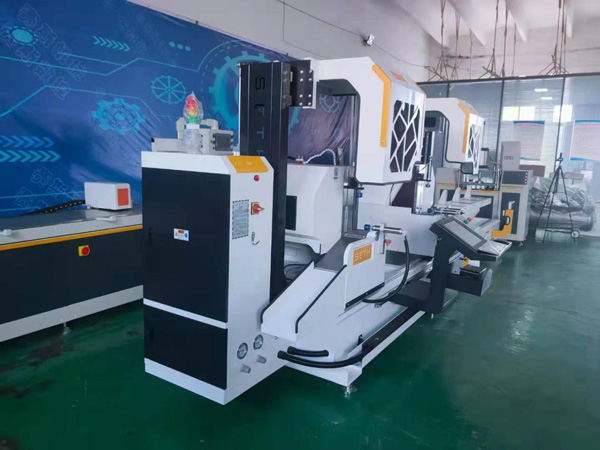

CNC Double Head Precision Cutting Saw

Mainly used for industrial aluminum profile, PVC profile, broken bridge aluminum doors and Windows, curtain wall material cutting.

Contact Now

Product Details

● Simple operation and easy to use, to solve the factory recruitment difficulties, label printing function, error prevention function, profile error beyond the range of no cutting.

● High precision, integrated casting table, integrated spindle direct motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.

● Support a variety of data import methods: Internet, LAN, U disk, manual input, etc. It can realize the data docking of common optimization software in the market, such as Xinger, Changfeng and Chuangying

● Environmental protection function, unique dust removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.

● It is equipped with patented rotary lifting bracket to avoid cutting errors caused by sagging in the middle. It is equipped with movable profile bracket.

● The latest arc cutting technology, sawing profile is safer, faster and more reliable

CNC Double Head Precision Cutting Saw

Power source	380V 50HZ
Saw head motor	2× 3KW/3000r/min
Working pressure	60L/min
Air consumption	0.6 ~ 0.8MPa
Sawing length	Max5000mm min 280mm(the shortest cutting function of short material is 200mm)
Cutting width	max 150mm
Maximum cutting surface	45°150×170mm 90°150×345mm
The most generous pipe cutting	150×200mm
Sawing Angle:	45° -90 °
Feed speed	stepless speed regulation 0-4m/min
Saw blade specification	ø500 × ø30 × 4.4× Z120
Overall size	6550× 1300× 1800 mm
Weight	2000kg
Precision of repeated fixed length	≤ 0.02mm
Profile cutting Angle tolerance	± 3 '
Flatness of cutting surface	≤ 0.02m
Cutting surface roughness	Ra12.5μm
