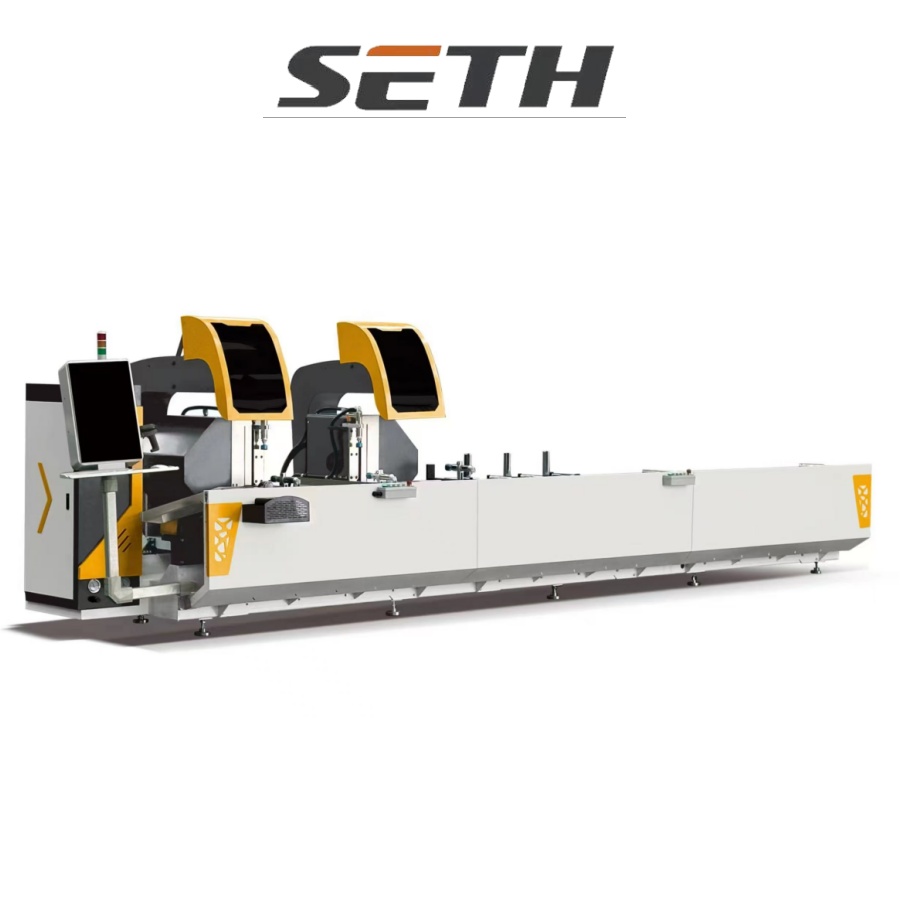

Aluminum CNC Double Head Cutting Saw Machine WIH 600mm saw blades

Name:Aluminum CNC Double Head Cutting Machine

Model:SETH-CNC-500 * 5000FOM

Power supply	380v 50hz
Motor saw head	2 × 3 KW/3000r/min
Working pressure	0.6 ~ 0.8 MPa
Air consumption	60L/min
Cutting length	Maximum 5000mm Minimum 280mm (Minimum 200mm for cut-off function)
Cutting width	150mm Max
Maximum cutting slope	45 ° 150 × 170 mm 90 ° 150 × 345 mm
Maximum pipe cutting	150 x 200 mm
Cutting angle	45 Degree 90 Degree
Feed speed	Continuous survival 0-4m/min
Saw Blade Specification	Ø 500 × Ø 30 × 4.4 × Z120
Dimensions	6550 × 1300 × 1800 mm
Weight	2000kg
Repeated fixed length precision	≤ 0, 1 mm
Section cutting angle margin	± 3’
Flatness of cutting contour	≤ 0. 02m
Cutting profile roughness	Ra 12.5 μm

Contact Now

Product Details

● Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and windows, curtain wall materials.

● There are no qualified workers to operate, solve the difficulty of recruiting workers in the factory, label printing function, error prevention function: the profile error exceeds the range of non-cutting.

● High precision, integrated casting table, integrated spindle directly connected to motor, integrated gas-liquid damping cylinder, T1 and T2 heads located on integrated guide rails.

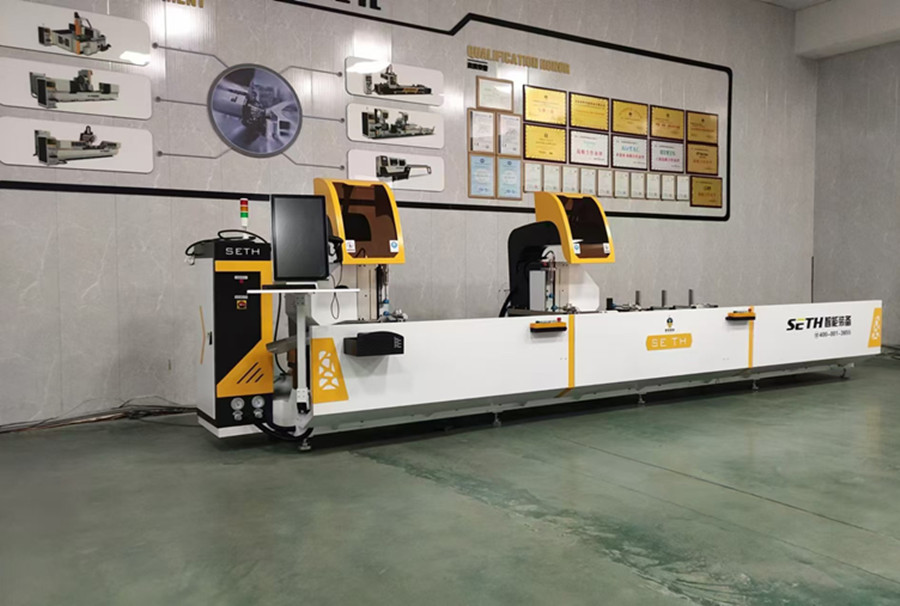

aluminum cutting saw (2).jpg

● Supports multiple data import modes: Internet, LAN, U disk, Bluetooth, manual input, etc. It can realize data coupling of common optimization software in the market, New Gel, Changfeng, Chuangying

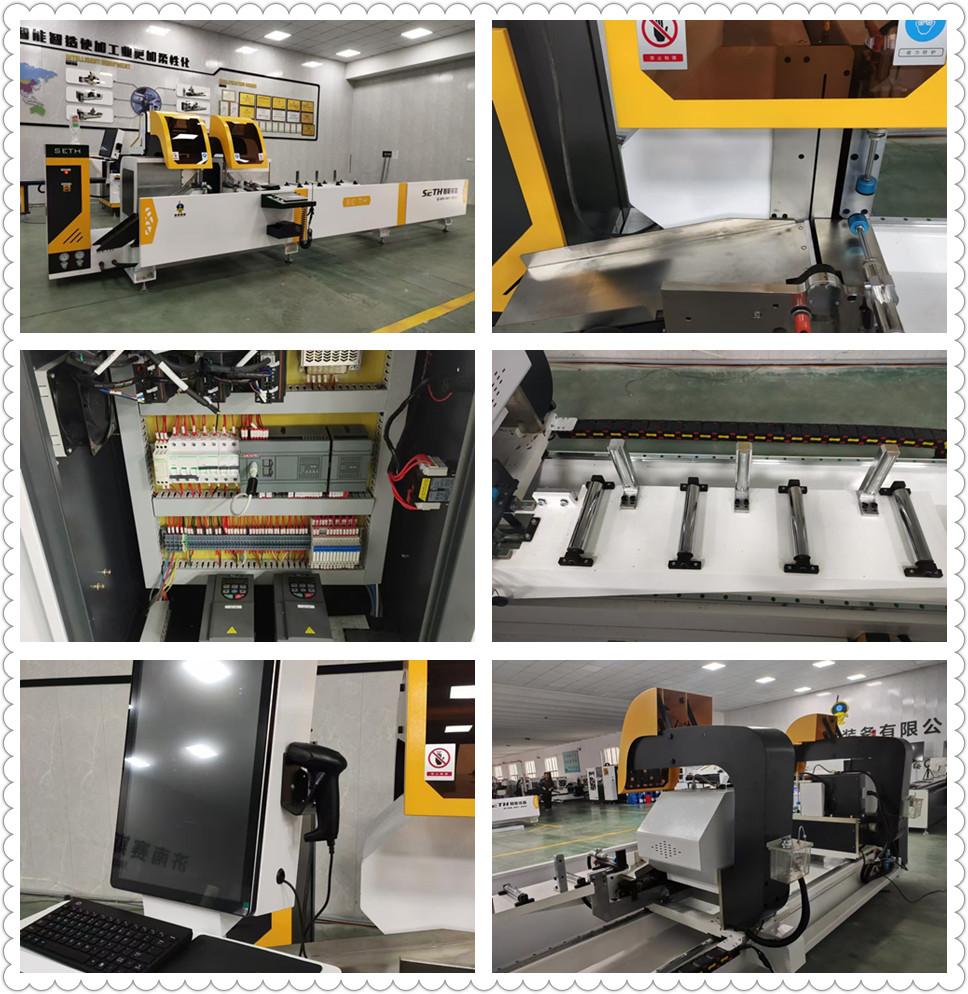

window door machinery .jpg

● Environmental protection function, unique chip removal and dust suction design, 70% dust suction rate, clean site, reduce cleaning frequency and improve work efficiency.

● Equipped with patented rotating lifting support to avoid cutting error caused by intermediate sagging and equipped with movable profile support.

● The latest arc cutting technology, the sawing cutting section is safer, faster and more reliable.
