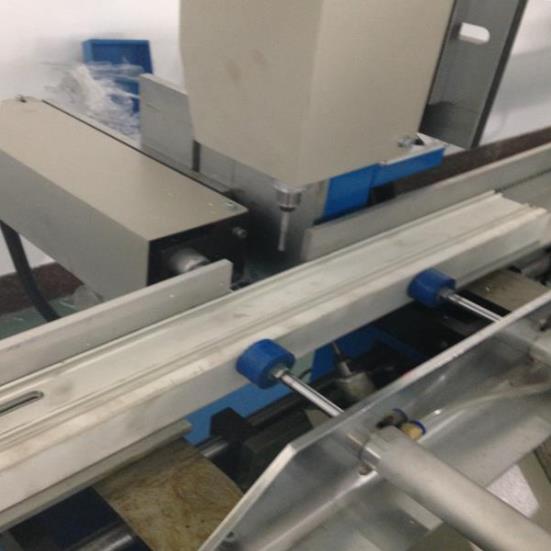

CNC Machining Center for Aluminium

Uses for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering and other procedure.

This machine is a CNC machining center for heavy aluminum profiles, suitable for high speed machining of thick and thin wall profiles.

Contact Now

Product Details

This gadget is a CNC machining middle for heavy aluminum profiles, appropriate for excessive pace machining of thick and skinny wall profiles.

The layout goal of the complete gadget is excessive-pace and excessive- precision machining. The shape layout and electricity ratio of the complete gadget are strengthened, in order that the device has excessive-power mattress and transferring parts, and the carrier performance is significantly improved.

Adopt high speed and high precision motorized spindle.

X axis adopts high precision helical gear and rack, Y axis and Z axis adopt high precision ball screw drive.

Automatic tool changing type, automatic tool changing processing according to the need of the equipment, 6 tool library design.

CNC Machining Center for Aluminium Profile

Power supply	380V/50Hz
Air pressure	0.5~0.8MPa
Total power	13.5kW
Main axis power	S6: 9.6kW S1: 8.0kW
Max rotary speed	24000r/min
X-axis longitudinal travel	4000mm
Y-axis transverse travel	640mm
Z-axis vertical travel	440mm
X-axis speed	50m/min
Y-axis speed	15m/min
Z-axis speed	15m/min
Overall dimension	5630×2780×2500mm
Weight	About 2100kg
