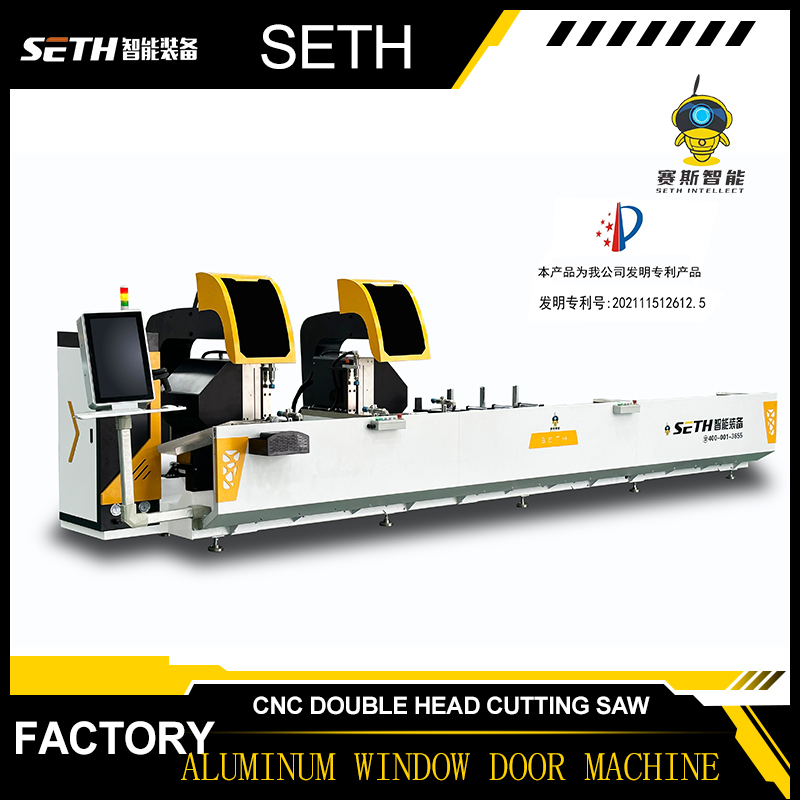

Aluminum Window Machine

Mainly used for cutting industrial aluminum profiles,aluminum/upvc doors and Windows, curtain wall materials.
Operation without skilled workers.
label printing function, error prevention function: profile error beyond the range of no cutting.
4.High-precision, integrated casting workbench.
5.Air-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
6.Supports multiple data import modes.
7.Environmental protection function,vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
8.With patented rotary lifting bracket
9.The latest arc cutting technology, sawing is safer, faster and more reliable.

Product Details

Main specification and technical parameter

Power supply	380v 50hz
Saw head motor	2 × 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
Air consumption	60L/min
Cutting length	Max5000mm min 280mm(Short cutting function is the shortest 200mm)
Cutting width	Max 150mm
Max. Cutting slope	45°150× 170mm 90°150×345mm
Max. square tube cutting	150×200mm
Cutting angle	45degree 90degree
Feeding speed	continuously viable 0-4m/min
Saw blade specification	ø500 × ø30 × 4.4 × Z120
dimension	6550× 1300× 1800 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3’
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra 12.5 μm

Item	name	Brand	Origin
1	CNC system	Delta	Taiwan
2	Computor PC	Delta	Taiwan
3	touch screen	Delta	Taiwan
4	driver	Delta	Taiwan
5	servo motor	Delta	Taiwan
6	automatic breaker	Schneider	France
7	phase sequence protection relay	Schneider	France
8	a.c. contactor	Schneider	France
9	thermal protector	Schneider	France
10	switching power supply	Schneider	France
11	relay	Schneider	France
12	Low voltage switch button	Schneider	France
13	terminal	Honeywell	USA
14	Electric motor	GMT	Shenzhen china

15	Approach switch	AUTONICS	Korea
16	Reducer	SHIMPO	Japan
17	diamond saw blade	WAGEN	Japan
18	Guide rail	HIWIN	Taiwan
19	Air cylinder	Airtac	Taiwan
20	cylinder	Airtac customized	Taiwan
21	Rotary lifting system	Airtac customized	Taiwan
22	solenoid valve	Airtac	Taiwan
23	High flexibility wire and cable	Yongheng	Jiangsu
