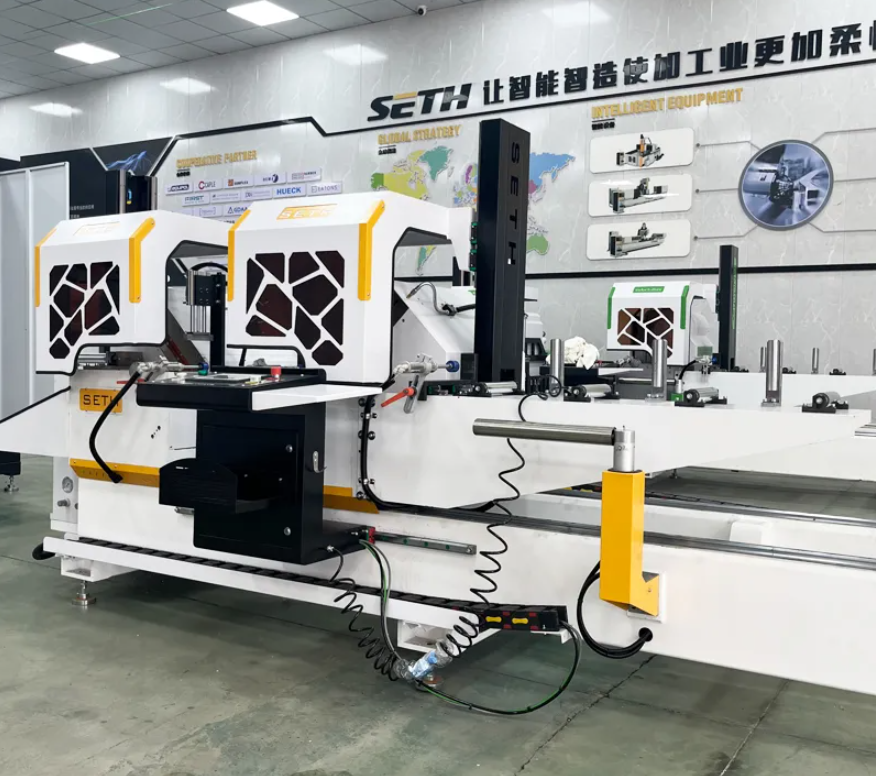

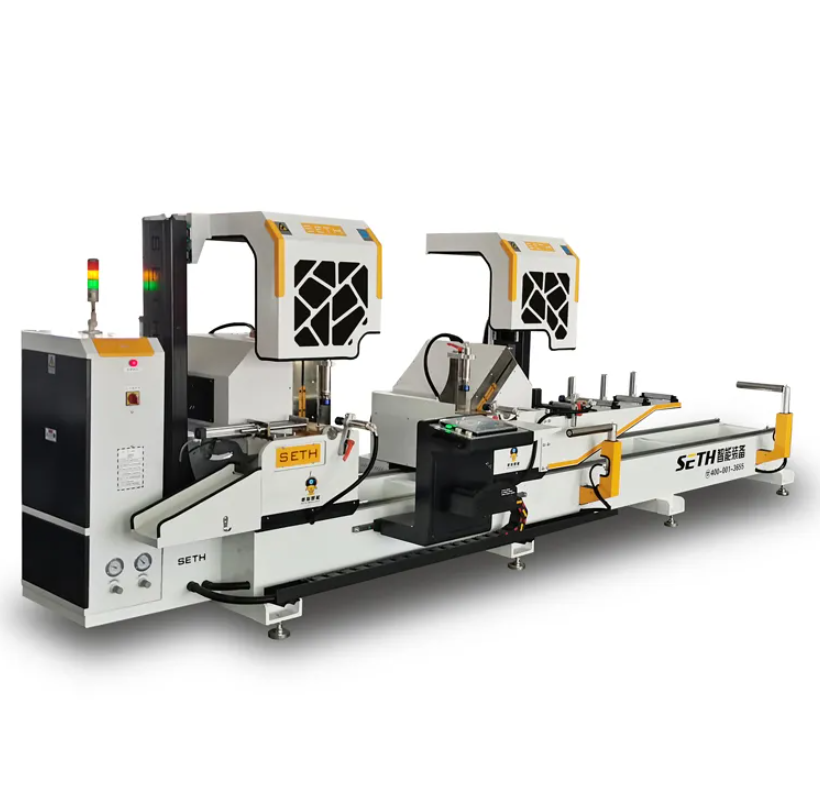

The 45°/90° CNC double head cutting saw with 600mm saw blade is a professional cutting machine designed for aluminum profiles, window and door profiles, curtain wall profiles, industrial aluminum profiles, solar frame profiles and decorative aluminum materials.
With double cutting heads and a CNC positioning system, the machine can perform accurate 45° and 90° cutting. The 600mm large-diameter carbide saw blade provides strong cutting capacity, making the machine suitable for large-section aluminum profiles and high-efficiency batch production.
The machine is equipped with two cutting heads, allowing both ends of the profile to be cut in one clamping process. This greatly improves cutting efficiency and reduces repeated positioning time.
The machine supports both 45° angle cutting and 90° straight cutting, meeting the most common processing requirements for aluminum windows, doors, curtain walls and industrial profiles.
The 600mm saw blade provides a larger cutting range and stronger cutting capability, suitable for large aluminum profiles and heavy-duty processing.
The CNC system controls the cutting length automatically, reducing manual measuring errors and improving product consistency.

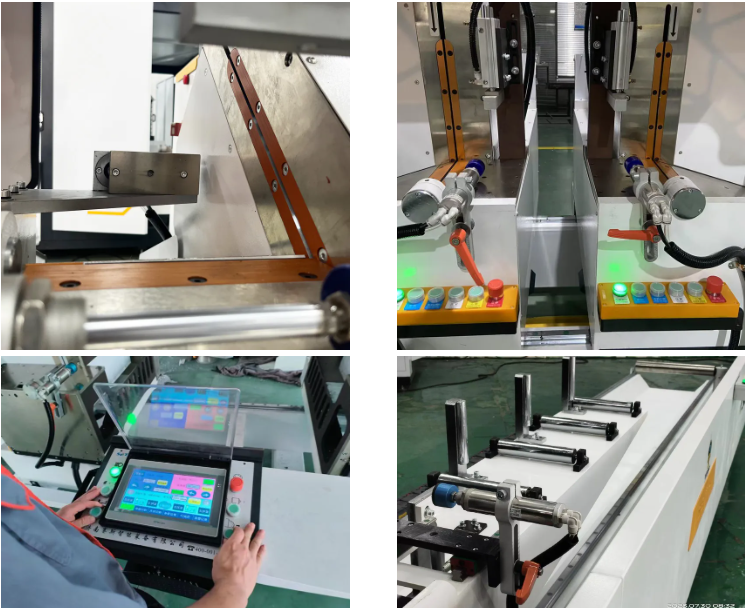

The touch screen interface allows operators to input cutting length, angle and quantity easily. Common programs can be saved and recalled for repeated production.
With a professional aluminum cutting saw blade and stable feeding system, the machine delivers smooth cutting surfaces with fewer burrs.
The pneumatic clamping system firmly holds the profile during cutting, improving cutting accuracy and safety.
The heavy-duty steel frame ensures stable operation, low vibration and long service life.
| Selling Point | Description |
|---|---|
| High Efficiency | Double head cutting improves production speed |
| High Precision | CNC positioning ensures accurate cutting length |
| Large Cutting Capacity | 600mm saw blade is suitable for large profiles |
| Easy Operation | Touch screen control, simple parameter setting |
| Smooth Surface | Clean cutting surface with fewer burrs |
| Labor Saving | Automatic positioning reduces manual work |
| Wide Application | Suitable for windows, doors, curtain walls and industrial profiles |
| High Cost Performance | Practical functions for 45° and 90° cutting needs |
The following specifications are for reference. Actual parameters can be customized according to customer requirements.
| Item | Specification |
|---|---|
| Machine Name | 45°/90° CNC Double Head Cutting Saw |
| Applicable Material | Aluminum profiles, window and door profiles, curtain wall profiles, solar frame profiles |
| Control System | CNC / PLC / Touch Screen Control |
| Cutting Heads | Double Head |
| Cutting Angle | 45° and 90° |
| Saw Blade Diameter | 600mm |
| Saw Blade Type | Carbide Saw Blade for Aluminum Cutting |
| Max. Cutting Length | 3000mm / 4500mm / 6000mm, customizable |
| Min. Cutting Length | Approx. 300mm, depending on profile and fixture |
| Main Motor Power | 3.0kW × 2 / 4.0kW × 2 optional |
| Saw Blade Speed | Approx. 2800 - 3500rpm |
| Feeding Method | Pneumatic / Hydraulic damping / Servo feeding optional |
| Positioning Method | CNC automatic positioning / Servo positioning |
| Clamping Method | Pneumatic clamping |
| Working Air Pressure | 0.6 - 0.8MPa |
| Cutting Accuracy | ±0.1mm - ±0.2mm, depending on configuration |
| Angle Accuracy | ±5′ - ±10′, depending on configuration |
| Cooling Method | Mist cooling / Micro lubrication |
| Operation Interface | Touch screen HMI |
| Power Supply | 380V / 50Hz / 3 Phase, customizable |
| Total Power | Approx. 7 - 10kW |
| Optional Functions | Auto feeding, auto unloading, dust collection, customized fixtures, barcode system |
| Industry | Typical Products |
|---|---|
| Aluminum Windows and Doors | Window frames, door frames, sash profiles |
| Curtain Wall | Curtain wall mullions, transoms and cover plates |
| Industrial Aluminum | Machine frames, conveyor profiles, safety guard profiles |
| Solar Industry | Solar panel frames, PV support profiles |
| Decoration Industry | Aluminum decorative strips and frames |
| Furniture Industry | Aluminum furniture frames |
| Transportation | Aluminum structural parts |
We provide remote guidance or on-site installation and commissioning support according to customer requirements.
Training includes machine operation, parameter setting, angle adjustment, saw blade replacement, safety operation and daily maintenance.
Online support, video support and phone support are available to help customers solve machine operation issues.
Common spare parts such as saw blades, cylinders, clamping blocks, belts, electrical components and lubrication parts can be supplied for long-term use.
Warranty service is provided according to the contract. During the warranty period, technical support and maintenance guidance are available for non-human-caused failures.
After the warranty period, we continue to provide technical consultation, spare parts supply and maintenance support.
| Item | Maintenance Content |
|---|---|
| Clean Chips | Clean aluminum chips around the worktable, guide rails and saw blade area |
| Check Air Pressure | Keep air pressure at 0.6 - 0.8MPa |
| Check Clamping System | Make sure the pneumatic clamps work properly |
| Check Saw Blade | Check for missing teeth, deformation or looseness |
| Check Lubrication | Ensure mist cooling or micro lubrication works normally |
| Check Safety Devices | Emergency stop, guards and limit switches should work properly |
| Item | Maintenance Content |
|---|---|
| Guide Rail Cleaning | Clean guide rails and sliders |
| Transmission Check | Check screw, rack, belt and other transmission parts |
| Electrical Check | Check wiring, dust and abnormal heating in the electrical cabinet |
| Air System Check | Check air pipes, joints and filters |
| Accuracy Check | Test cutting length and angle accuracy |
| Item | Maintenance Content |
|---|---|
| Lubrication | Add lubricant to guide rails, screws and sliders |
| Saw Blade Maintenance | Clean, sharpen or replace the saw blade if necessary |
| Fastener Check | Check whether bolts and screws are loose |
| Motor Check | Check motor noise and temperature |
| System Check | Check CNC parameters, limit switches and origin position |
| Problem | Possible Cause | Solution |
|---|---|---|
| Inaccurate Cutting Length | Wrong parameters, dirty guide rails, positioning error | Check parameters, clean guide rails, recalibrate positioning |
| Large Burrs | Dull saw blade, insufficient lubrication, improper feeding speed | Sharpen or replace saw blade, check lubrication, adjust feeding speed |
| Profile Moves During Cutting | Insufficient clamping force, wrong clamping position | Check air pressure and adjust clamping position |
| Saw Blade Vibration | Incorrect saw blade installation, damaged blade, spindle issue | Reinstall saw blade and check spindle |
| Machine Does Not Work | Power failure, low air pressure, emergency stop activated | Check power, air pressure and emergency stop |
| No Mist Lubrication | Low oil level, blocked pipe or nozzle | Add oil and clean pipe/nozzle |
| Inaccurate Angle | Angle not calibrated, loose mechanical parts | Recalibrate angle and tighten fasteners |
The 45°/90° CNC double head cutting saw with 600mm saw blade is an ideal solution for aluminum profile manufacturers who need efficient, accurate and stable cutting performance.
It helps customers:
