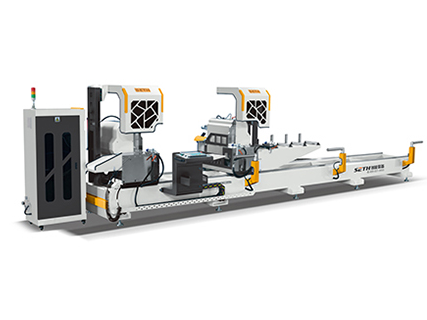

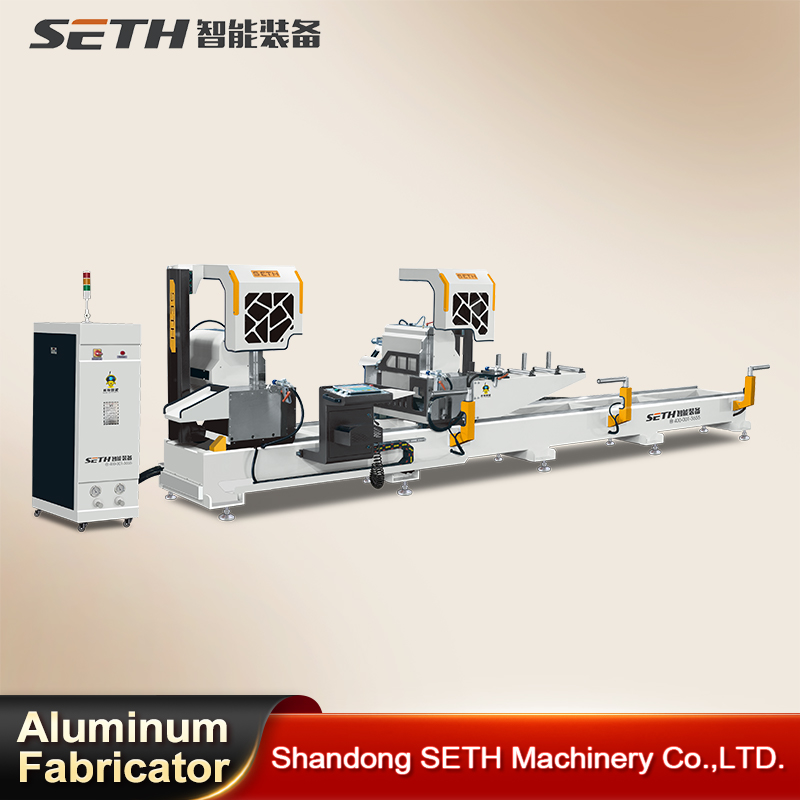

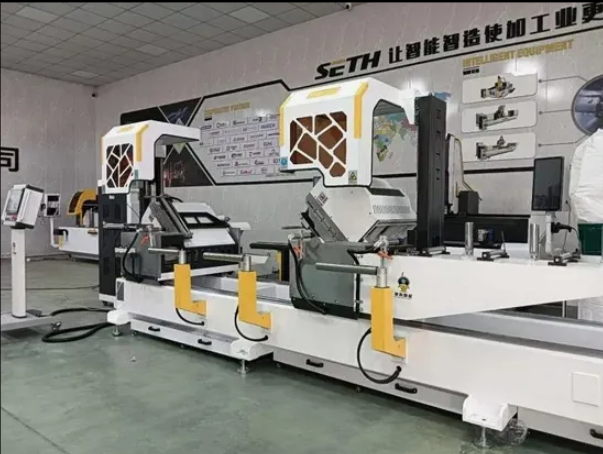

5 Axis CNC Double Head Mitre Saw with Any Angle Cutting from 22.5 degree to 157.5 degree
Our 5-axis CNC double-head arbitrary angle cutting saw is designed for high-precision aluminum profile processing. With automatic angle adjustment, servo positioning, double-head cutting and intelligent control system, it provides excellent cutting accuracy, high efficiency and stable performance for aluminum windows and doors, curtain wall profiles, solar frame profiles, industrial aluminum profiles and automotive aluminum parts.
The 5-axis CNC double-head arbitrary angle cutting saw is a high-precision automatic cutting machine designed for aluminum profiles. It is widely used in aluminum windows and doors, curtain walls, solar panel frames, industrial aluminum profiles, automotive aluminum components, rail transit aluminum parts and customized aluminum processing industries.
With double cutting heads and a 5-axis CNC control system, the machine can automatically adjust cutting length, cutting angle and cutting position. It is suitable for both standard and non-standard angle cutting, helping manufacturers improve production efficiency, cutting accuracy and product consistency.
The machine adopts a multi-axis CNC control system for automatic positioning and angle adjustment, making it suitable for complex aluminum profile cutting applications.

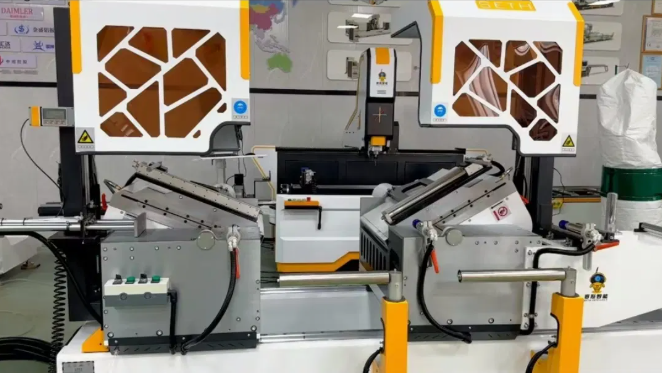

Two cutting heads can cut both ends of the profile at the same time, greatly improving production efficiency compared with single-head cutting machines.
The saw heads can automatically adjust to different cutting angles, including 45°, 90°, 135° and customized non-standard angles.
Servo motor drive and precision guide rails ensure accurate length positioning and stable cutting performance.
The touch screen interface allows operators to input cutting length, angle and quantity easily. Common programs can be saved and recalled for repeated production.

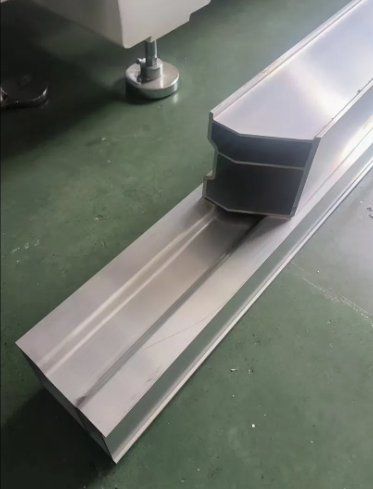

Equipped with professional aluminum cutting saw blades and stable feeding system, the machine delivers smooth cutting surfaces with fewer burrs.
Safety guards, emergency stop buttons and pneumatic clamping systems help ensure safe and reliable operation.
| Advantage | Description |
|---|---|
| High Efficiency | Double-head cutting reduces processing time |
| High Accuracy | Servo positioning ensures stable cutting dimensions |
| Flexible Cutting | Suitable for standard and non-standard angles |
| Labor Saving | Automatic positioning and cutting reduce manual work |
| Stable Performance | Heavy-duty structure supports long-term operation |
| Wide Application | Suitable for various aluminum profile industries |
| Item | Specification |
|---|---|
| Machine Name | 5-Axis CNC Double-Head Arbitrary Angle Cutting Saw |
| Control System | CNC / PLC + Servo Control |
| Number of Cutting Heads | Double Head |
| Number of Controlled Axes | 5 Axis |
| Cutting Angle Range | 22.5° - 157.5° / Customizable |
| Common Cutting Angles | 45°, 90°, 135° and non-standard angles |
| Max. Cutting Length | 3000 mm / 4500 mm / 6000 mm / Customizable |
| Min. Cutting Length | Approx. 300 mm, depending on profile and fixture |
| Saw Blade Diameter | 450 mm / 500 mm / 550 mm optional |
| Saw Blade Speed | 2800 - 3500 rpm |
| Main Motor Power | 2.2 kW × 2 / 3.0 kW × 2 optional |
| Feeding Method | Automatic feeding / Servo positioning |
| Feeding Drive | Servo motor |
| Clamping Method | Pneumatic clamping |
| Positioning Accuracy | ±0.1 mm, depending on configuration |
| Angle Accuracy | ±0.1°, depending on configuration |
| Working Air Pressure | 0.6 - 0.8 MPa |
| Power Supply | 380V / 50Hz / 3 Phase, customizable |
| Cooling Method | Mist lubrication / Micro lubrication |
| Operation Interface | Touch screen HMI |
| Optional Functions | Auto loading, auto unloading, barcode scanning, MES connection, customized fixtures |
| Industry | Typical Products |
|---|---|
| Windows and Doors | Aluminum window frames, door frames, sash profiles |
| Curtain Wall | Curtain wall aluminum profiles |
| Solar Industry | Solar panel frames, PV support profiles |
| Industrial Aluminum | Machine frames, conveyor profiles, protective frames |
| Automotive | Lightweight aluminum structural parts |
| Rail Transit | Aluminum trim parts and structural profiles |
| Furniture | Aluminum furniture frames and decorative profiles |
| Electronics | Aluminum heat sinks and housing profiles |
