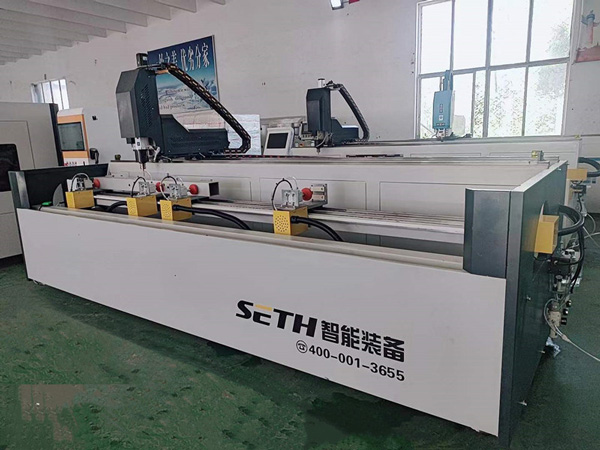

Wide range of processing width and processing height to meet the processing of variety of profiles.Adopt high speed and high precision motorized spindle. X axis adopts high precision helical gear and helical rack, Y axis and Z axis adopts high precision ball screw drive.Automatic tool change type, the equipment according to the need for automatic tool change processing, 6 tool library design.
|
Power supply |
380V/50Hz |
|
Working pressure |
0.5~0.8MPa |
|
The total power is |
13.5kW |
|
Electric spindle power |
9.6kW |
|
Maximum spindle speed |
24000r/min |
|
X axis travel |
4000mm |
|
Y-axis stroke |
640mm |
|
Z-axis travel |
440mm |
|
X axis speed |
50m/min |
|
Y-axis velocity |
15m/min |
|
Z-axis speed |
15m/min |
|
Overall size |
5630×2780×2500mm |
|
It weighs about |
2100kg |
|
CNC system |
Hanslaser |
|
electric parts |
Schneider |
|
air cylinder |
AirTAC |
|
solenid valve |
AirTAC |
