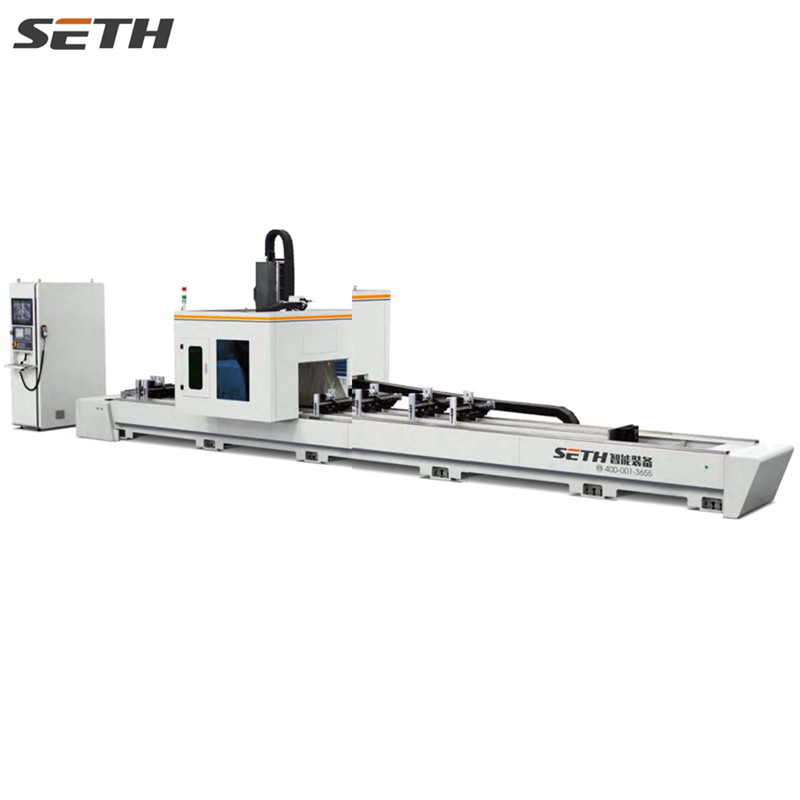

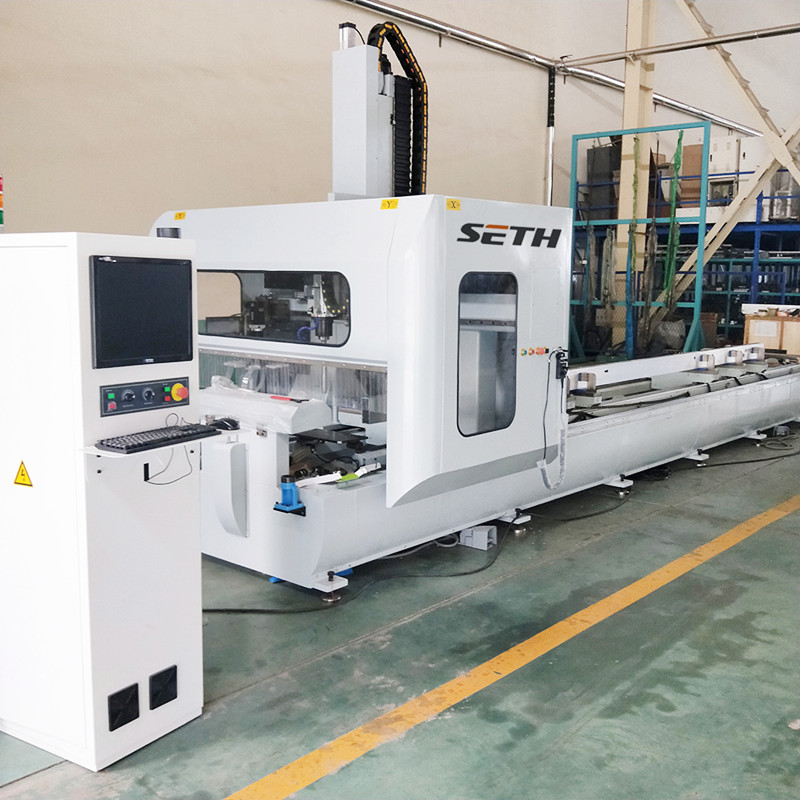

Uses for milling all kinds of holes and slots of aluminum doors, windows and curtain walls or industrial aluminum profiles, and can perfectly realize drilling and milling with 3D programming software.
Imported control system, servo motor, high-quality ball screw, linear guide pair and bearing are adopted to ensure high machining accuracy of the equipment.
The fixture position can be placed automatically.
Double worktable can process two or two profiles at the same time, with interactive feeding and non-interference.
With 12-station tool magazine, automatic tool change.
Adopt high-speed motorized spindle imported from Italy, which can finish machining at any angle within 90, and has high working efficiency.
The 9-meter extension model can be customized.
| Power supply | 380V/50Hz |
| Air pressure | 0.5~0.8MPa |
| Total power | 13.5kW |
| Main axis power | S6: 9.6kW S1: 8.0kW |
| Max rotary speed | 24000r/min |
| X-axis longitudinal travel | 4000mm |
| Y-axis transverse travel | 640mm |
| Z-axis vertical travel | 440mm |
| X-axis speed | 50m/min |
| Y-axis speed | 15m/min |
| Z-axis speed | 15m/min |
| Overall dimension | 5630×2780×2500mm |
| Weight | About 2100kg |
