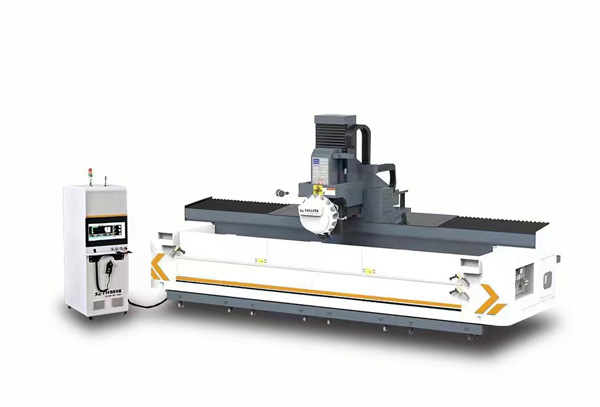

1. Use international special CNC system;
2. Suitable for processing various lengths of steel, aluminum, copper metal and non-metal;
3. Adopt double cantilever design structure, increase the stability and rigidity of equipment, suitable for heavy cutting, improve the machining accuracy;
4. Adopt large inclined sheet metal organ cover protection;
5. BT40/BT50 spindle taper hole, increase the machine rigidity, processing efficiency, precision, high strength;
6. Models of different specifications can be customized according to customer requirements.
|
Parameter - PCD |
||
|
stroke |
unit |
parameter |
|
X axis |
mm |
4000-6000（Other lengths can be customized） |
|
Y axis |
mm |
800/1200 |
|
Z axis |
mm |
600 |
|
Main spindle |
||
|
speed of mainshaft |
rpm |
10000/20000（BT40）8000rpm （BT50） |
|
taper hole of spindle |
/ |
BT40/BT50 |
|
Magazine tool |
||
|
· Tool changer design
|
/ |
· bevelled claw-clutch
|
|
· Tool magazine capacity |
pcs |
12（BT40）/ 6(BT50） |
|
Adjacent tool change time |
sec |
6 |
|
Movement speed |
||
|
X axis shift |
m/min |
40 |
|
Y axis shift |
m/min |
30 |
|
Z axis shift |
m/min |
20 |
|
X/Y/Z feed speed |
mm/min |
15000 |
|
Motor power |
||
|
Spindle drive motor |
kw |
13（BT40）/ 17（BT50） |
|
X driving motor |
kw |
5.2 |
|
Y driving motor |
kw |
3.1 |
|
Z driving motor |
kw |
3.1 |
|
Lubricating cooling system |
||
|
lubrication system |
self-lubrication |
|
|
cooling system |
spray cooling |
|
|
Accuracy |
||
|
X axis positional accuracy |
mm |
0.05（raster 0.01mm） |
|
Y/Z axis positional accuracy |
mm |
0.02 |
|
repeated positioning accuracy |
mm |
0.01 |
|
Machinery specification |
||
|
Air Pressure |
kg/cm² |
6 |
|
operating system |
/ |
SIEMENS |
|
height |
mm |
3600 |
|
floor space |
mm |
9500-15500 x 3150 /3700 |
|
weight |
kg |
17000-23000 |
