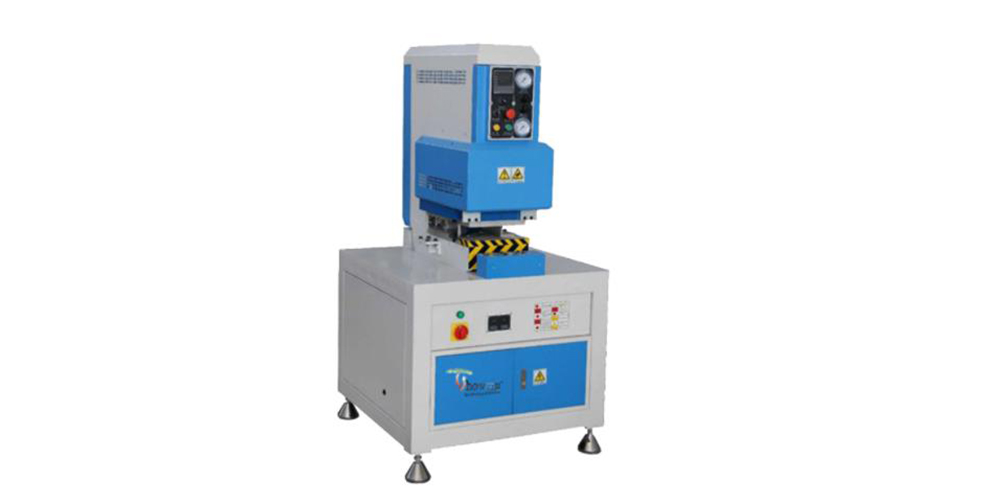

1. Used for welding colourful profiles, and may easy welding slag in a single time, with out displaying the lowest color.
2. Co-extrusion device adopts aluminum alloy material, exactly continue with high-frequency quenching.
3. Equipped with automated blowing system, can enhance paintings efficiency.
4. PLC control, pneumatic drive, easy operation, strong capability.
5. Weld three-point, two point, single point, transom, cross -transom and special angle.
| Model number | SETH-1A |
| Power supply | 220V 50Hz |
| Air consumption | 50L/min |
| Input power | 1.5kw |
| Welding profile height | 20~100mm |
| Welding profile width | ≤120mm |
| Welding mullion width | ≤110mm |
| Operation air pressure | 0.6 ~ 0.8Mpa |
| Dimension(L*W*H) | 700*900*1700mm |
