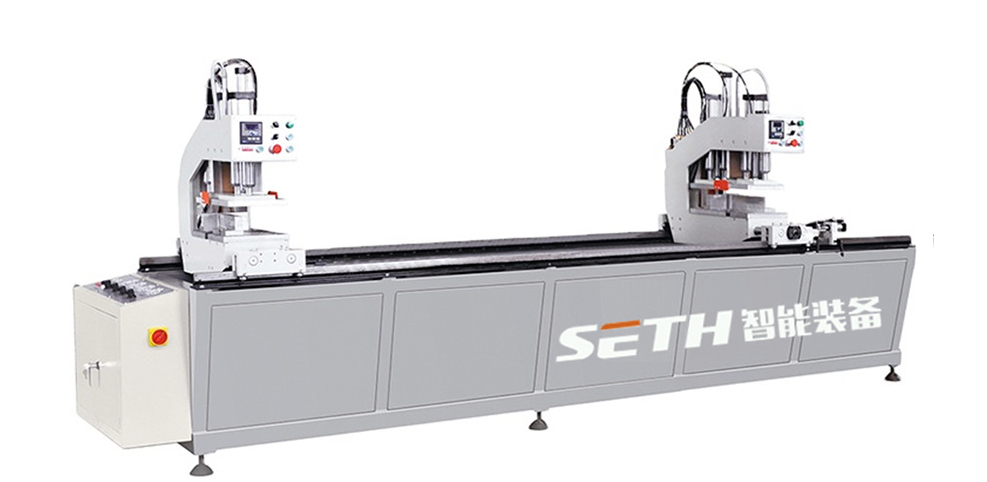

The gadget is made up of two gadget heads, gadget frame, electric powered manipulate tank and fabric assisting repute etc.
Can weld and easy the nook at one time. Specially for the coloured profile.
There are solving mechanism, urgent mechanism, heating mechanism and head container etc. On gadget head.
The gadget is used for PVC window and door welding processing; It can gain the complete welding processing individually.
The movable stand adopts non-oil lubricating bearing and linear ball bearing that make it of high precision, easy operation, and convenient maintenance.
One of the machine heads can be used for welding processing with variable angles; It is also suitable for special shaped window welding like arch window
Specification:
|
Power supply |
220v 50hz 1p |
|
Input Power |
3.5kw |
|
Air Pressure |
0.5-0.8Mpa |
|
Air Consumption |
200L/min. |
|
Welding Pvc Profile Height |
20-100mm |
|
Welding Pvc profile Width |
120mm |
|
Welding pvc profile length |
400-4300mm |
|
Overall Dimension |
4300X1000X1700mm |
|
Weight |
1800kgs |
