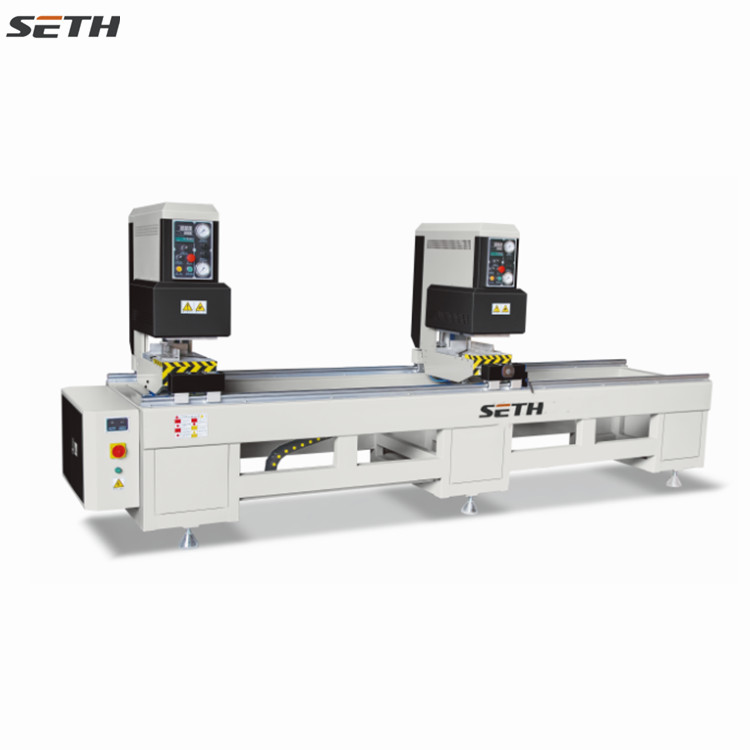

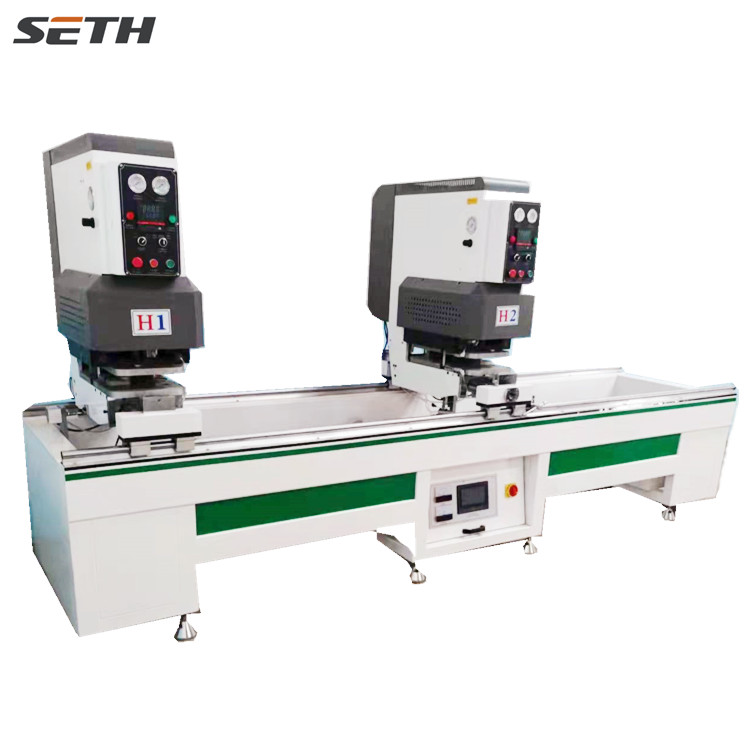

The system is made up of 2 system heads, device frame, electric powered control tank and cloth supporting fame etc.
Can weld and easy the corner at one time. mainly for the coloured profile.
There are fixing mechanism, urgent mechanism, heating mechanism and head box and many others. on gadget head.
The machine is used for % window and door welding processing; it can gain the whole welding processing for my part.
The movable stand adopts non-oil lubricating bearing and linear ball bearing that make it of high precision, easy operation, and convenient maintenance.
One of the machine heads can be used for welding processing with variable angles; It is also suitable for special shaped window welding like arch window
Specification:
|
Power supply |
220v 50hz 1p |
|
Input Power |
3.5kw |
|
Air Pressure |
0.5-0.8Mpa |
|
Air Consumption |
200L/min. |
|
Welding Pvc Profile Height |
20-100mm |
|
Welding Pvc profile Width |
120mm |
|
Welding pvc profile length |
400-4300mm |
|
Overall Dimension |
4300X1000X1700mm |
|
Weight |
1800kgs |
