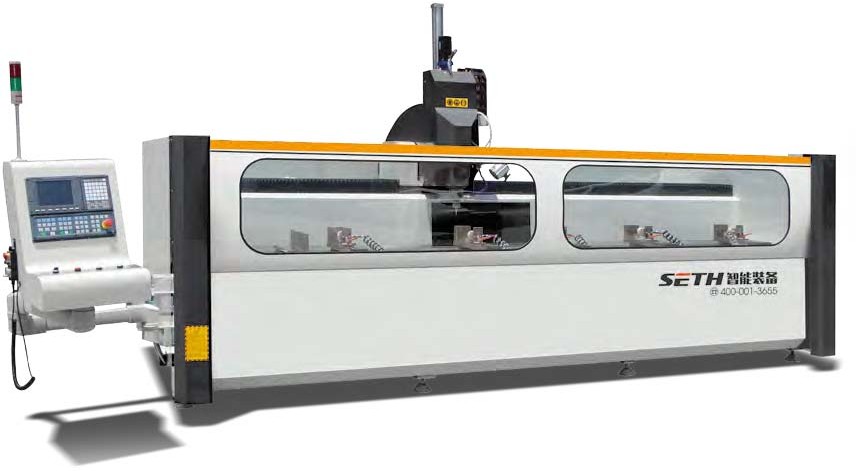

This gadget is a CNC machining middle for heavy aluminum profiles, appropriate for excessive pace machining of thick and skinny wall profiles.
The layout goal of the complete gadget is excessive-pace and excessive- precision machining. The shape layout and electricity ratio of the complete gadget are strengthened, in order that the device has excessive-power mattress and transferring parts, and the carrier performance is significantly improved.
Adopt high speed and high precision motorized spindle.
X axis adopts high precision helical gear and rack, Y axis and Z axis adopt high precision ball screw drive.
Automatic tool changing type, automatic tool changing processing according to the need of the equipment, 6 tool library design.
|
Power supply |
380V/50Hz |
|
Air pressure |
0.5~0.8MPa |
|
Total power |
13.5kW |
|
Main axis power |
S6: 9.6kW S1: 8.0kW |
|
Max rotary speed |
24000r/min |
|
X-axis longitudinal travel |
4000mm |
|
Y-axis transverse travel |
640mm |
|
Z-axis vertical travel |
440mm |
|
X-axis speed |
50m/min |
|
Y-axis speed |
15m/min |
|
Z-axis speed |
15m/min |
|
Overall dimension |
5630×2780×2500mm |
|
Weight |
About 2100kg |
