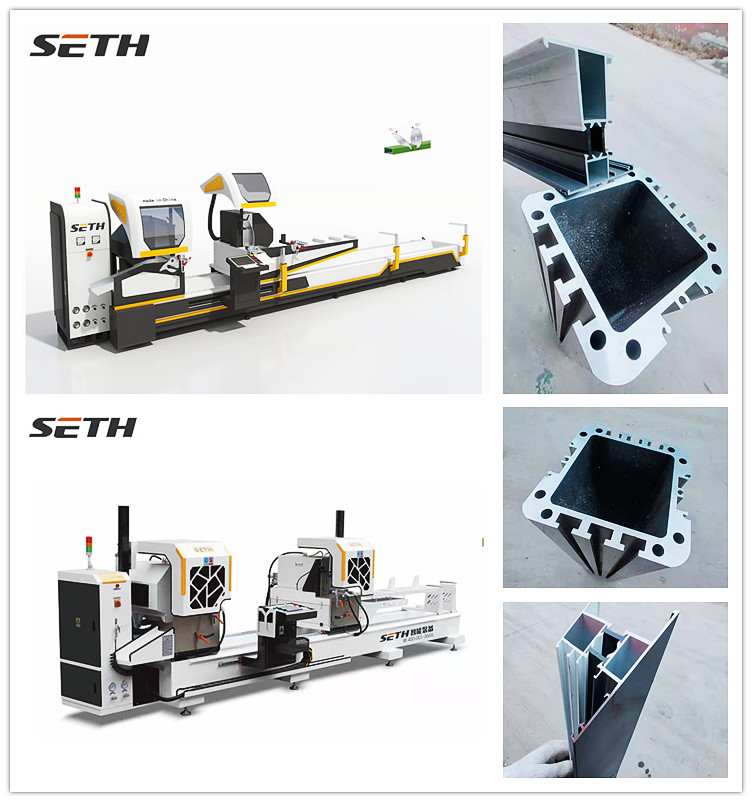

☆ Especially used for reducing industrial aluminum profiles, aluminum doors and home windows, curtain wall materials, also may be used for p.c and timber
Reducing and blanking of profiles.
☆ the machine adopts numerical control era and may whole computerized positioning cutting of different sizes of profiles.
☆ selected great aluminum carbide saw blade, outer diameter as much as 500, excessive wire speed, high processing accuracy.
☆ cnc transmission adopts excessive popular rack and pinion, excessive transmission accuracy, correct positioning, solid work.
☆ excessive precision spindle guarantees strong rotation of noticed blade and efficiently improves floor nice of workpiece.
☆ fuel-liquid damping cylinder to attain uniform feed speed regulation, smooth motion.
☆ the use of micro spray cooling tool.
☆ computerized head rotation, bidirectional positioning, clamping, single head can work independently. computerized opening and last shielding cowl,
Make operation safer.
☆ the saw blade mechanically swings into forty five° and ninety° angles, robotically opens and closes the protective cowl, in order that the operation is more secure.
☆ saw blade from again to the front, saw reducing profile is extra safe and reliable, and noticed cutting height and saw cutting width are very large.
|
Power |
380V 50HZ |
|
Saw head motor |
2×3KW/ 2840r/min |
|
Working pressure |
0.5 ~ 0.8mpa |
|
Air consumption |
60L/min |
|
Saw length |
Max4300mm MIN420mm (8200-300) |
|
Saw width |
Max 140mm |
|
Maximum cutting slope |
45°140×220mm 90°140×300mm |
|
Sawing Angle |
90°, 45° |
|
Feed speed |
stepless speed regulation 0-3m/min |
|
Saw blade specifications |
ø500 × ø30 × 4.4× Z120 |
|
Dimensions |
5800×1800×1500 mm |
|
Weight |
1650 kg |
|
Repeat constant length accuracy |
≤ 0.05mm |
|
Profile cutting Angle tolerance |
±3 ' |
|
Cutting plane flatness |
≤ 0.1m |
|
Roughness of cutting surface |
Ra12.5μm |
