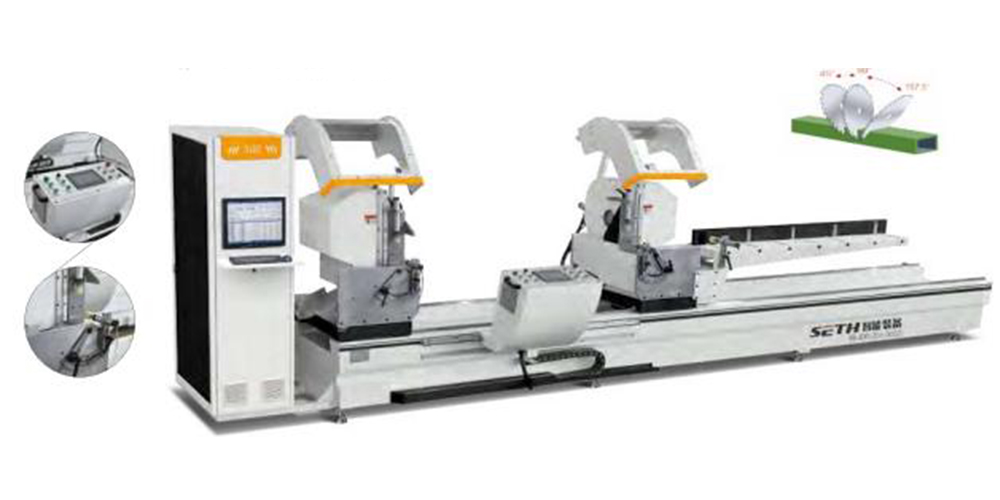

LJZ2-CNC-600*4300
High-pleasant cemented carbide noticed blades for aluminum substances are
selected, with excessive linear pace and excessive machining accuracy.
Numerical manipulate transmission adopts excessive popular gear rack, with excessive transmission precision, correct positioning and strong operation.
The excessive-precision spindle makes the noticed blade rotate stably and successfully improves the floor pleasant of the workpiece.
Gas-liquid damping cylinder realizes uniform feed pace law and strong movement.
Adopt micro spray cooling device.
The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.
With the saw blade from back to front, the sawing profile is safer and
more reliable, and the sawing height and width are very large.
|
Power supply |
380V/50Hz |
|
Saw head motor |
2×3.0kW 2840r/min |
|
Working pressure |
0.6~0.8MPa |
|
Air supply |
60L/min |
|
Cutting length |
410~4300mm |
|
Cutting width |
Max. 210mm |
|
Max. cutting slope |
45°135×180mm |
|
90°210×320mm |
|
|
Cutting angle |
90°、 45° |
|
Feeding speed |
Infinite speed variation0~3m/min |
|
Saw blade specification |
Ф600×4.4×Ф30 Z=144 |
|
Overall dimension |
5800×1900×1700mm |
|
Weight |
About 2000kg |
