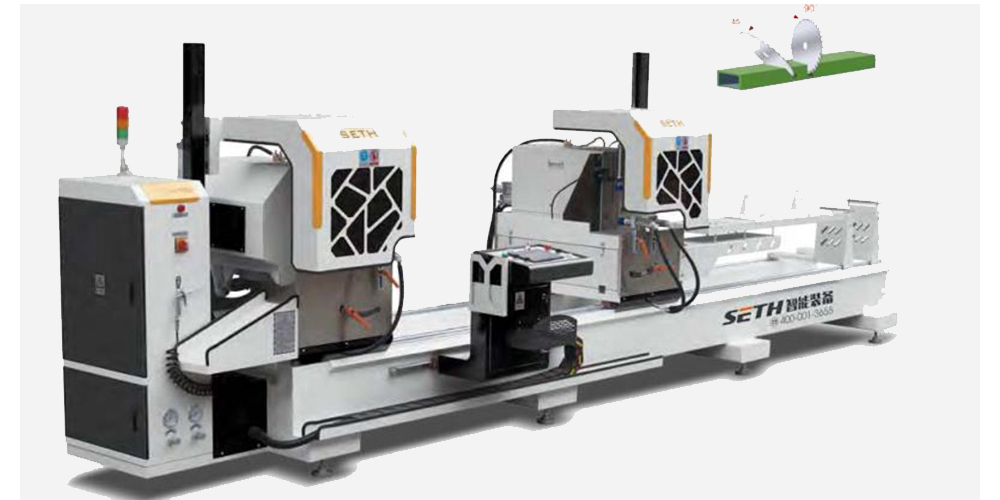

Numerical manipulate transmission adopts excessive preferred gear rack, with excessive transmission precision, correct positioning and solid operation.
The excessive-precision spindle makes the noticed blade rotate stably and efficiently improves the floor exceptional of the workpiece.
Gas-liquid damping cylinder realizes uniform feed velocity law and solid movement.
Adopt micro spray cooling device.
The device head can rotate automatically, role and clamp in directions, and might paintings independently with a unmarried device head.
Automatically opening and closing the protective cover,Make the operation safer.
The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.
With the saw blade from back to front, the sawing profile is safer and more reliable, and the sawing height and width are very large.
| Power supply | 380V/50Hz |
| Saw head motor | 2×3.0kW 2840r/min |
| Working pressure | 0.6~0.8MPa |
| Air supply | 60L/min |
| Cutting length | 380~4300mm |
| Cutting width | Max. 135mm |
| Max. cutting slope | 45°135×180mm |
| 90°135×220mm | |
| Cutting angle | 90°、 45° |
| Feeding speed | Infinite speed variation0~3m/min |
| Saw blade specification | Ф500×4.4×Ф30 Z=120 |
| Overall dimension | 5800×1800×1500mm |
| Weight | About 1750kg |
＊Accuracy of repeated fixed length：≤ 0.05mm
＊Allowance of section cutting angle：±3′
＊Flatness of cutting profile：≤ 0.05mm
＊Roughness of cutting profile：Ra 12.5μm
