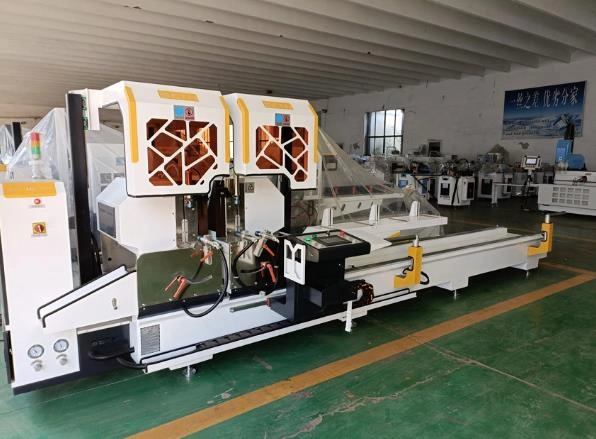

LJZ2-CNS-450*3700A
High precision spindle makes the saw blade rotate stably.
Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
Adopt micro spray cooling device to save the processing cost of doors and windows (alternative).
When the machine works, the saw blades with two saw heads can cut at the same time or separately.
With the saw blade from back to front, the sawing profile is safer and more reliable, and the sawing height and width are very large.
The saw blade can automatically swing to the required angle of 45° and 90° .
|
Power supply |
380V/50Hz |
|
Saw head motor |
2×2.2kW 3200r/min |
|
Working pressure |
0.6~0.8MPa |
|
Air supply |
60L/min |
|
Cutting length |
550~3700mm |
|
Cutting width |
Max. 120mm |
|
Cutting height |
Max. 160mm |
|
Max. cutting slope |
45°120×170mm |
|
90°120×200mm |
|
|
Cutting angle |
45°~157.5° |
|
Feeding speed |
Infinite speed variation0~3m/min |
|
Saw blade specification |
Ф450×4.4×Ф30 Z=120 |
|
Overall dimension |
7800×1500×2040mm |
|
Weight |
About 1050kg |
