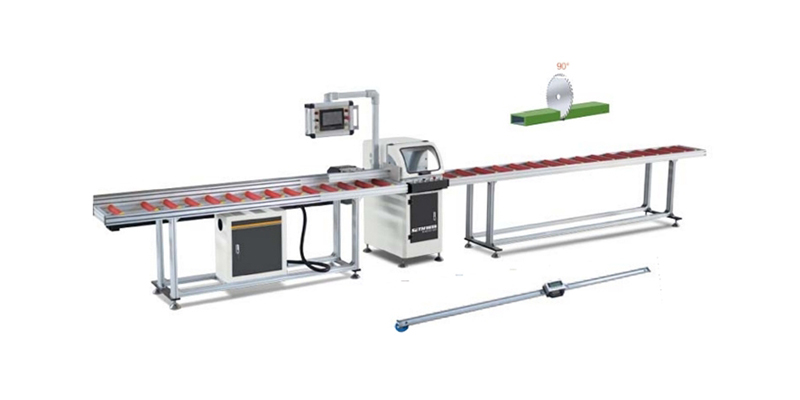

LJLY-CNC-350
It is suitable for 90° precision cutting process of aluminum alloy glass wire pressing profile, and is suitable for mass continuous production.
Bluetooth transmission is adopted, which is accurate and does not need secondary modification.
Equipped with tool detection system to improve service life.
Equipped with wireless hand-held transmission system, automatic material reduction function.
The standard coding function is convenient for customers to use the material type without making mistakes, thus improving the utilization rate of the site.
It has high power and strong load capacity, providing guarantee for later use.
|
Power supply |
380V/50Hz |
|
Input power |
1.5kw |
|
Motor speed |
2800r/min |
|
Operating pressure |
0.6~0.8MPa |
|
Air consumption |
15L/min |
|
Cutting length |
200~2500mm |
|
Cutting width |
70mm |
|
Cutting height |
80mm |
|
Sawing angle |
90° |
|
Saw blade specification |
Ф400×3.2×Ф30 Z=100 |
|
Cutting accuracy |
±0.1mm |
|
Cutting angle error |
±5′ |
|
Overall dimension |
8500×1200×1100mm |
|
Weight |
About 400kg |
