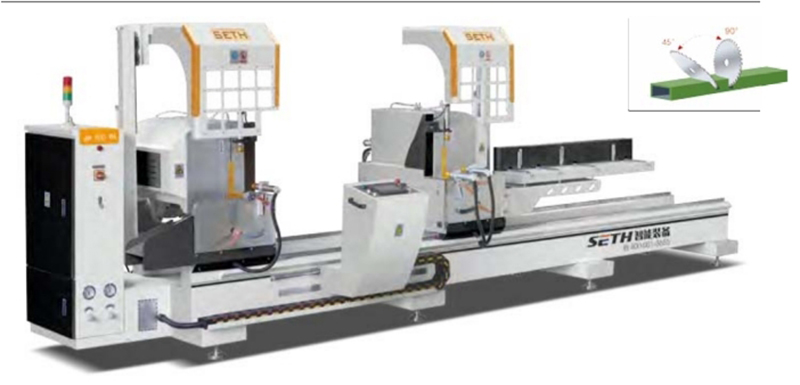

LJB2B-CNC-500*6000
The cutting angle is auto adjustable through the imported servo motor between 45° to 157.5° Imported control system can accomplish cutting optimization.
Several profile processing dimensions can be input in one time and
make continuous cutting.
The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
The airproof device under the worktable has wonderful crumbs- clearing effect.
The following saw cover keeps it working in the clean environment.

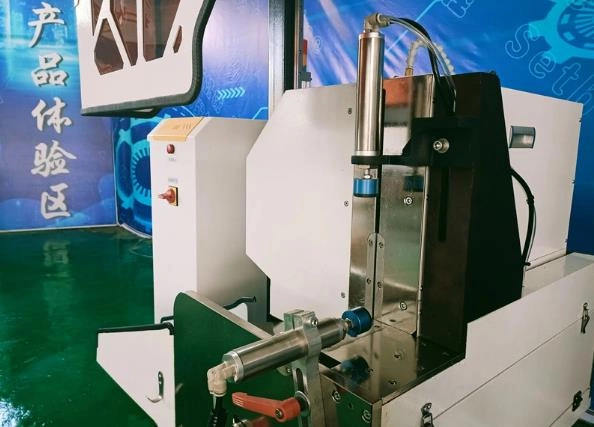

The profile is clamped by two cylinders in every head, and kept the cutting security.
|
Power supply |
380V/50Hz |
|
Saw head motor |
2×3.0kW 2840r/min |
|
Working pressure |
0.6~0.8MPa |
|
Air supply |
60L/min |
|
Cutting length |
90°360~6000mm |
|
Cutting width |
Max. 135mm |
|
Cutting height |
Max. 230mm |
|
Max. cutting slope |
45°135×180mm |
|
90°135×230mm |
|
|
Cutting angle |
45°~157.5° |
|
Feeding speed |
Infinite speed variation0~3m/min |
|
Saw blade specification |
Ф500×4.4×Ф30 Z=120 |
|
Overall dimension |
7800×1500×2040mm |
|
Weight |
About 2500kg |
