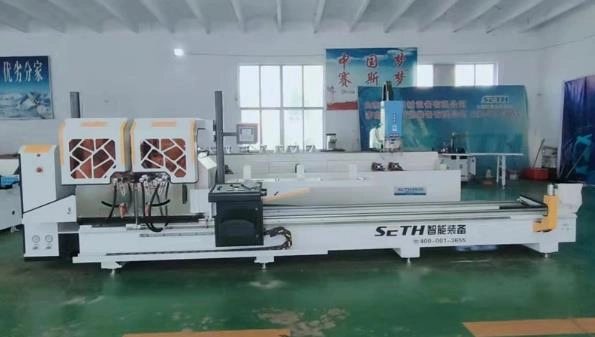

LJZ2-CNS-500*4300
The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.
Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
Adopt micro spray cooling device.
The machine head can rotate automatically, position and clamp in two directions, and can work independently with a single machine head.
Automatic opening and closing of protective cover makes operation safer.
The saw blade automatically swings at an angle of 45° and 90° , and the protective cover automatically opens and closes, which makes the operation safer.
|
Power supply |
380V/50Hz |
|
Saw head motor |
2×3.0kW 2840r/min |
|
Working pressure |
0.6~0.8MPa |
|
Air supply |
60L/min |
|
Cutting length |
380~4300mm |
|
Cutting width |
Max. 135mm |
|
Cutting height |
Max. 220mm |
|
Max. cutting slope |
45°135×180mm |
|
90°135×220mm |
|
|
Cutting angle |
90°、 45° |
|
Feeding speed |
Infinite speed variation0~3m/min |
|
Saw blade specification |
Ф500×4.4×Ф30 Z=120 |
|
Overall dimension |
5800×1800×150mm |
|
Weight |
About 1450kg |
