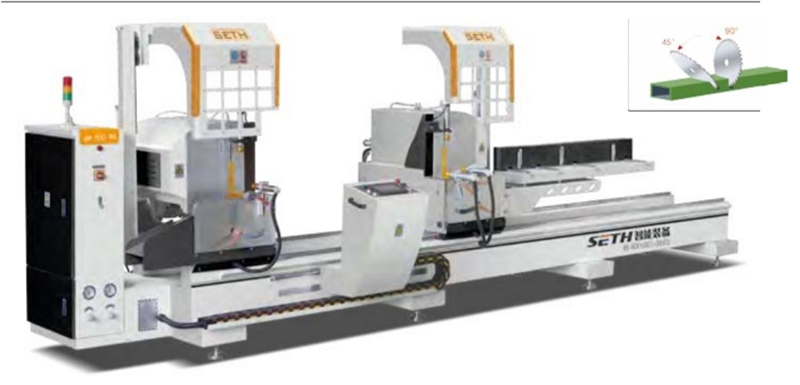

LJZ2-CNC-600*4300
High-quality cemented carbide saw blades for aluminum materials are
selected, with high linear speed and high machining accuracy.
Numerical control transmission adopts high standard gear rack, with high transmission precision, accurate positioning and stable operation.
The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.
Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
Adopt micro spray cooling device.
The saw blade automatically swings at an angle of 45° and 90°, and the protective cover automatically opens and closes, which makes the operation safer.
With the saw blade from back to front, the sawing profile is safer and
more reliable, and the sawing height and width are very large.
|
Power supply |
380V/50Hz |
|
Saw head motor |
2×3.0kW 2840r/min |
|
Working pressure |
0.6~0.8MPa |
|
Air supply |
60L/min |
|
Cutting length |
410~4300mm |
|
Cutting width |
Max. 210mm |
|
Max. cutting slope |
45°135×180mm |
|
90°210×320mm |
|
|
Cutting angle |
90°、 45° |
|
Feeding speed |
Infinite speed variation0~3m/min |
|
Saw blade specification |
Ф600×4.4×Ф30 Z=144 |
|
Overall dimension |
5800×1900×1700mm |
|
Weight |
About 2000kg |
