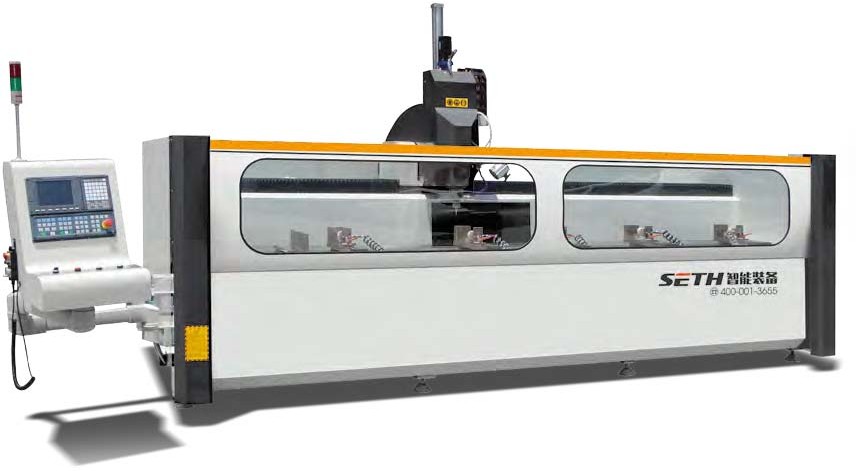

This machine is a CNC machining center for heavy aluminum profiles, suitable for high speed machining of thick and thin wall profiles.
The design target of the whole machine is high-speed and high- precision machining. The structure design and power ratio of the whole machine are strengthened, so that the equipment has high-strength bed and moving parts, and the service efficiency is greatly improved.
Adopt high speed and high precision motorized spindle.
X axis adopts high precision helical gear and rack, Y axis and Z axis adopt high precision ball screw drive.
Automatic tool changing type, automatic tool changing processing according to the need of the equipment, 6 tool library design.
| Power supply | 380V/50Hz |
| Air pressure | 0.5~0.8MPa |
| Total power | 13.5kW |
| Main axis power | S6: 9.6kW S1: 8.0kW |
| Max rotary speed | 24000r/min |
| X-axis longitudinal travel | 4000mm |
| Y-axis transverse travel | 640mm |
| Z-axis vertical travel | 440mm |
| X-axis speed | 50m/min |
| Y-axis speed | 15m/min |
| Z-axis speed | 15m/min |
| Overall dimension | 5630×2780×2500mm |
| Weight | About 2100kg |
