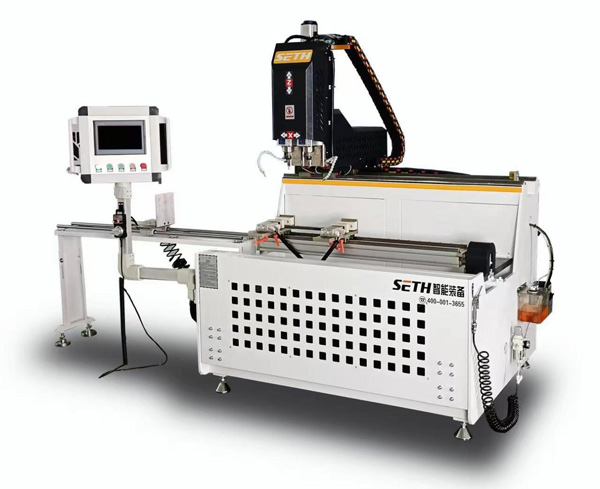

1.X axis high-precision helical gear and rack drive,Y axis, Z axis using high-precision ball screw drive, smooth running, high precision
2, Turn over the beam with the square rail, with the tightening module, easy adjustment
3· Table flip 180". -90~0"~+90", profile once clamping can achieve three surface processing, processing deep hole (shaped hole), through the table to achieve deep hole processing, high efficiency, ensure accuracy
|
Power Supply |
380V/50Hz |
|
Air Pressure |
0.6-0.8MPa |
|
Total Power |
9kw |
|
Main Axis Power |
8.5kw |
|
Max Rotary Speed |
18000r/Min |
|
X-Asis Longitudinal Travel |
1200mm |
|
Y-Axis Vertical Travel |
300mm |
|
Z-Axis Vertical Travel |
280mm |
|
X-Asis Speed |
50m/Min |
|
Y-Axis Speed |
15m/Min |
|
Z-Axis Speed |
15m/Min |
|
Overall Dimension |
2200*1600*1950 |
|
Weight |
2000kg |
|
CNC system |
Hanslaser |
|
electric parts |
Schneider |
|
air cylinder |
AirTAC |
|
solenid valve |
AirTAC |
