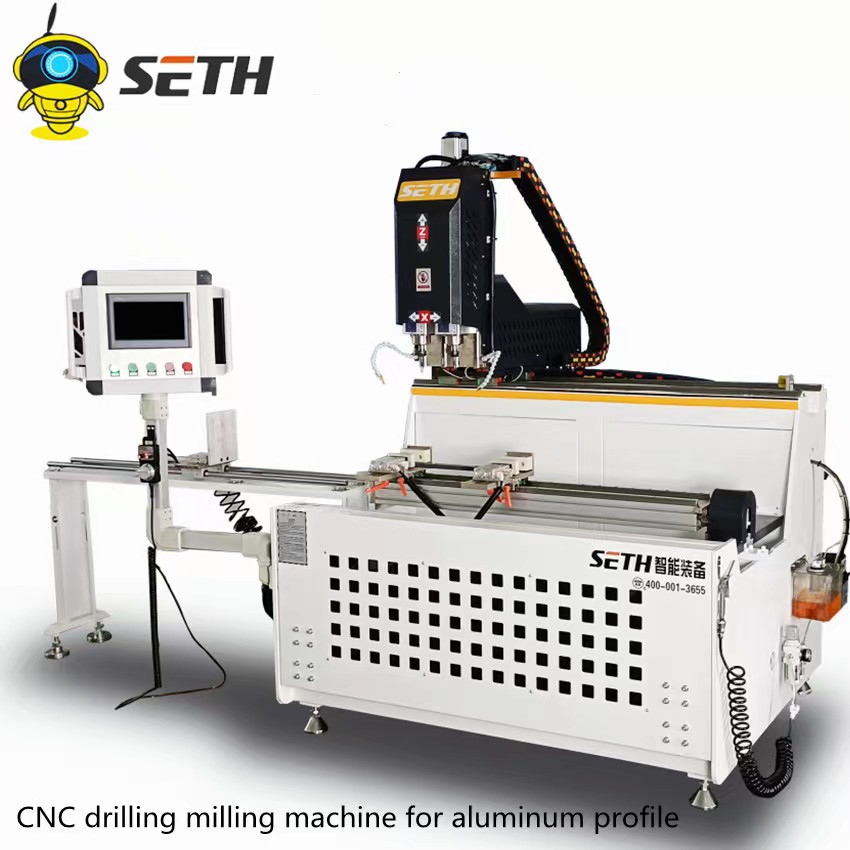

CNC system is adopted. Equipped with professional CAD-CAM programming software. Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
All motion pairs are imported guide rails and sliding blocks. X axis is driven by high-precision helical gear and helical rack. Y axis and Z axis are driven by high-precision ball screw. Smooth transmission, effectively improve the accuracy of the whole machine.
Table flipped 180 degrees. -90 degrees ~ 0 degrees ~ +90 degrees, a profile clamping can achieve three surface processing
When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table to improve efficiency and good quality.
Adopt manual pump oil supply system, tool adopts system control spray cooling device. The main electrical parts, circuit breakers, AC contactors are made of Schneider products. The main parts of the machine tool are made of steel structure after aging treatment.
Parameter：
|
Power supply |
380V 50Hz |
|
Total power |
6.5Kw |
|
Motorized spindle power |
S1: 3.5kw |
|
Work pressure |
0.6～0.8MPa |
|
Max. speed |
18000rpm |
|
X axis travel |
1200mm |
|
Y axis travel |
500mm |
|
Z axis travel |
350mm |
|
X axis speed |
50000mm/min |
|
Y axis Z axis speed |
15000mm/min |
|
dimension |
2200x1600x2200mm |
|
weight |
850kg |
Standard configuration:
|
Item |
name |
brand |
origin |
|
1 |
auto-circuit breaker |
Schneider |
France |
|
2 |
phase sequence protection relay |
Schneider |
France |
|
3 |
a.c. contactor |
Schneider |
France |
|
4 |
switching power |
Schneider |
France |
|
5 |
relay |
Schneider |
France |
|
6 |
Low pressure switch button |
Schneider |
France |
|
7 |
terminal |
Honeywell |
USA |
|
8 |
motor |
Semic |
Italy |
|
9 |
proximity switch |
Autonicus |
Korea |
|
10 |
guide rail |
HIWIN |
Taiwan |
|
11 |
screw |
ABB |
Taiwan |
|
12 |
solenoid valve |
Airtac |
Taiwan |
|
13 |
numerical control system |
E-code technology |
shenzhen |
|
14 |
touch screen |
Kunlun tongtai |
shenzhen |
|
17 |
transducer |
aerfa |
shenzhen |
|
18 |
High flexibility wire and cable |
Yongheng |
JIangsu |
|
19 |
air cylinder |
Baidi |
shandong |
