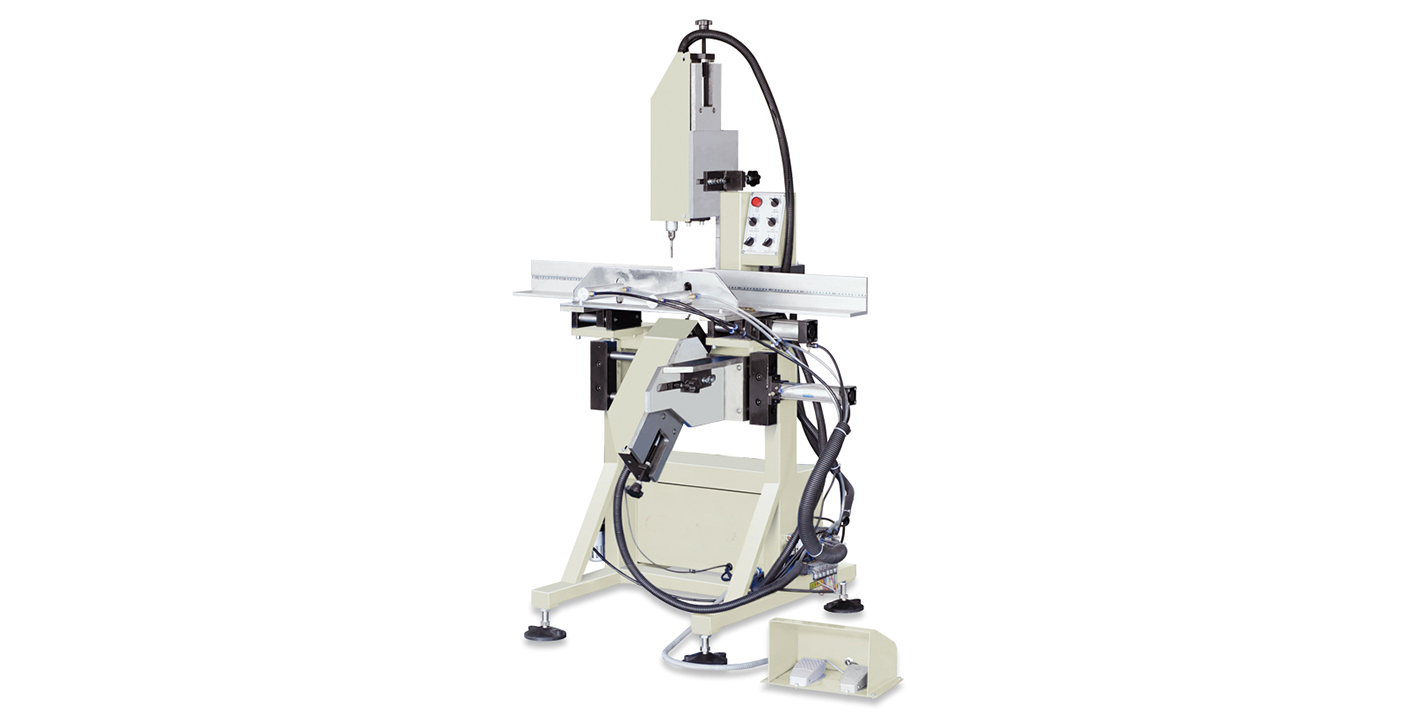

1. used for 45° glass glazing bead slicing and the angle milling and reducing.
2. one time could slicing pieces of glass glazing bead.
3. with measure rulers, it could processing the glazing bead in keeping with the wanted size with a view to make certain the precision of the processing size and do away with the fan body assembly blunders.
4. 4 pieces noticed blade make certain unique reducing, double reducing one every give up to mill the hook foot.
5. Vertical clamping device and special designed cutting jig ensure stable positioning.
6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.
|
Parameter |
|
|
Air Pressure |
0.4~0.7MPa |
|
Air consumption |
80L/min |
|
Input Voltage |
380V 50~60Hz or As Customer need |
|
Input Power |
2*0. 75Kw |
|
Cutting range |
320-1800mm |
|
Cutting Width |
120mm |
|
Cutting profile height |
29mm |
|
Overall size |
1900*700*1350 mm |
|
Weight |
300kg |
