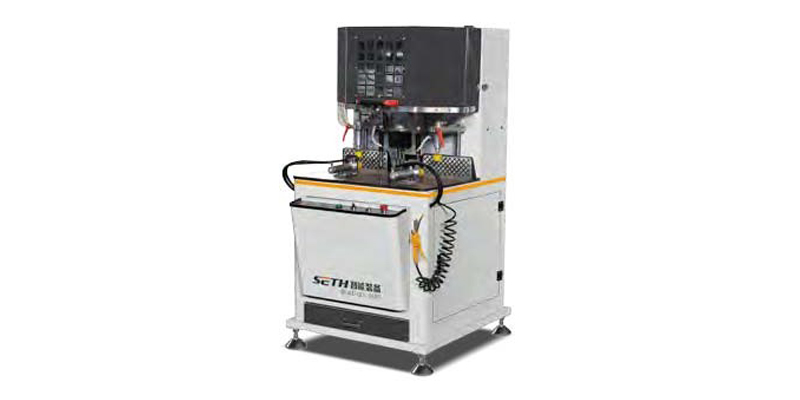

SHLJ-100
Used for all kinds of aluminum alloy transmission box, hand lock, milling and one-time forming.
Adopt double shaft combined cutting, special equipment for hand lock of transmission box.
Automatic spray cooling tool, improve tool life.
A clamping can be completed profiles perpendicular to each other in the two sides of the hole.
The upper slot is formed by a single cutting with a professional cutter, and the length of the slot can be adjusted at will.
|
Power supply |
380V/50Hz |
|
Total motor power |
1.5kW+2.2kW |
|
Air consumption |
2L/min |
|
Operating pressure |
0.6~0.8MPa |
|
Motor shaft diameter |
Ф12mm |
|
Number of milling cutter |
Ф14mm |
|
Worktable dimension |
690×340mm |
|
Overall dimension |
800×695×1000mm |
|
Weight |
About 200kg |
