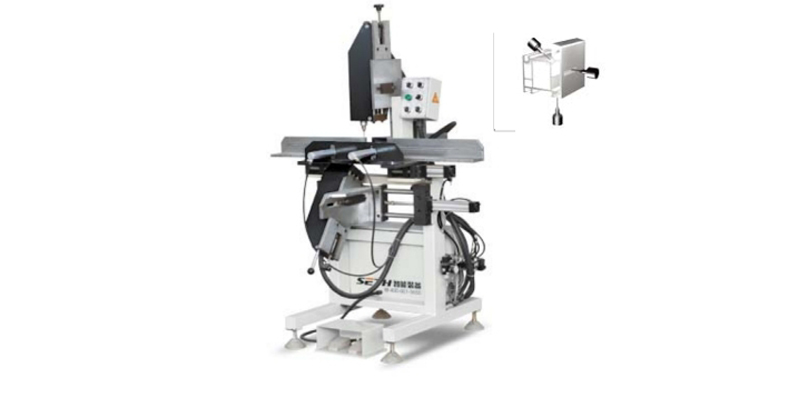

LXCA-60
Used for processing various types of drainage grooves and air pressure balance grooves of PVC Profile.
Automatic tool changing for the under machine head, a clamping automatic complete the processing of profiles on both ends of the tank.
Independent milling feeding system, no need of special maintenance, easy operation.
Convenient adjustment of tool position, is suitable for different profiles.
Water slot milling length adjustable within 100mm, wide adaptability.
|
Power supply |
380V/50Hz |
|
Rating power
|
2.2kW |
|
Motor rotary speed
|
2800r/min
|
|
Cutting Width |
120mm |
|
Cutting height |
20~60mm |
|
Cutting length |
300~1700mm |
|
Overall dimension |
1350×600×1350mm |
|
Weight |
About 200kg |
