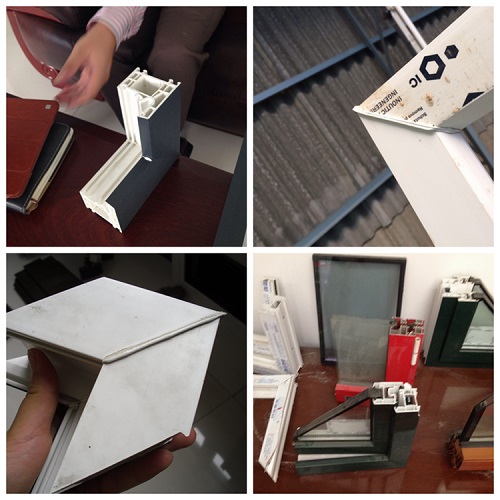

1. Used for welding colorful profiles, and can clean welding slag in one time, without showing the bottom color.
2. Co-extrusion tool adopts aluminum alloy material, precisely proceed with high-frequency quenching.
3. Equipped with automatic blowing system, can improve work efficiency.
4. PLC control, pneumatic drive, simple operation, stable capability.
5. Weld three-point, two point, single point, transom, cross -transom and special angle.
| Model number | SETH-1A |
| Power supply | 220V 50Hz |
| Air consumption | 50L/min |
| Input power | 1.5kw |
| Welding profile height | 20~100mm |
| Welding profile width | ≤120mm |
| Welding mullion width | ≤110mm |
| Operation air pressure | 0.6 ~ 0.8Mpa |
| Dimension(L*W*H) | 700*900*1700mm |
