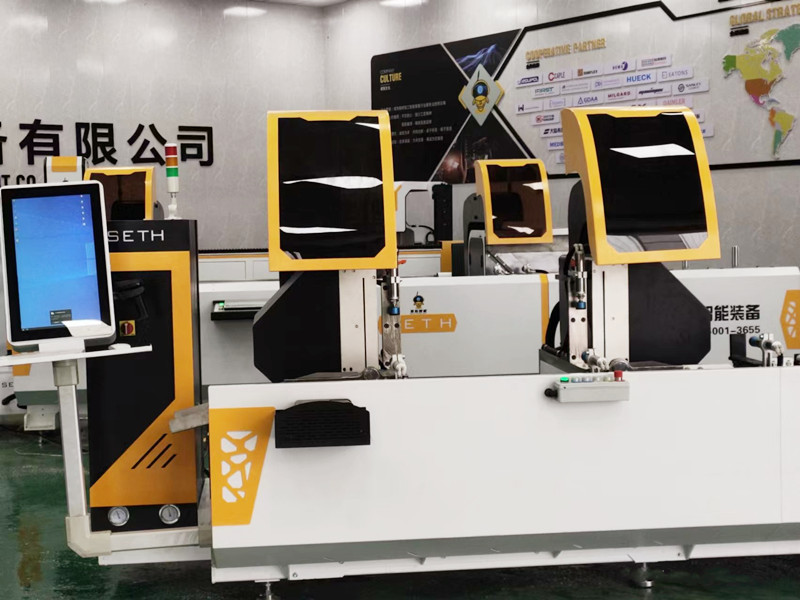

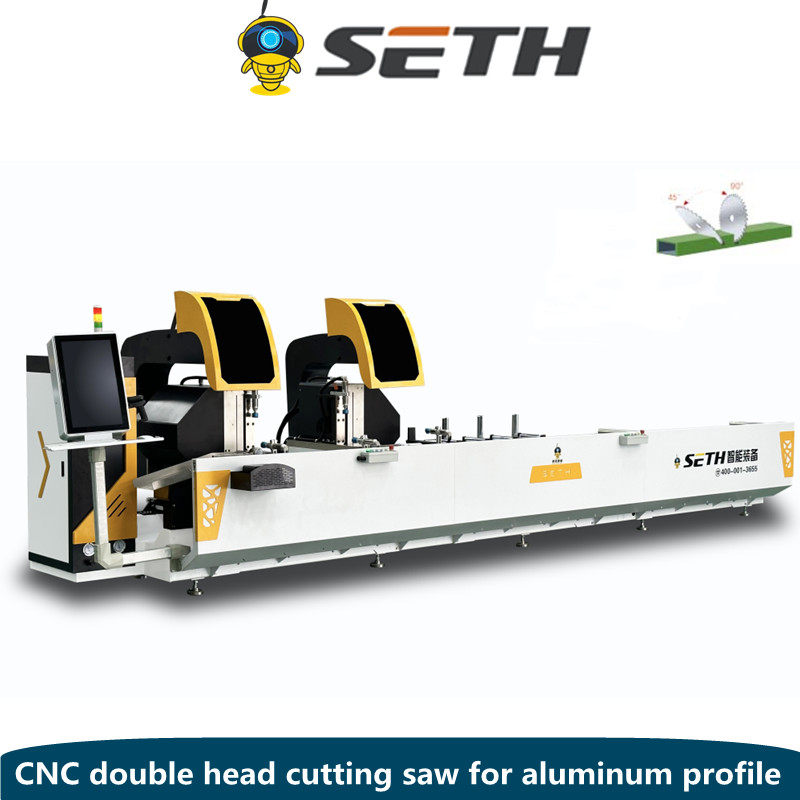

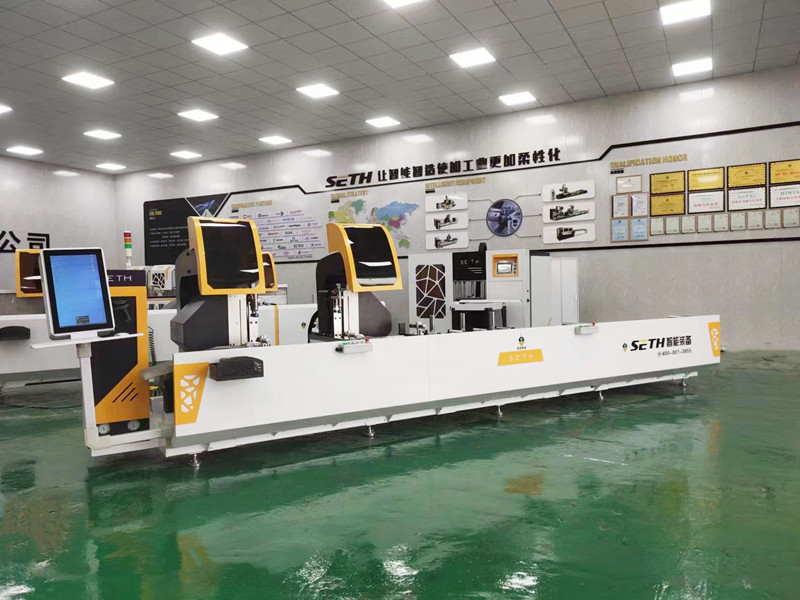

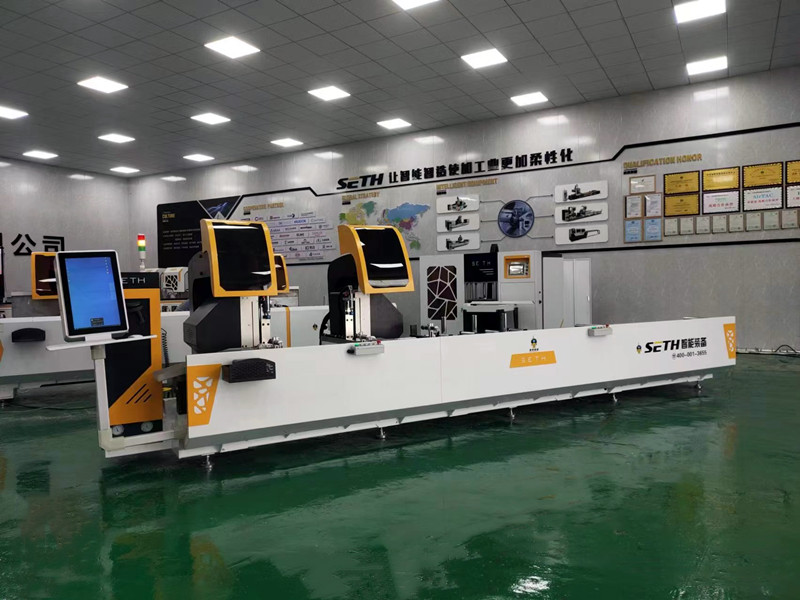

Aluminum CNC double head cutting saw with 550mm saw blade
☆ The machine adopts numerical control .
☆ The machine adopts numerical control technology and can complete automatic positioning
cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide or diamond saw blade, outer diameter up to
500,550mm,600mm high wire speed,high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy,
accurate positioning, stable work.
The new appearance level and unique mechanical design structure make the product more stable, easier to cut profiles and smoother cutting surface.
Foolproof operation without skilled workers, to solve the factory recruitment difficulties,
label printing function, error prevention function: profile error exceeds.

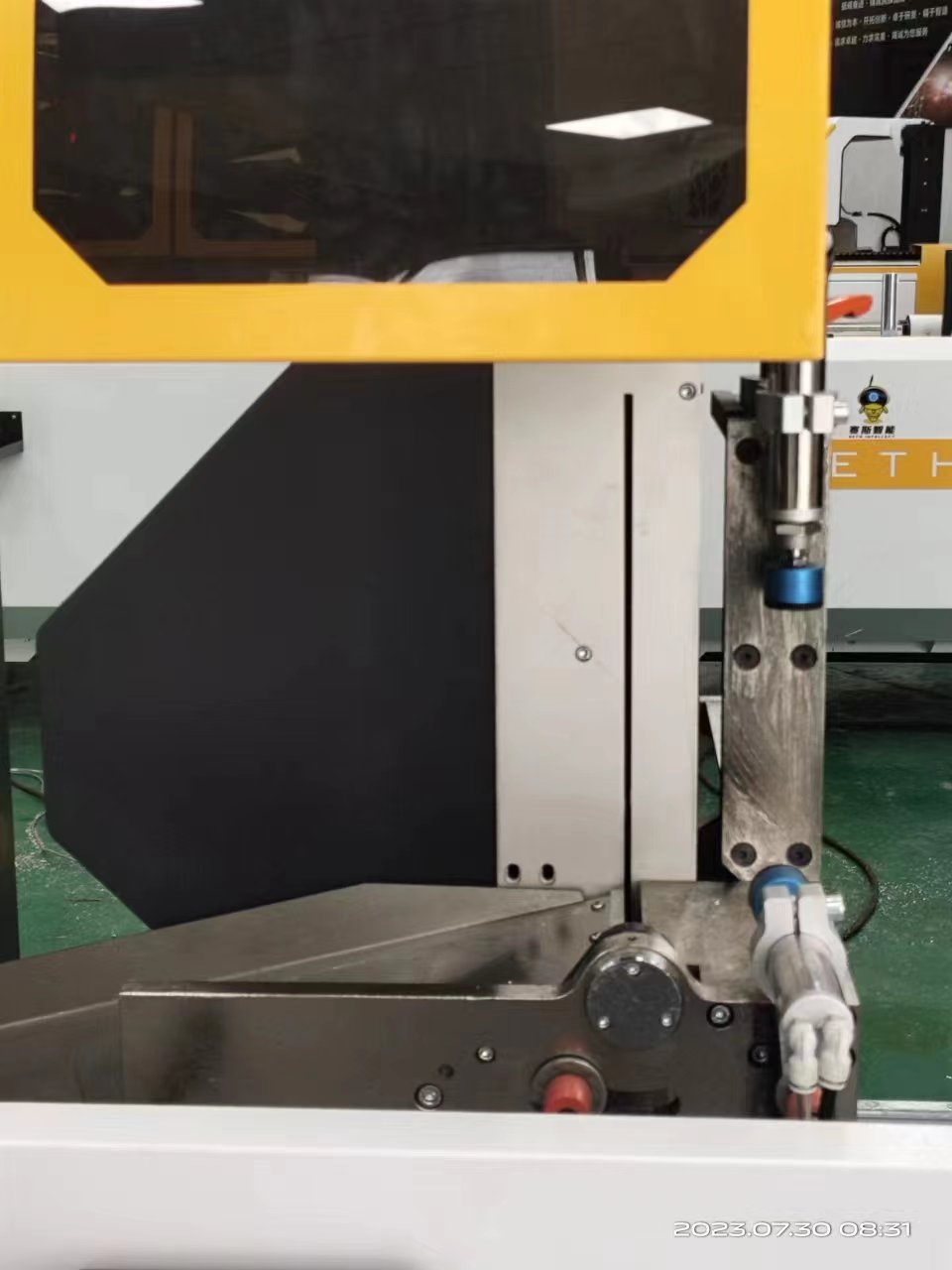

☆ High precision spindle ensures stable rotation of saw blade and
effectively improves surface quality of workpiece.

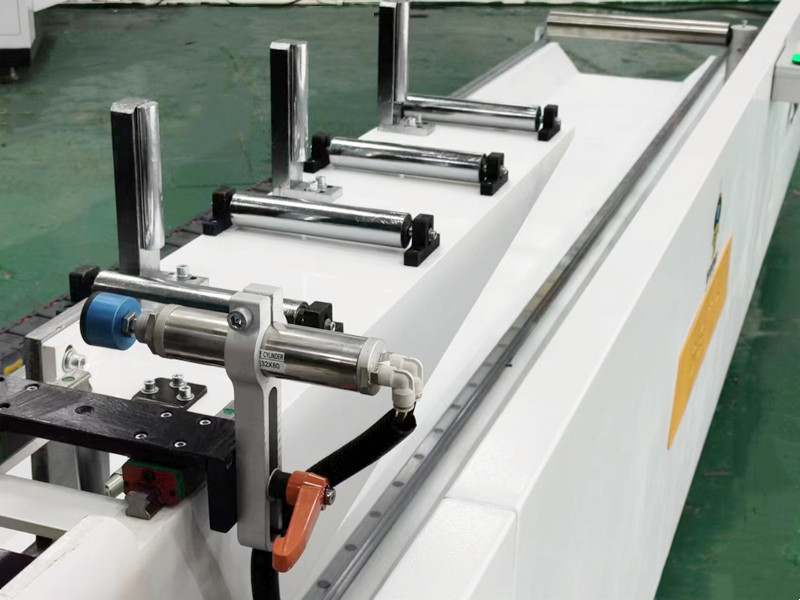

☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently.
Automatic opening and closing protective cover,make operation safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height
and saw cutting width are very large.echnology and can complete automatic positioning cutting of different sizes of profiles.
|
Power |
380V 50HZ |
|
Saw head motor |
2×3KW/ 2840r/min |
|
Working pressure |
0.6 ~ 0.8mpa |
|
Air consumption |
60L/min |
|
Saw length |
Max4300mm MIN420mm |
|
Saw width |
Max 140mm |
|
Maximum cutting slope |
45°140×220mm 90°140×300mm |
|
Sawing Angle |
90° , 45° |
|
Feed speed |
stepless speed regulation 0-3m/min |
|
Saw blade specifications |
ø550 × ø30 × 4.4× Z120 |
|
Dimensions |
5800×1800×1500 mm |
|
Weight |
1750 kg |
|
Repeat constant length accuracy |
≤ 0.05mm |
|
Profile cutting Angle tolerance |
±3 ' |
|
Cutting plane flatness |
≤ 0. 1m |
|
Roughness of cutting surface |
Ra12.5μm |
