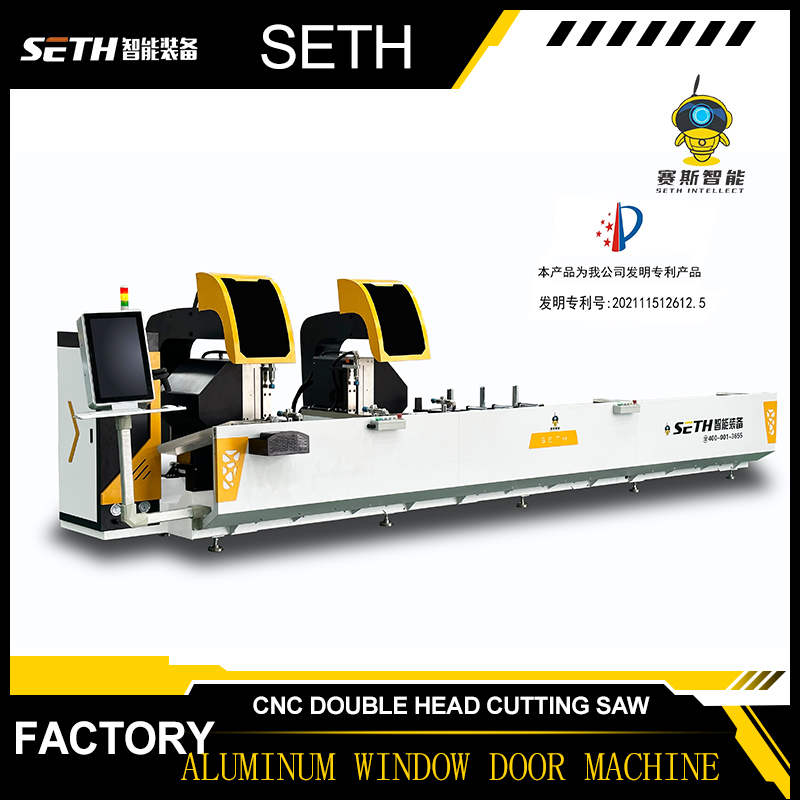

Main specification and technical parameter
|
Power supply |
380v 50hz |
|
Saw head motor |
2 × 3KW/3000r/min |
|
Working pressure |
0.6~ 0.8MPa |
|
Air consumption |
60L/min |
|
Cutting length |
Max5000mm min 280mm(Short cutting function is the shortest 200mm) |
|
Cutting width |
Max 150mm |
|
Max. Cutting slope |
45°150× 170mm 90°150×345mm |
|
Max. square tube cutting |
150×200mm |
|
Cutting angle |
45degree 90degree |
|
Feeding speed |
continuously viable 0-4m/min |
|
Saw blade specification |
ø500 × ø30 × 4.4 × Z120 |
|
dimension |
6550× 1300× 1800 mm |
|
weight |
2000kgs |
|
Accuracy of repeated fixed length |
≤ 0.1mm |
|
Allowance of section cutting angle |
± 3’ |
|
Flatness of cutting profile |
≤ 0.02m |
|
Roughness of cutting profile |
Ra 12.5 μm |
|
Item |
name |
Brand |
Origin |
|
1 |
CNC system |
Delta |
Taiwan |
|
2 |
Computor PC |
Delta |
Taiwan |
|
3 |
touch screen |
Delta |
Taiwan |
|
4 |
driver |
Delta |
Taiwan |
|
5 |
servo motor |
Delta |
Taiwan |
|
6 |
automatic breaker |
Schneider |
France |
|
7 |
phase sequence protection relay |
Schneider |
France |
|
8 |
a.c. contactor |
Schneider |
France |
|
9 |
Schneider |
France |
|
|
10 |
switching power supply |
Schneider |
France |
|
11 |
relay |
Schneider |
France |
|
12 |
Low voltage switch button |
Schneider |
France |
|
13 |
terminal |
Honeywell |
USA |
|
14 |
|
GMT |
Shenzhen china |
|
15 |
Approach switch |
AUTONICS |
Korea |
|
16 |
Reducer |
SHIMPO |
Japan |
|
17 |
diamond saw blade |
WAGEN |
Japan |
|
18 |
Guide rail |
HIWIN |
Taiwan |
|
19 |
Air cylinder |
Airtac |
Taiwan |
|
20 |
cylinder |
Airtac customized |
Taiwan |
|
21 |
Rotary lifting system |
Airtac customized |
Taiwan |
|
22 |
solenoid valve |
Airtac |
Taiwan |
|
23 |
High flexibility wire and cable |
Yongheng |
Jiangsu |
spare parts kits
Spray assembly,
switch button,
pneumatic connector,
cylinder,
pressure hammer,
solenoid valve,
air pipe
Electric motor
