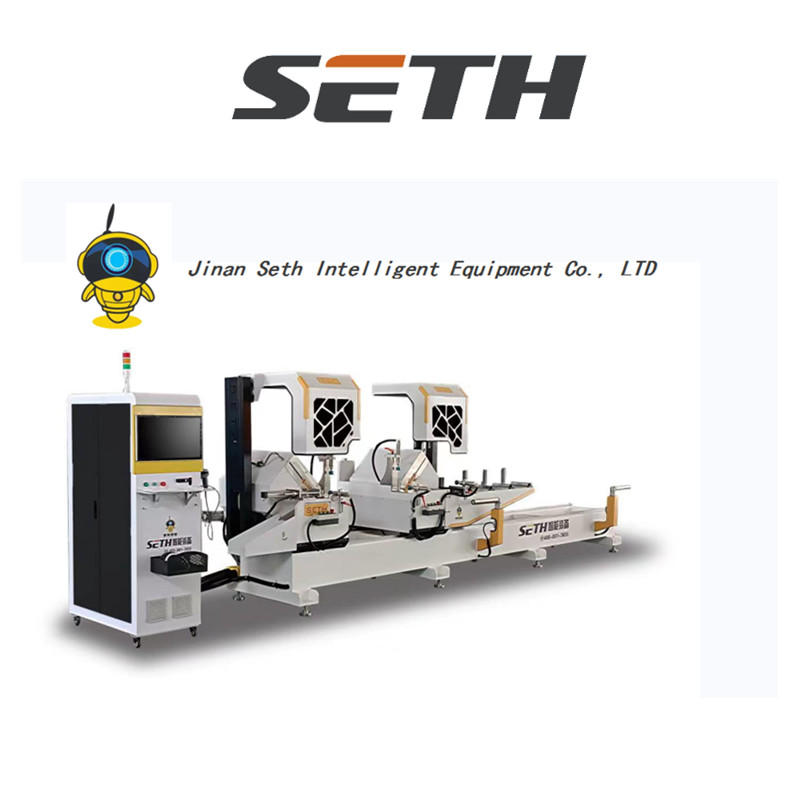

CNC Double -head Precision Cutting Saw

1. Numerical control system ensures the precise cutting size
2. The imported ball screw rod drives the machine to move horizontally with precise repeat orientation.
3. You can set a series of data to realize the continuous cutting according to the preset programme.
4. Use high hardness diamondsaw blade and cutting feed motion guide rail is imported linear guide rail pair.

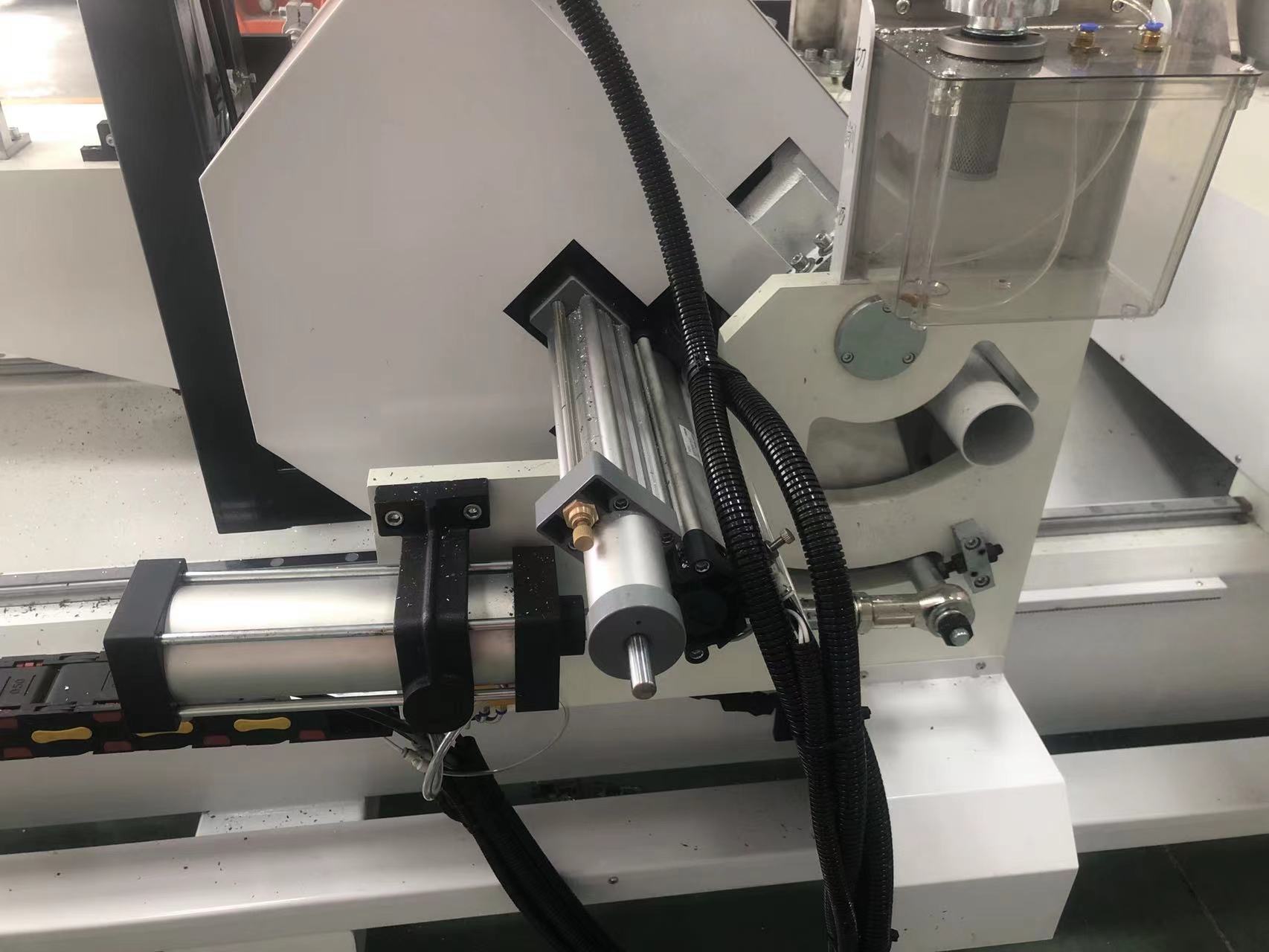

5. The blade feed is powered by the hydraulic damping cylinder.
6. Wide cutting range max length up to 4300mm two cutting angle 90°/45°.

Category :
Aluminum Cutting Saw
Browse number : ...
Release time : 2026-06-11

Consult now

Detailed Description

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	290~4300mm
Cutting width	Max. 175mm
Cutting height	Max. 280mm
Max. cutting slope	45°175×245mm 90°175×280mm
Cutting angle	90° 45°
Feeding speed	0~3m/min
Saw blade specification	Φ550x4.4xΦ30 Z=120
Overall dimension	5800x1800x1600mm
weight	1900kg

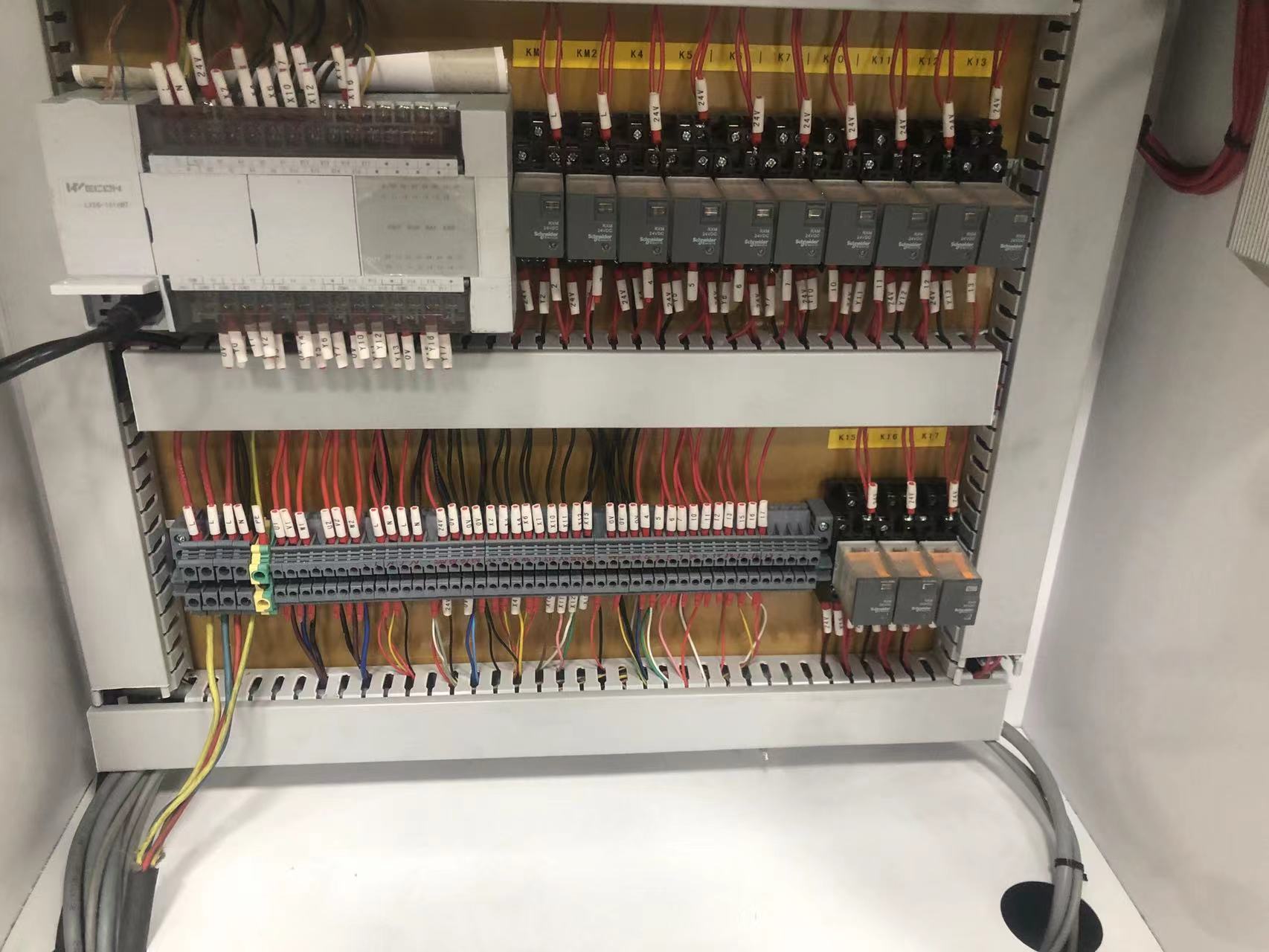

Item	Product name	Brand	origin
1	CNC system	Delta	Taiwan
2	Computer PC	Delta	Taiwan

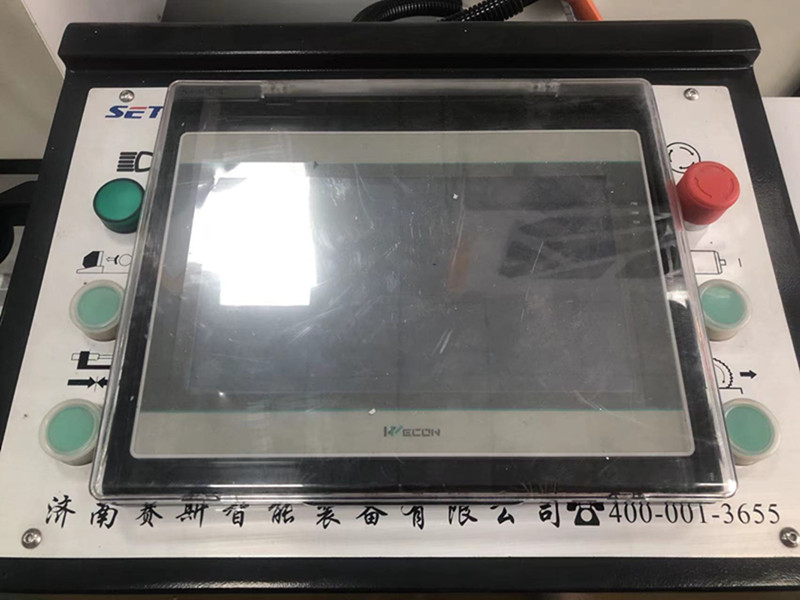

3	Touch screen	Delta	Taiwan
4	actuator	Incalcu	Sino-Japanese joint venture
5	motor	Incalcu	Sino-Japanese joint venture
6	servo motor	Schneider	France
7	phase sequence protection relay	Schneider	France
8	a.c. contactor	Schneider	France
9	switching power supply	Schneider	France
