Aluminum Door Making Machine CNC Drilling Milling Machine

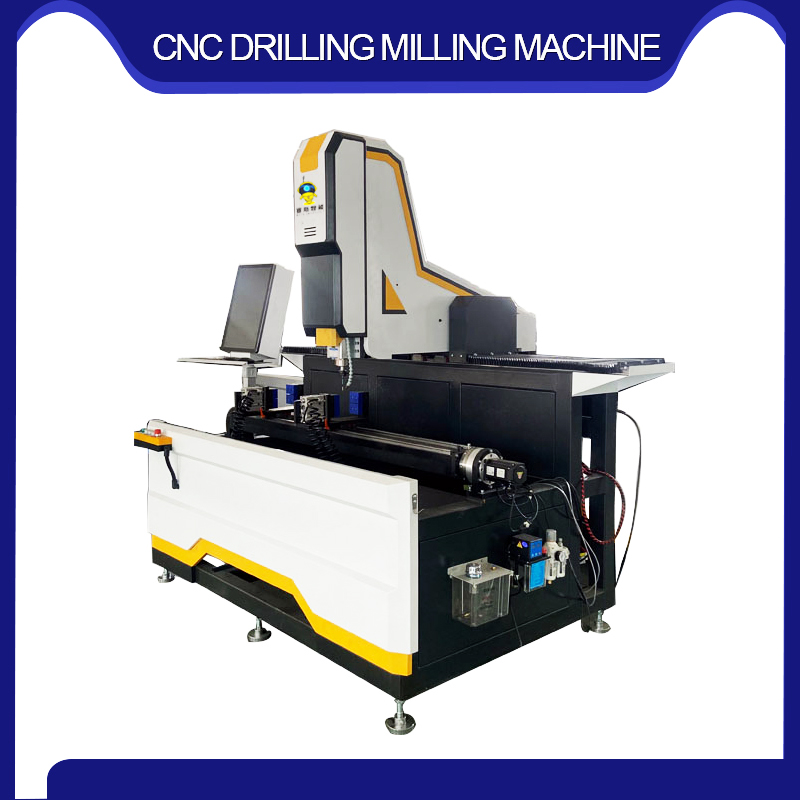

CNC DRILLING MILLING MACHINE SKX4-CNC-1500

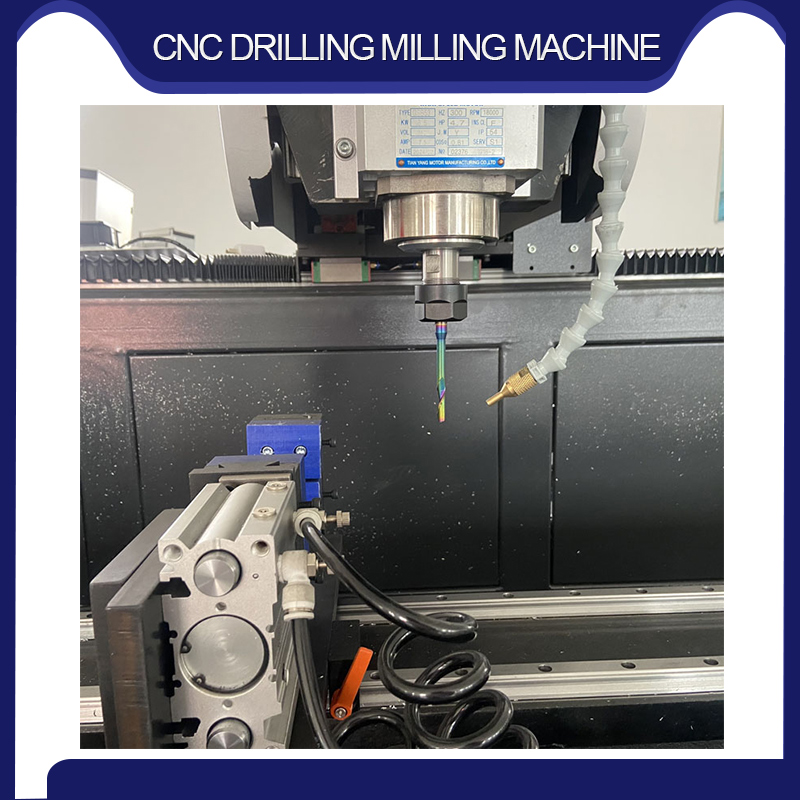

☆ spindle adopts air-cooled spindle, power 6 kw, speed 0~18000 rpm, high precision, good safety and
high reliability.

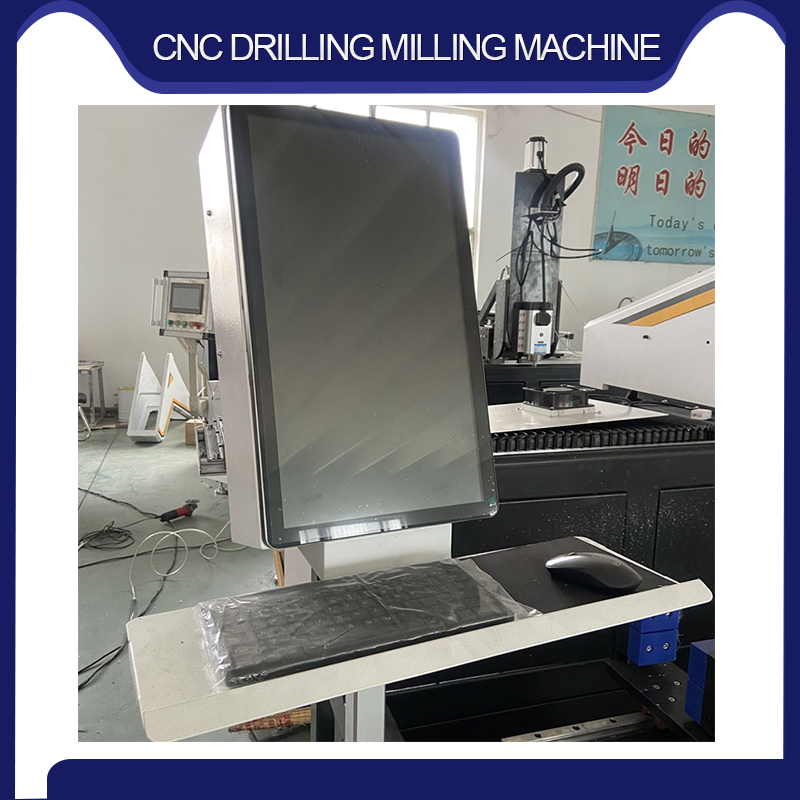

☆ adopt CNC numerical control system. Equipped with professional CAD-CAM programming software.
Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
☆ The motion pair adopts the imported guide rail, the slider, the X shaft adopts the high precision helical
gear, the helical tooth strip transmission, the Y shaft, the Z shaft adopts the high precision ball wire to carry
the transmission. Smooth transmission, effectively improve the accuracy of the whole machine.Flip the
☆Our CNC drilling milling machine table 180 degrees. -90 degrees ~0 degrees ~+90 degrees, profile clamping
can achieve three-sided processing
☆ processing deep hole (special hole), through the table flip to achieve deep hole processing,improve efficiency,
good quality.

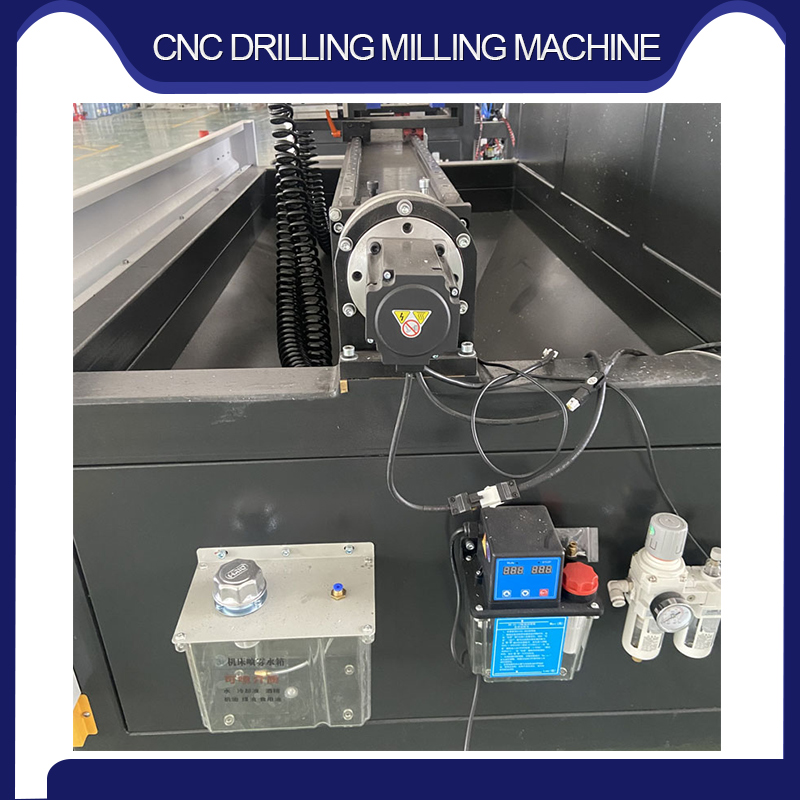

☆ manual pump oil supply system, tool system control spray cooling device.
☆ main electrical parts, circuit breakers, AC contactors are using French S chneider products.
☆ main parts of the CNC drilling milling machine tool adopt steel structure after aging treatment.
CNC Drilling Milling Machine Specification
| Power supply | 380V 50Hz |
| Total power | 6.5 Kw |
| Main shaft power | S1:3.5kw |
| Working pressure | 0.6~0.8 MPa |
| Maximum speed | rpm 18000 |
| X axis travel | mm 1500 |
| Y axis travel | mm 500 |
| Z axis travel | 350 mm |
| X axis velocity | 50000 mm/min |
| Y axis, Z axis velocity | 15,000 mm/min |
| Dimensions | 2380*2000*2200mm |
| Weight | About 950 kg |
CNC Drilling Milling Machine Manufacturer
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door
machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different
clients, and can also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,
SGS,CE certifications,excellent product design and development engineers, skilled production engineers,
experienced production management team and after-sales service that providing you with a strong guarantee.
Except our aluminum CNC double head cutting saw machine,we also have products including aluminum&uPVC
profile machining center,cnc drilling milling machine,welding machine,corner cleaning machine,corner cutting
saw machine,corner crimping machine,punching machine&drilling machine.

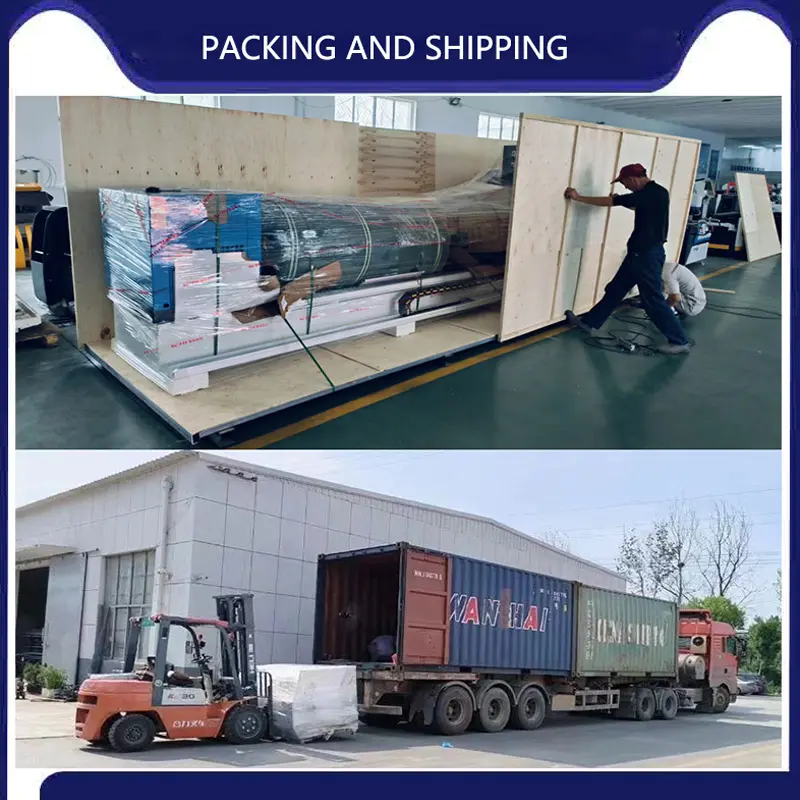

Our Aluminum CNC Drilling Milling Machine Delivery
FAQ:
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company
in china.
Q: SETH's main products?
A: Aluminum &upvc window machines: CNC cutting center, double miter saw, end milling machine,CNC milling
machine, aluminum punching machine, end milling machine, welding machine,CNC copy router and corner connector
saw, etc;
Wood window machines: wood saw, wood window frame machine,vertical & horizontal drilling machine, dovtail making
machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
We have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy
USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
