Aluminum CNC Auto Feeding Cutting Saw Machine SETHGJ3Z-CNC-550G
Ø Equipment features
☆ It is simple to operate, reliable in performance, advanced in technology and easy to maintain.

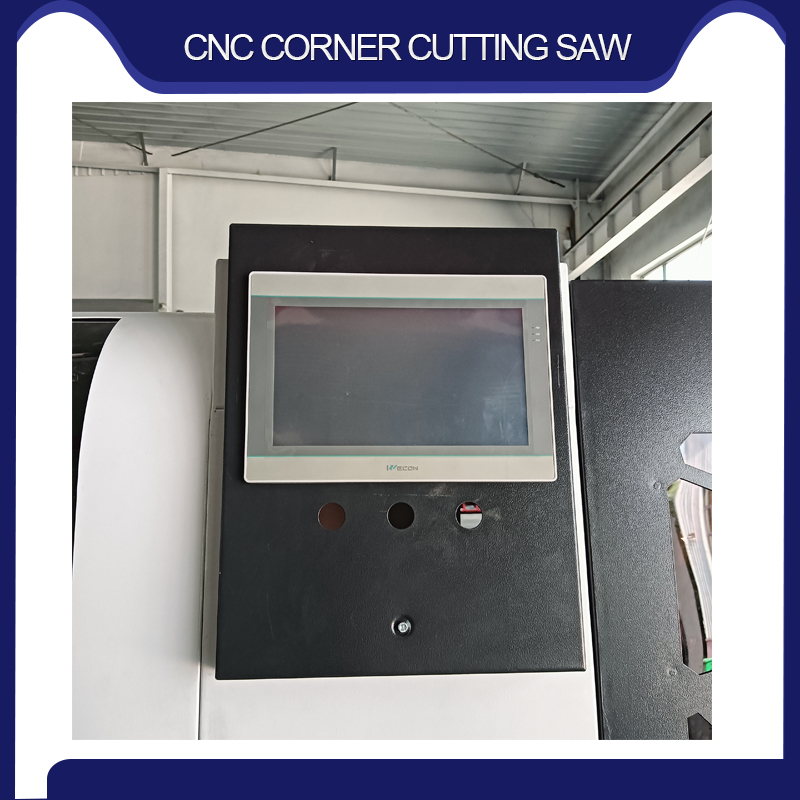

☆ It uses imported CNC control system, and the control system adopts CNC human-machine interface,
which is simple and easy to operate.
☆ The tool adopts carbide saw blade, with high cutting speed, high productivity and high processing accuracy.

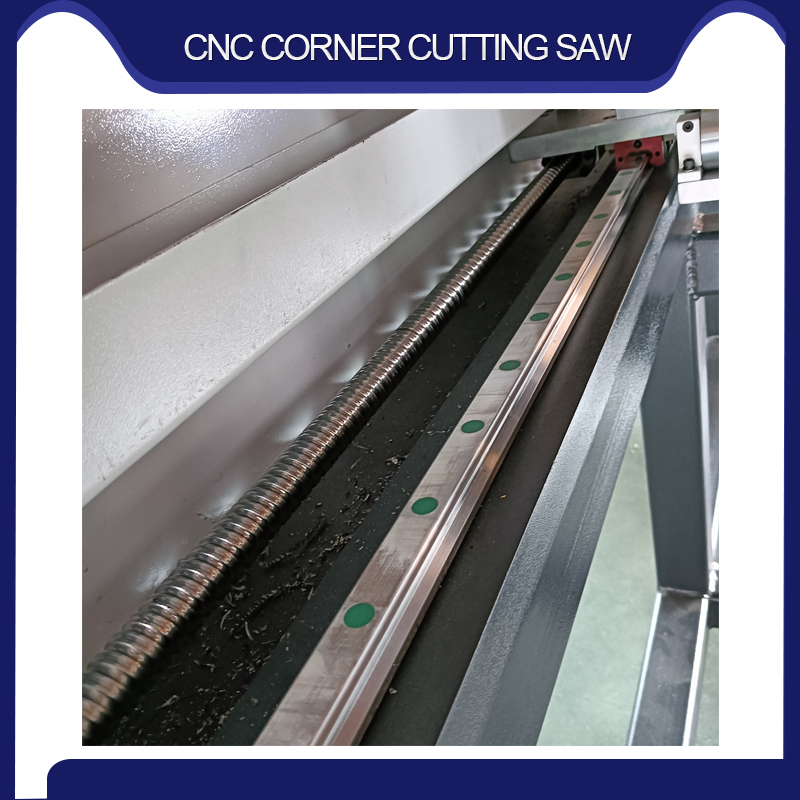

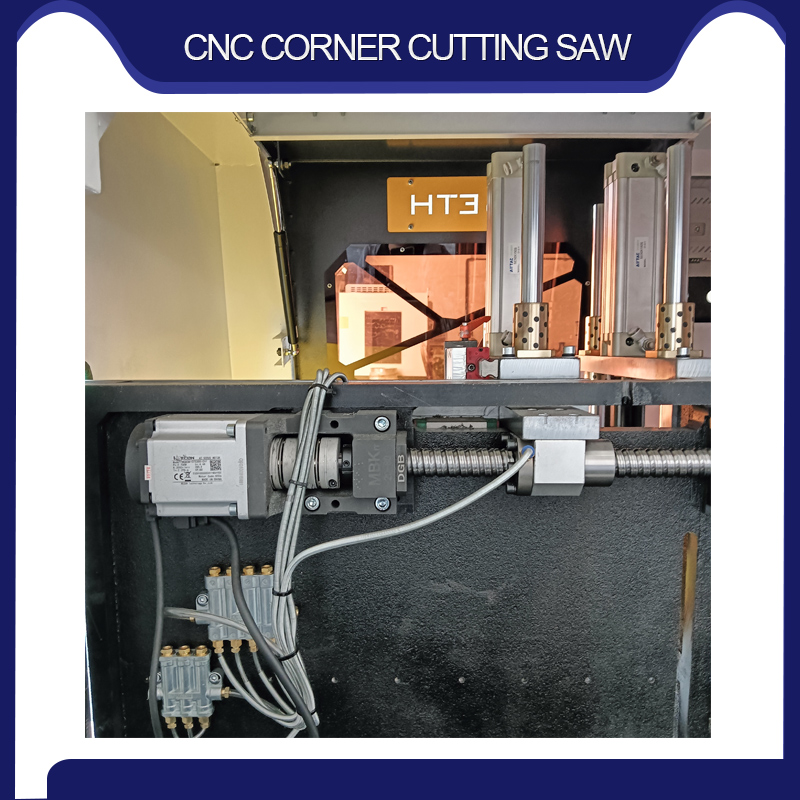

☆ The feed motion adopts servo motor screw drive, with small movement resistance and high precision.
☆ The feeding mechanism adopts CNC feeding system, which is stable, reliable and efficient.

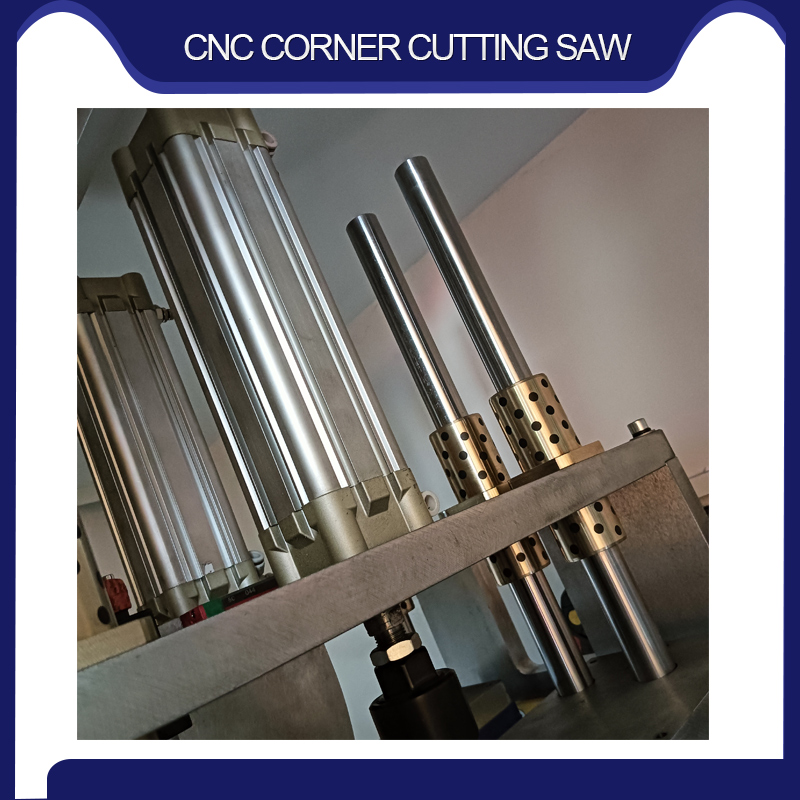

☆ High degree of automation, work clamping, sawing forward and backward are controlled by private
server system, safe, accurate and reliable.
☆ With automatic counting function, automatic alarm cutting function when there is no material.
☆ Only one clamping is required to achieve continuous cutting of 6 meters of aluminum profiles, and no
tail material processing
☆ Automatically save the number of cut sections when power is off.
☆ Use micro-spray cooling device to save processing costs.

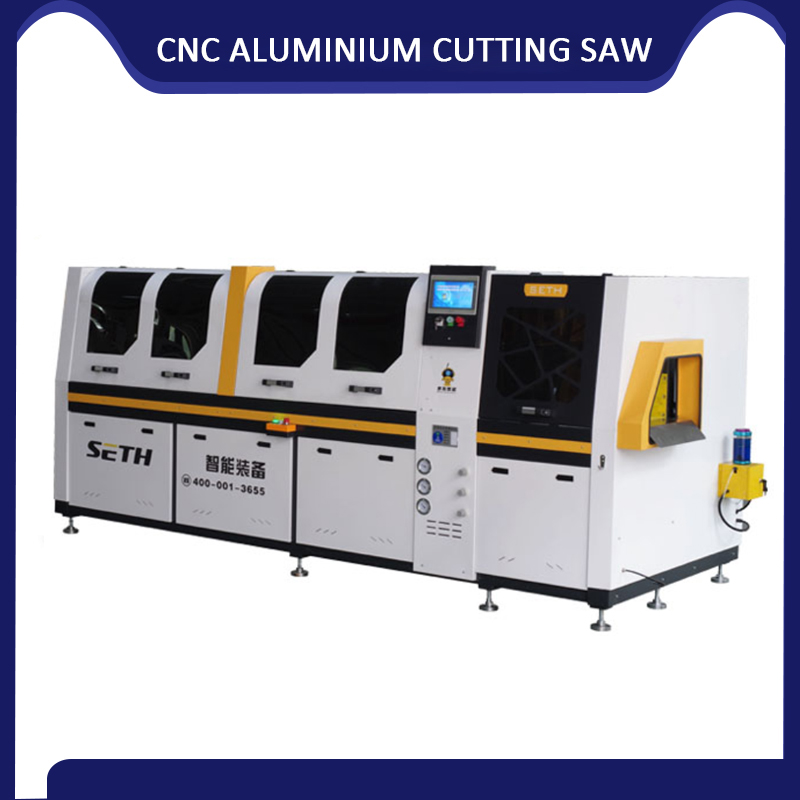

Aluminum CNC Auto Feeding Cutting Saw Machine
Aluminum CNC Auto Feeding Cutting Saw Machine Specification
| Power supply | 380V/50Hz | Total power: | 15kw permanent magnet motor | |
| Max rotary speed | 1500~4500r/min frequency conversion speed regulation | Working pressure： | 0.6～0.8MPa | |
| Automatic feeding length: | 5~3000mm | Maximum cutting width: | 320mm | |
| Cutting height: | 155mm | Saw blade specifications: | φ550× φ30×5.0mm×Z144 | |
| Saw blade feed speed: | 0-5m/min (servo feed) | Cutting length: | No restrictions when selecting manual | |
| Repetitive positioning accuracy: | ≤ 0.02mm | Cutting surface roughness: | Ra3.2μm | |
| Main machine : | 4100mm | Feeding rack : | 3000mm | |
| Cutting Accuracy: | ±0.05mm | Weight: | about 2850kg | |
| Servo motor : | 1.5kW+2*0.75kW | Air consumption : | 50L/min | |
| Cutting profile flatness: | ≤0.02mm | Cutting profile verticality: | ≤0.15mm | |
