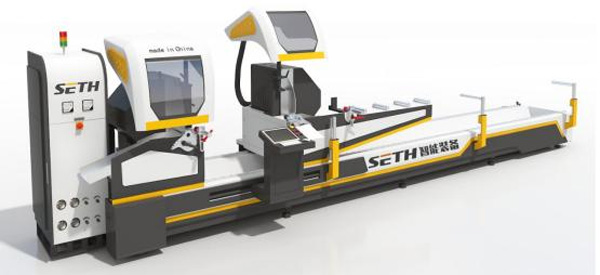

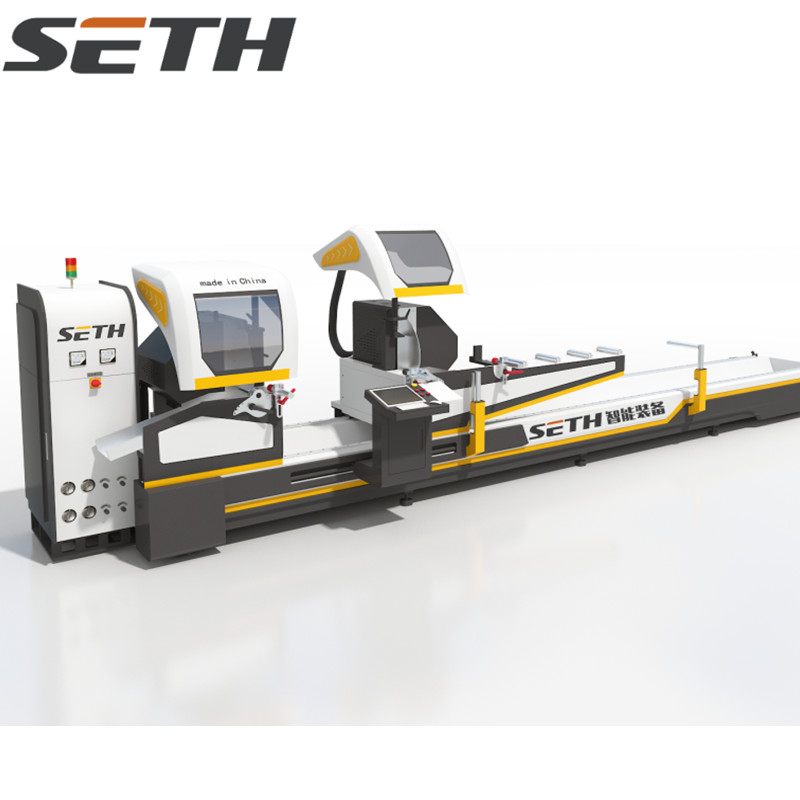

Heavy Duty CNC Double Head Precision Cutting Saw

Heavy Duty CNC Double Head Precision Cutting Saw is mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
The double-head cutting saw for aluminum profiles is a highly efficient piece of equipment for cutting aluminum profiles. It has multiple advantages, including:
High precision: The saw uses advanced technology to ensure precise cutting of aluminum profiles, resulting in high-quality finished products.
Versatility: The double-head design allows for cutting of different angles and lengths of aluminum profiles, making it a versatile tool for window and door manufacturers.
Efficiency: The saw can cut two profiles simultaneously, which greatly increases production efficiency and reduces labor costs.
Safety: The saw is equipped with safety features that prevent accidents and injuries during operation.
Durability: The saw is made of high-quality materials that are designed to withstand heavy use, ensuring long-lasting performance and durability.
Overall, the double-head cutting saw for aluminum profiles is an essential tool for manufacturers who prioritize efficiency, precision, and safety in their production processes.

Category :
CNC Cutting Saw
Browse number : ...
Release time : 2026-06-12

Consult now

Detailed Description

● Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.

● High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.

● Supports multiple data import modes：Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking, New gel, changfeng, chuangying

● Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.

●It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.

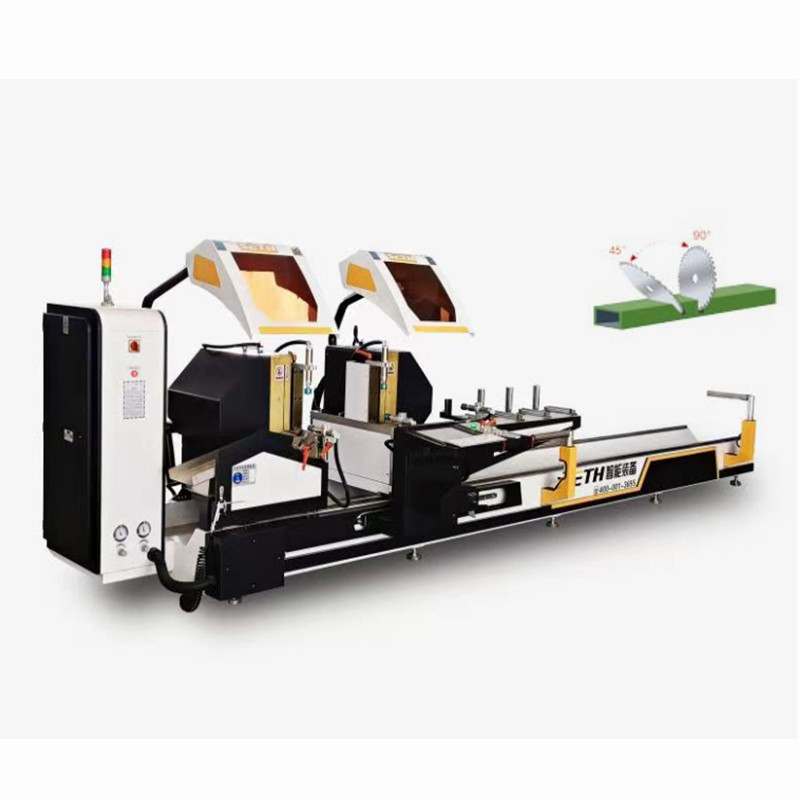

Heavy Duty CNC Double Head Precision Cutting Saw

● The latest arc cutting technology, sawing section is safer, faster and more reliable.

Main specification and technical parameter

Power supply	380v 50hz
Saw head motor	2 × 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
Air consumption	60L/min
Cutting length	Max5000mm min 280mm Short cutting function is the shortest 200mm
Cutting width	Max 150mm
Max. Cutting slope	45°150× 170mm 90°150×345mm
Max. square tube cutting	150×200mm
Cutting angle	45degree 90degree
Feeding speed	continuously viable 0-4m/min
Saw blade specification	ø500 × ø30 × 4.4 × Z120
dimension	6550× 1300× 1800 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3’
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra 12.5 μm

Item	name	Brand	Origin
1	CNC system	Delta	Taiwan
2	Computor PC	Delta	Taiwan
3	touch screen	Delta	Taiwan
4	driver	Delta	Taiwan
5	servo motor	Delta	Taiwan
6	automatic breaker	Schneider	France
7	phase sequence protection relay	Schneider	France
8	a.c. contactor	Schneider	France
9	thermal protector	Schneider	France
10	switching power supply	Schneider	France
11	relay	Schneider	France
12	Low voltage switch button	Schneider	France
13	terminal	Honeywell	USA
14	Electric motor	GMT	Shenzhen china
