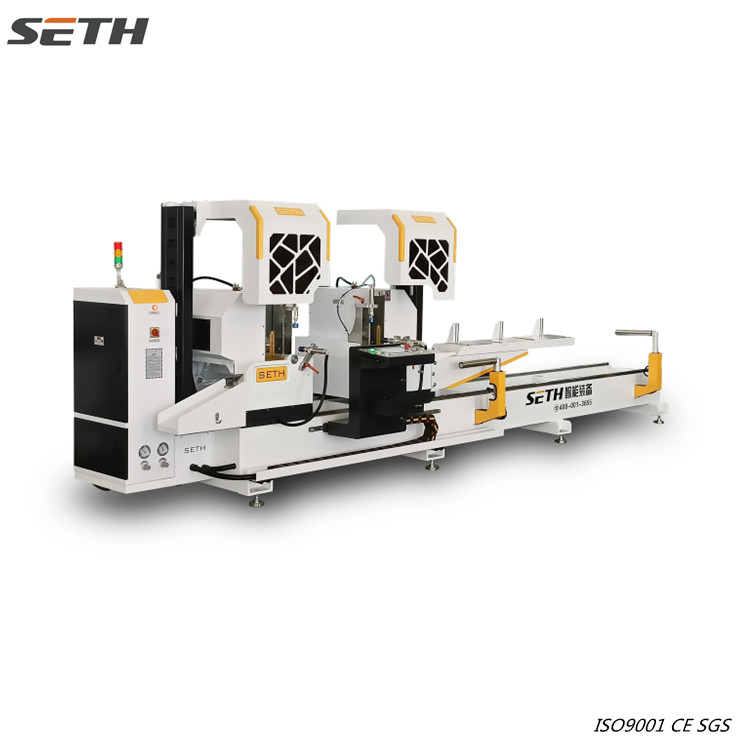

☆ especially used for slicing commercial aluminum profiles, aluminum doorways and domestic home windows, curtain wall substances, additionally may be used for percent and wood slicing and blanking of profiles.
☆ the tool adopts numerical control technology and can complete automated positioning cutting of various sizes of profiles.
☆ decided on awesome aluminum carbide saw blade, outer diameter as much as 500, high cord speed, high processing accuracy.
☆ cnc transmission adopts immoderate popular rack and pinion, immoderate transmission accuracy, accurate positioning, stable artwork.
☆ high precision spindle ensures solid rotation of noticed blade and correctly improves surface great of workpiece.
☆ gas-liquid damping cylinder to accumulate uniform feed speed law, easy movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover,
Make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover, so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.☆ Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and Windows, curtain wall materials, also can be used for PVC and wood
Cutting and blanking of profiles.
☆ The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.
☆ Selected high-quality aluminum carbide saw blade, outer diameter up to 500, high wire speed, high processing accuracy.
☆ CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.
☆ High precision spindle ensures stable rotation of saw blade and effectively improves surface quality of workpiece.
☆ Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
☆ The use of micro spray cooling device.
☆ Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover,
Make operation safer.
☆ The saw blade automatically swings into 45° and 90° angles, automatically opens and closes the protective cover, so that the operation is safer.
☆ Saw blade from back to front, saw cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.
|
Power |
380V 50HZ |
|
Saw head motor |
2×3KW/ 2840r/min |
|
Working pressure |
0.5 ~ 0.8mpa |
|
Air consumption |
60L/min |
|
Saw length |
Max4300mm MIN420mm (8200-300) |
|
Saw width |
Max 140mm |
|
Maximum cutting slope |
45°140×220mm 90°140×300mm |
|
Sawing Angle |
90°, 45° |
|
Feed speed |
stepless speed regulation 0-3m/min |
|
Saw blade specifications |
ø500 × ø30 × 4.4× Z120 |
|
Dimensions |
5800×1800×1500 mm |
|
Weight |
1650 kg |
|
Repeat constant length accuracy |
≤ 0.05mm |
|
Profile cutting Angle tolerance |
±3 ' |
|
Cutting plane flatness |
≤ 0.1m |
|
Roughness of cutting surface |
Ra12.5μm |
