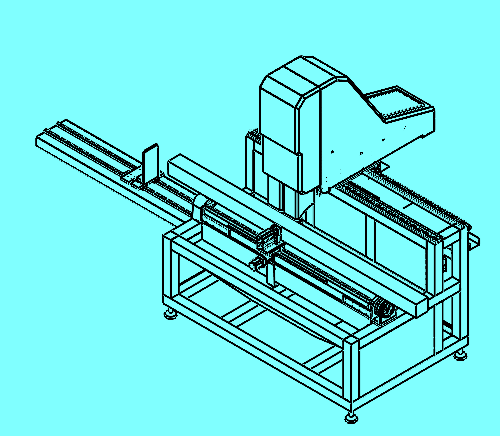

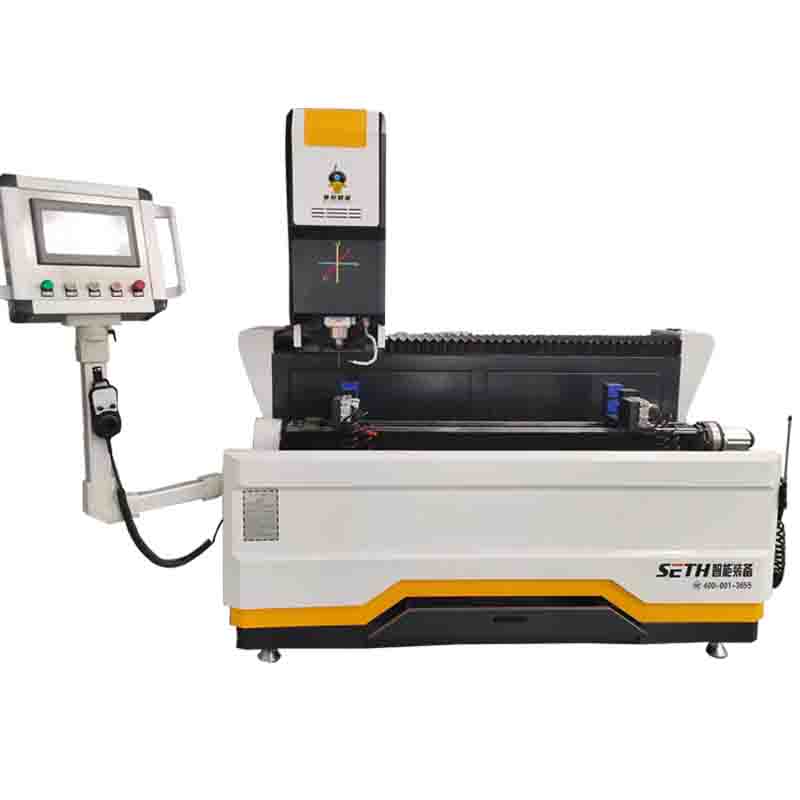

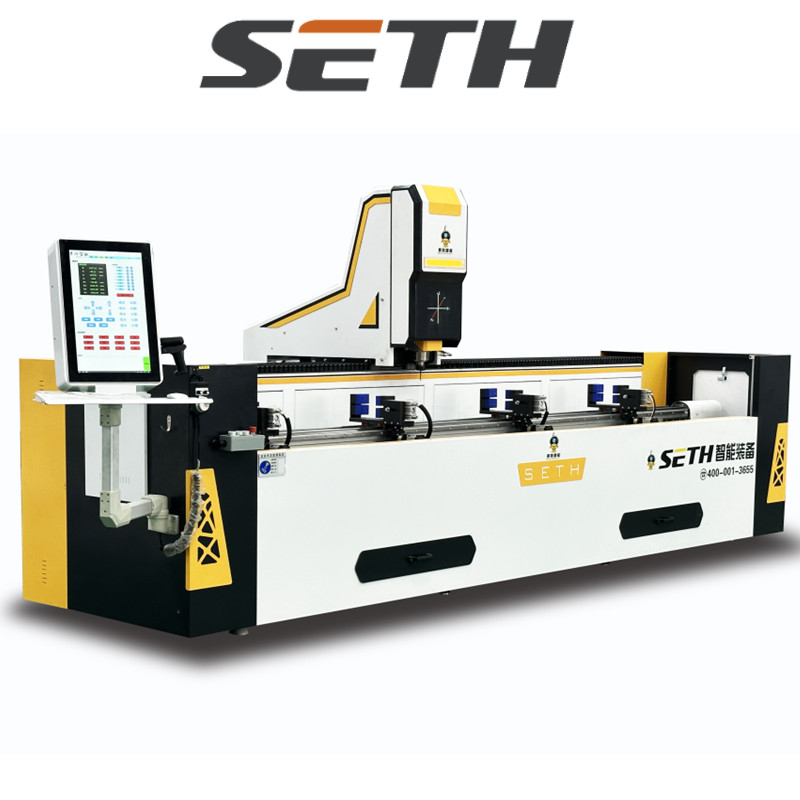

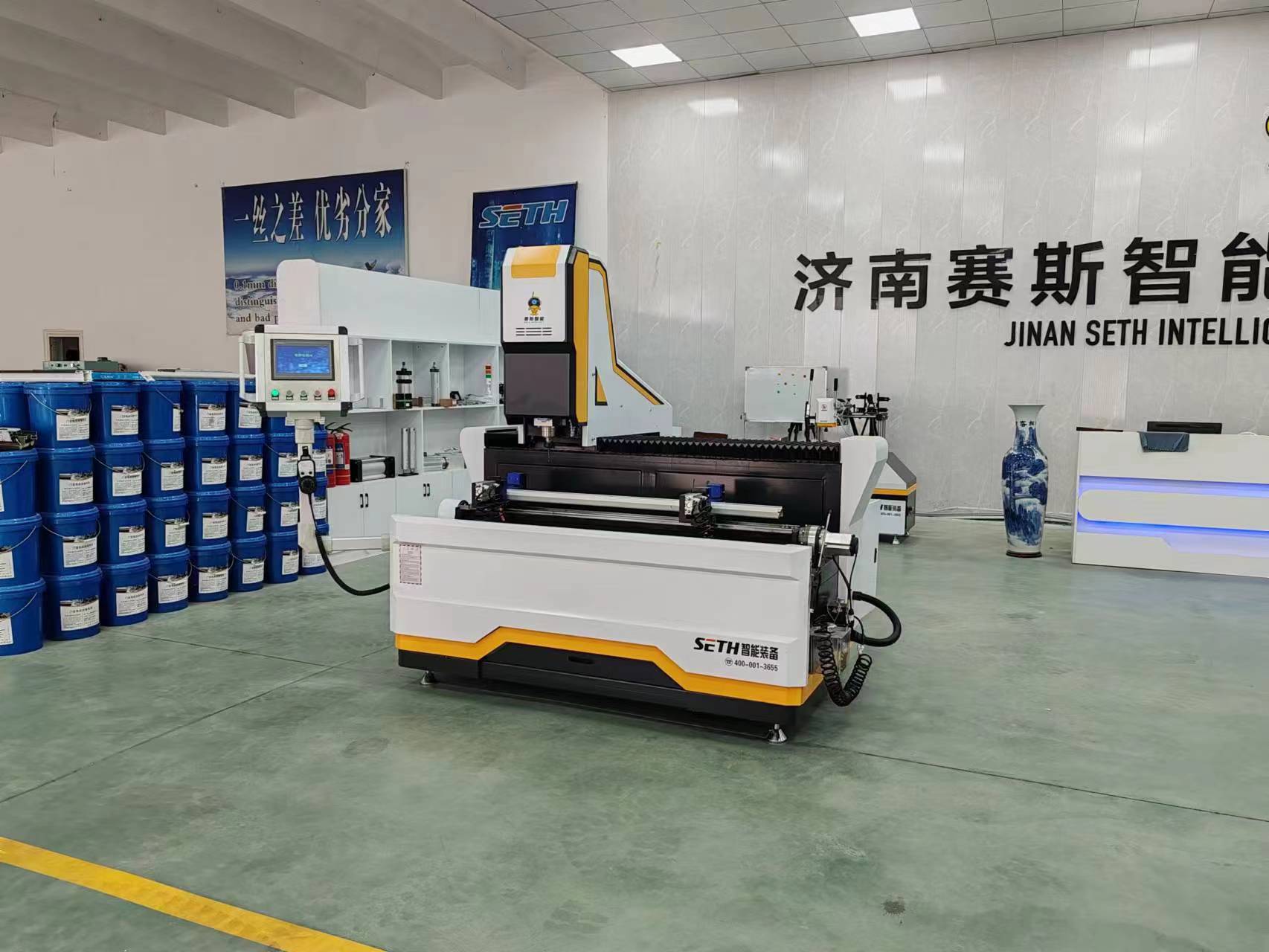

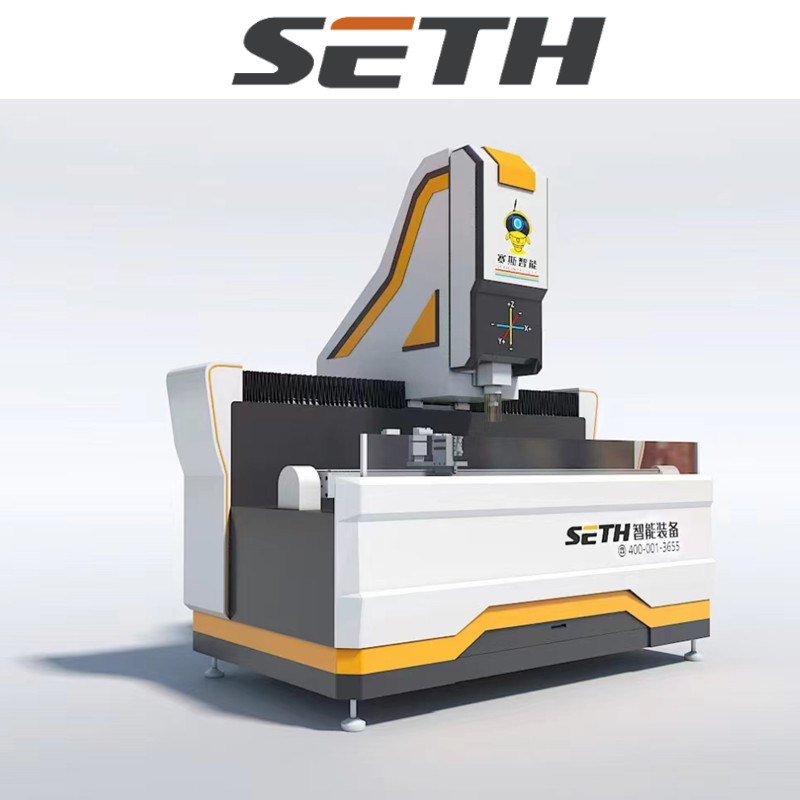

CNC drilling milling machine for aluminum profile
Model:SKX4-CNC-1500
☆ Suitable for industrial aluminum alloy profiles, doors and Windows, curtain wall aluminum alloy profiles of round holes, slot holes, keyholes, profiled holes and aluminum profiles milling, chamfering, plane engraving and other processes.
☆ The main shaft adopts air-cooled electric spindle, power 6.5kw, speed 0 ~ 18000rpm, high precision, good safety, high reliability.
☆ Using CNC numerical control system. Equipped with professional CAD-CAM programming software. Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
☆ All motion pairs are imported guide rails and sliders. X axis is driven by high-precision helical gear and helical rack. Y axis and Z axis are driven by high-precision ball screw. Smooth transmission, effectively improve the accuracy of the whole machine.
☆ Table turned 180 degrees. -90 degrees ~ 0 degrees ~ +90 degrees, the profile once clamping can achieve three side processing,processing deep through holes (shaped holes), through the table to achieve deep hole processing, improve efficiency, good quality.
☆ Adopt manual pump oil supply system, tool adopts system control spray cooling device.
☆ The main electrical parts, circuit breakers, AC contactors are made of Schneider products.
☆ The main parts of the machine tool are made of steel structure.
