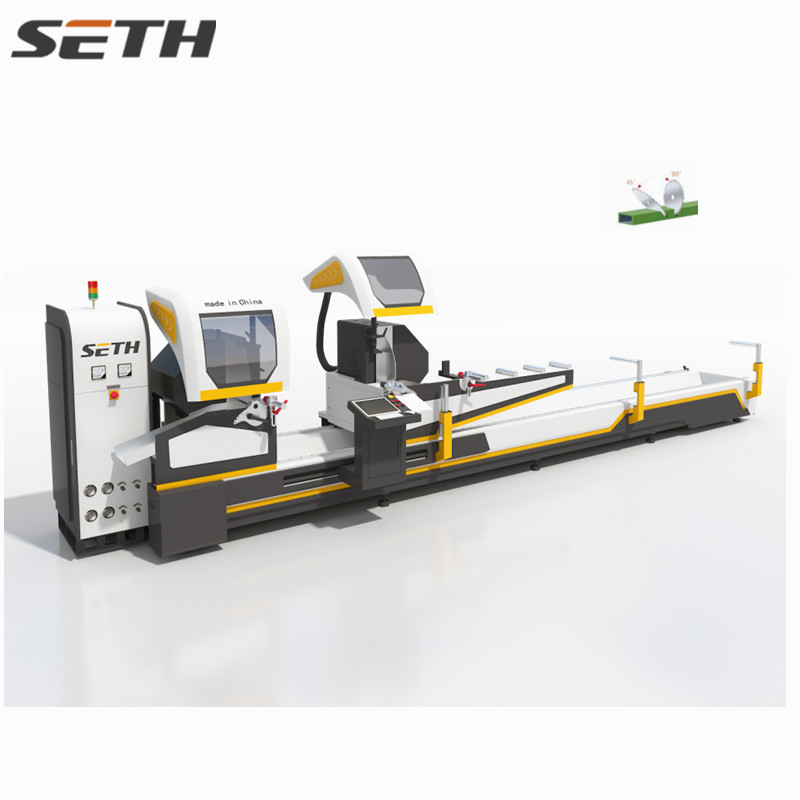

● Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
● Operation without skilled workers, solve the factory recruitment difficulties, label printing function, error prevention function: profile error beyond the range of no cutting.
● High-precision, integrated casting workbench, integrated spindle directly connected motor, integrated gas-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
● Supports multiple data import modes：Internet, LAN, U disk, Bluetooth, manual input, etc. Can realize the market common optimization software data docking, New gel, changfeng, chuangying
● Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
●It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.
● The latest arc cutting technology, sawing section is safer, faster and more reliable.
|
Power supply |
380v 50hz |
|
Saw head motor |
2× 3KW/3000r/min |
|
Working pressure |
0.6～ 0.8MPa |
|
C Air consumption |
60L/min |
|
Cutting length |
Max5000mm min 280mm(Short cutting function is the shortest 200mm) |
|
Cutting width |
Max 150mm |
|
Max. Cutting slope |
45°150×170mm 90°150×345mm |
|
Max. square tube cutting |
150×200mm |
|
Cutting angle |
45degree 90degree |
|
Feeding speed |
continuously viable 0-4m/min |
|
Saw blade specification |
ø500 × ø30 × 4.4× Z120 |
|
dimension |
6550× 1300× 1800 mm |
|
weight |
2000kgs |
|
Accuracy of repeated fixed length |
≤ 0.1mm |
|
Allowance of section cutting angle |
± 3’ |
|
Flatness of cutting profile |
≤ 0.02m |
|
Roughness of cutting profile |
Ra12.5μm |
