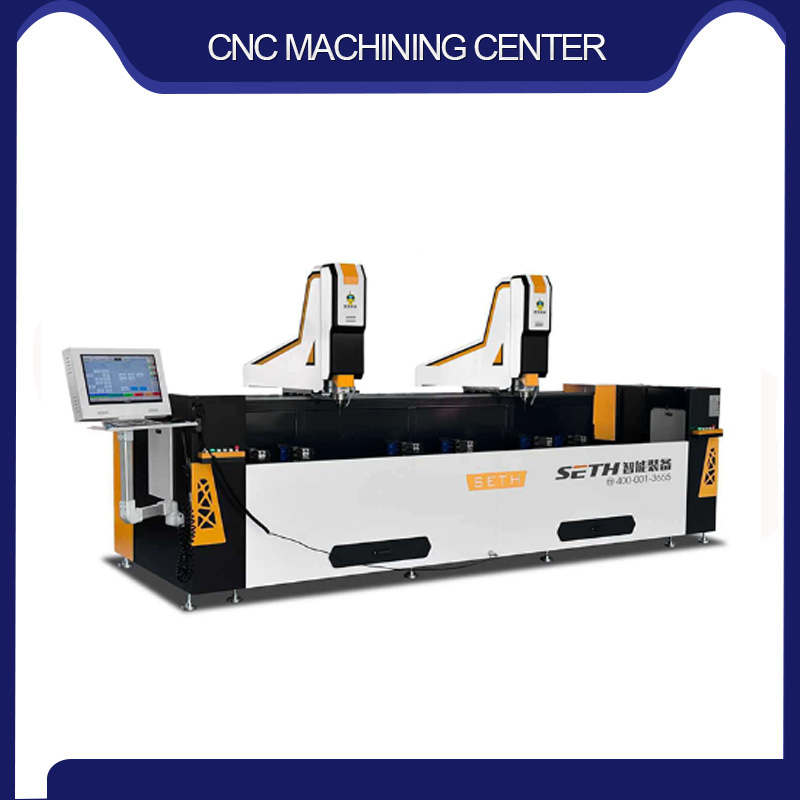

CNC Industrial Aluminum Profile Drilling Milling Machine SKX3+2-CNC-3000
☆CNC Industrial Aluminum Profile Drilling Milling Machine spindle adopts air-cooled spindle power 6.5 kw,
speed 0~18000 rpm, high precision, good safety and high reliability.

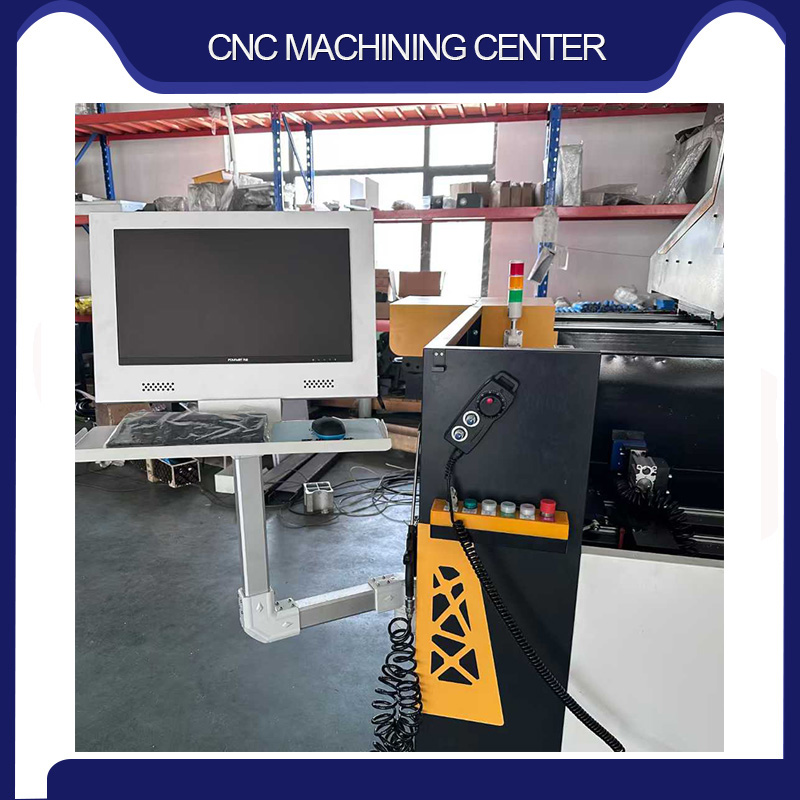

☆ adopt CNC numerical control system. Equipped with professional CAD-CAM programming software.
Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.
☆ The motion pair adopts the imported guide rail, the slider, the X shaft adopts the high precision helical gear,
the helical tooth strip transmission, the Y shaft, the Z shaft adopts the high precision ball wire to carry the transmission.
Smooth transmission, effectively improve the flip accuracy of the whole machine.
☆ table 180 degrees. -90 degrees ~0 degrees ~+90 degrees, profile clamping can achieve three-sided processing

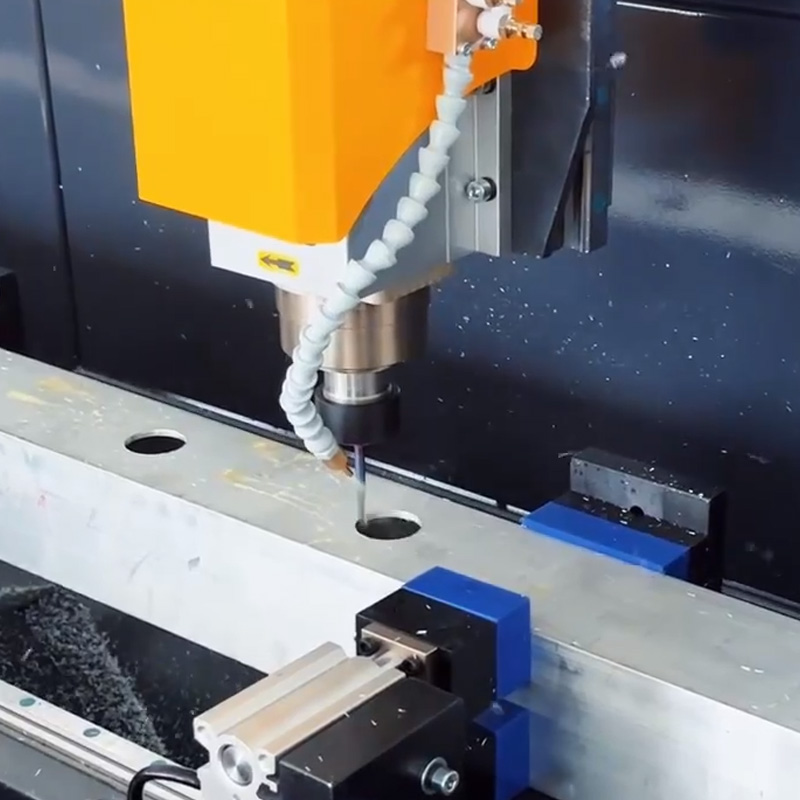

☆ processing deep hole (special hole), through the table flip to achieve deep hole processing,improve efficiency, good quality.
☆ manual pump oil supply system, tool system control spray cooling device.
☆ main electrical parts, circuit breakers, AC contactors are using French S chneider products.
☆ main parts of the machine tool adopt steel structure after aging treatment.

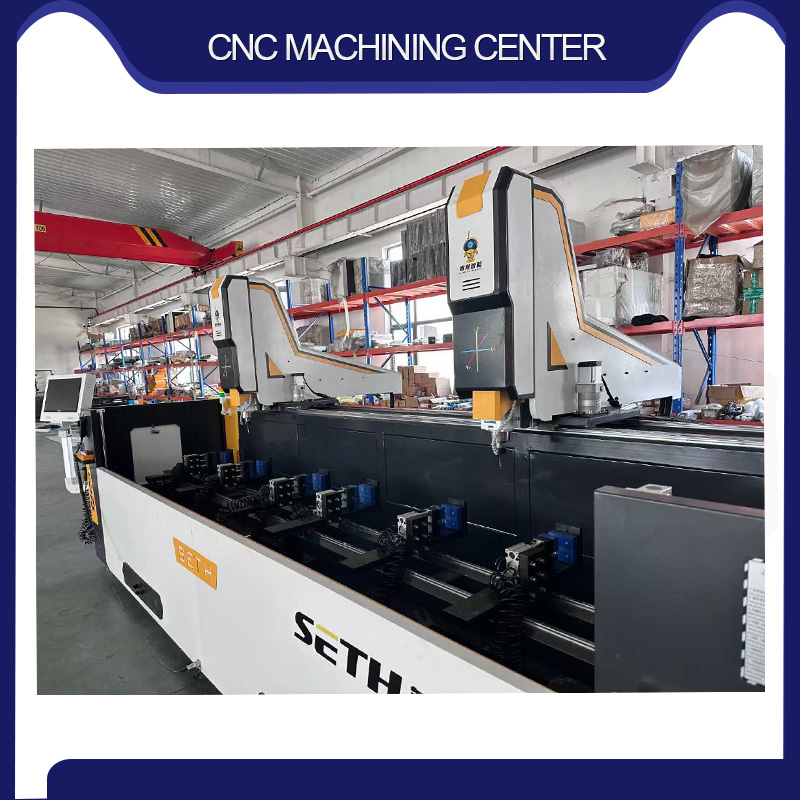

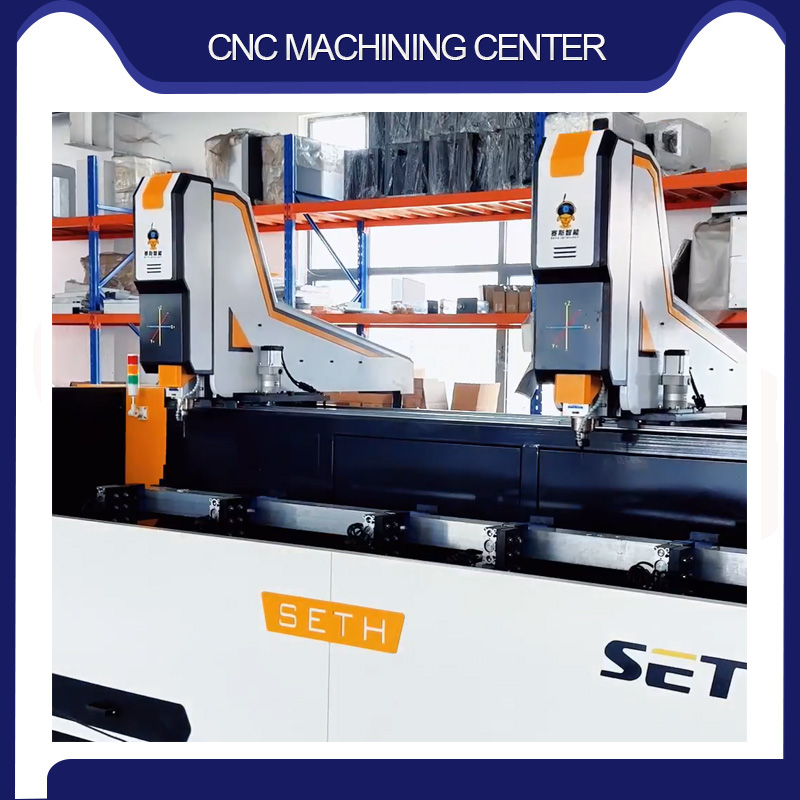

CNC Industrial Aluminum Profile Drilling Milling Machine Details
CNC Industrial Aluminum Profile Drilling Milling Machine Specification
| Power supply | 380V 50Hz |
| Total power | 13 Kw |
| Main shaft power | S1:6.5kw S2:6.5kw |
| Working pressure | 0.6~0.8 MPa |
| Maximum speed | rpm 18000 |
| X axis travel | mm 3000 |
| Y axis travel | mm 500 |
| Z axis travel | 350 mm |
| X axis velocity | 50000 mm/min |
| Y axis, Z axis velocity | 15,000 mm/min |
| Dimensions | 5300x2200x2500mm |
| Weight | About 2200 kg |
