Product Center

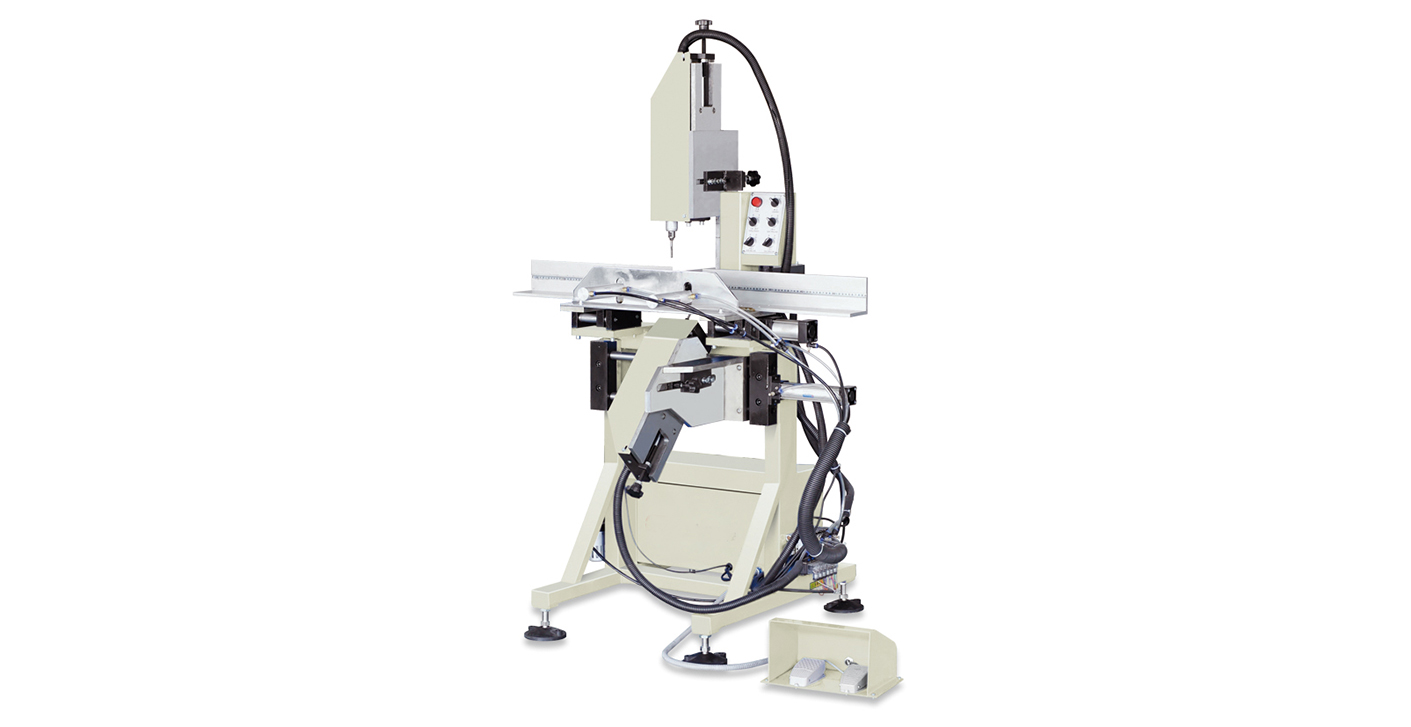

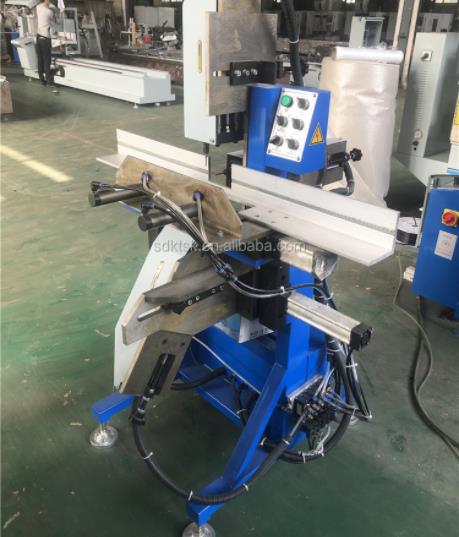

1. used for 45° glass glazing bead cutting and the perspective milling and lowering.
2. one time ought to cutting portions of glass glazing bead.
3. with degree rulers, it can processing the glazing bead consistent with the desired length as a way to ensure the precision of the processing length and cast off the fan frame meeting blunders.
4. four portions observed blade ensure specific lowering, double lowering one each surrender to mill the hook foot.
5. Vertical clamping device and special designed cutting jig ensure stable positioning.
6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead according to need.

|
Parameter |
|
|
Air Pressure |
0.4~0.7MPa |
|
Air consumption |
80L/min |
|
Input Voltage |
380V 50~60Hz or As Customer need |
|
Input Power |
2*0. 75Kw |
|
Cutting range |
320-1800mm |
|
Cutting Width |
120mm |
|
Cutting profile height |
29mm |
|
Overall size |
1900*700*1350 mm |
|
Weight |
300kg |
